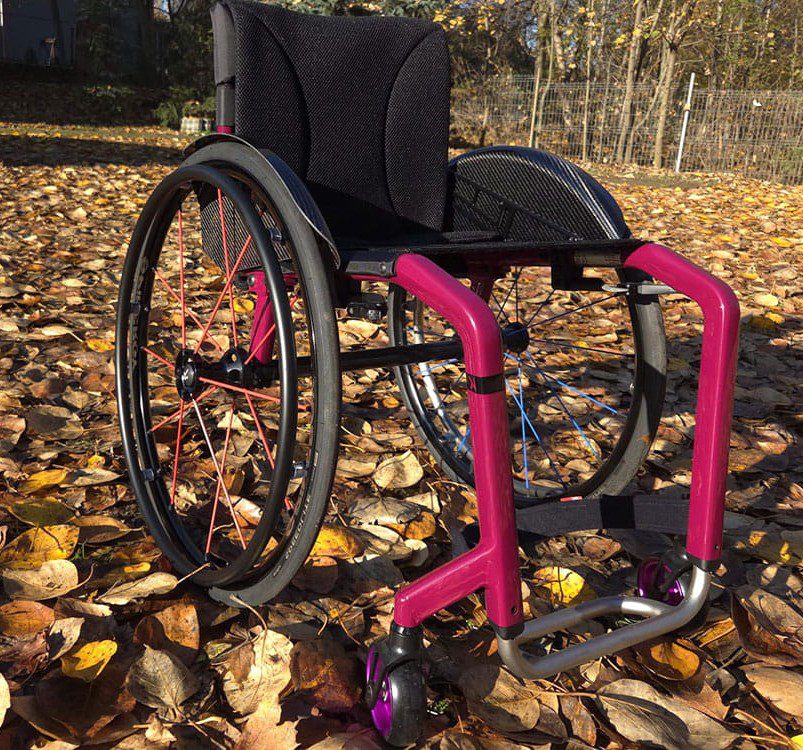

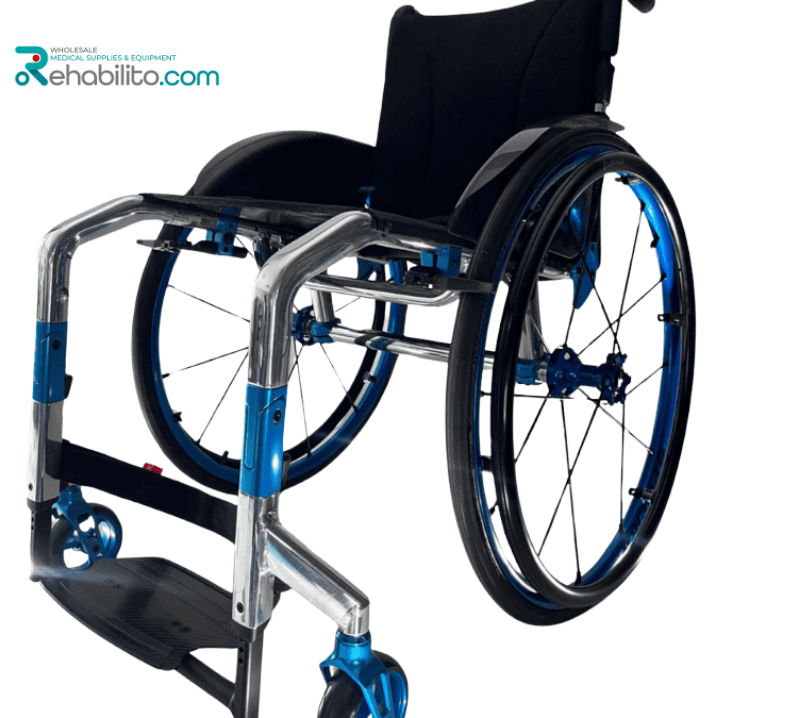

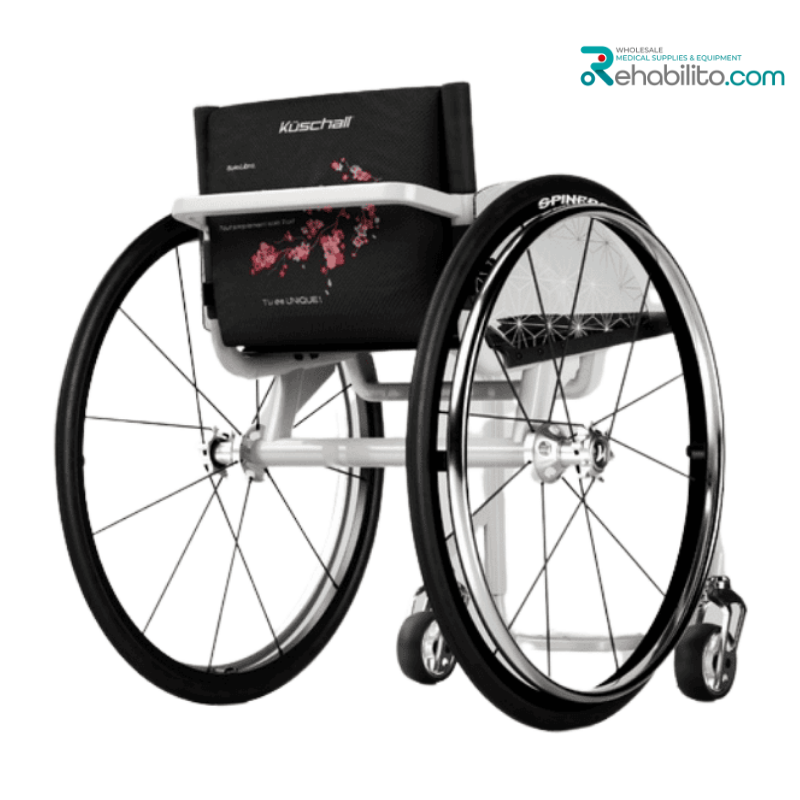

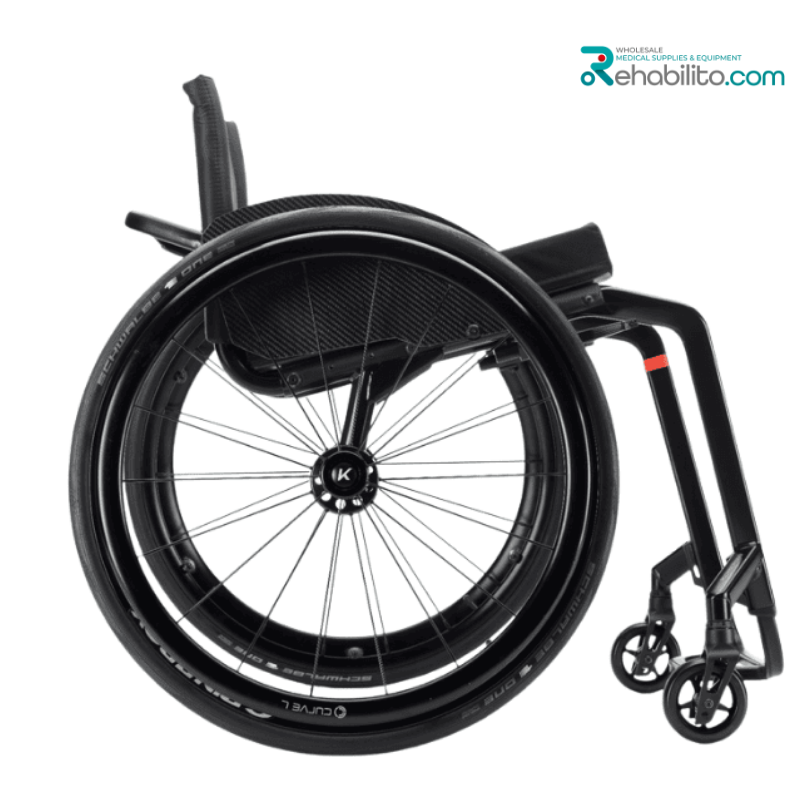

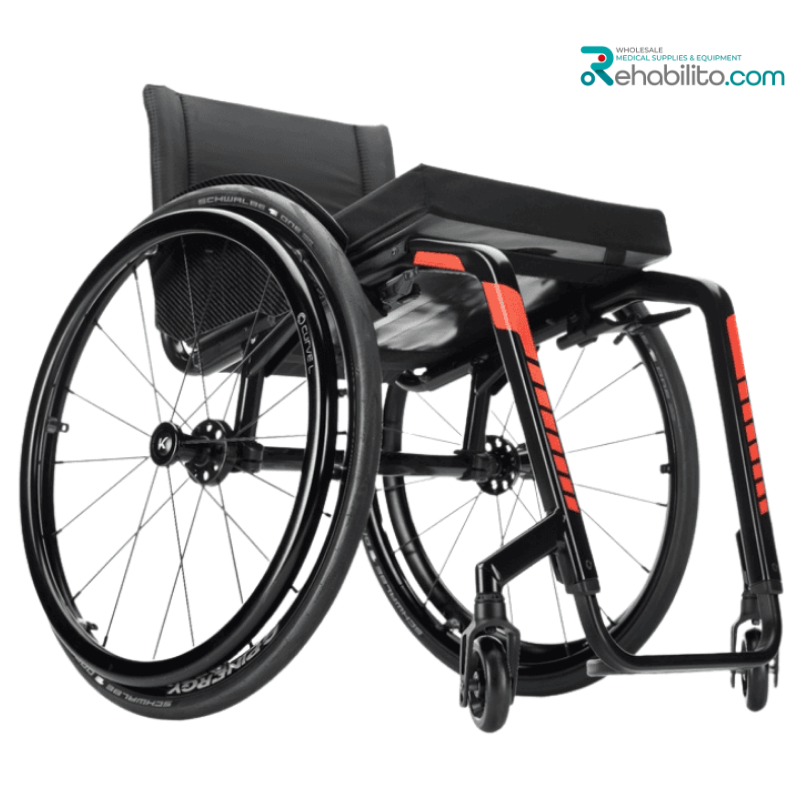

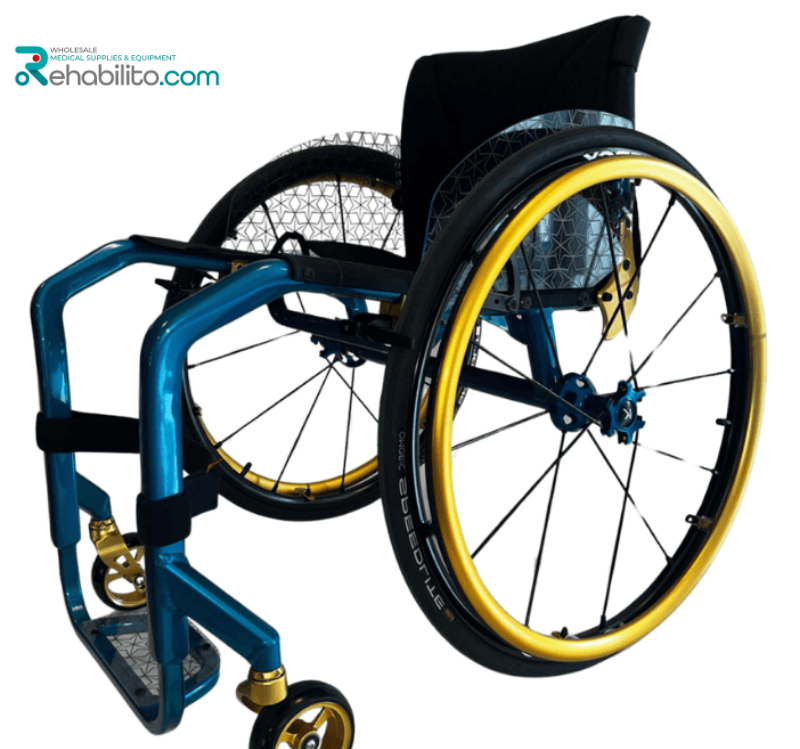

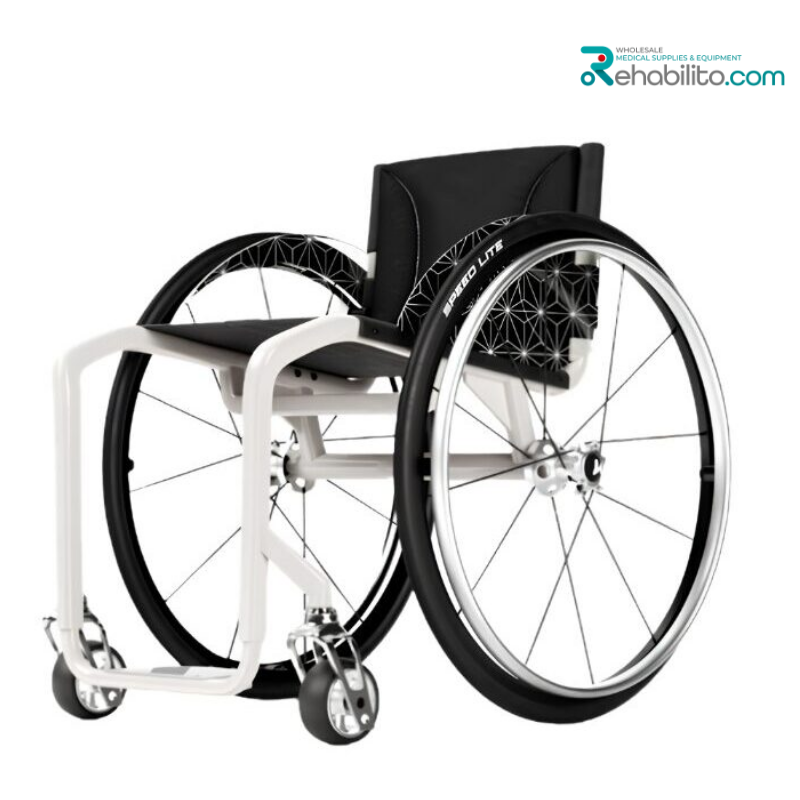

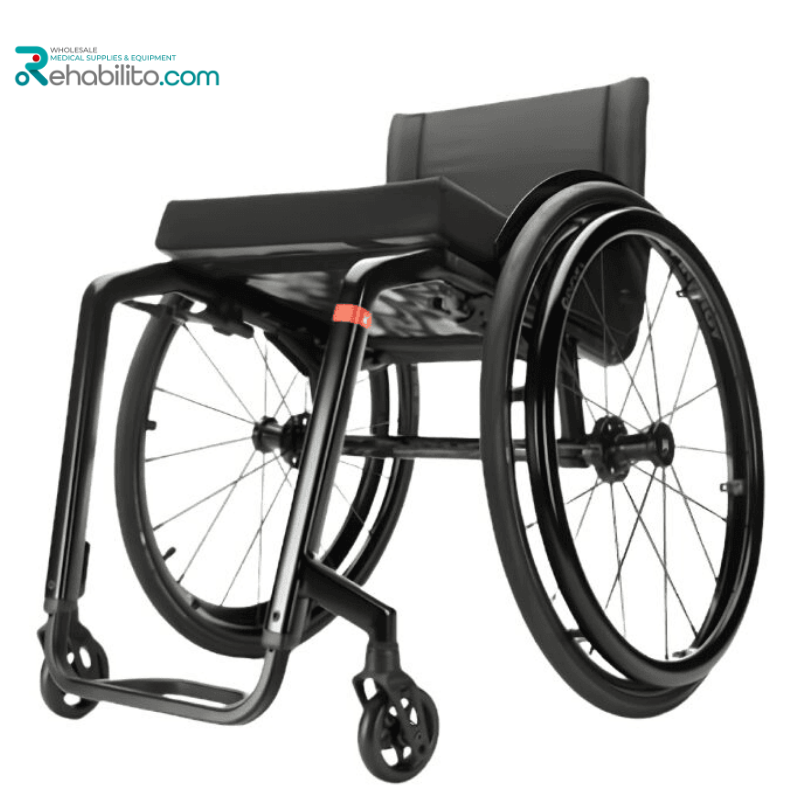

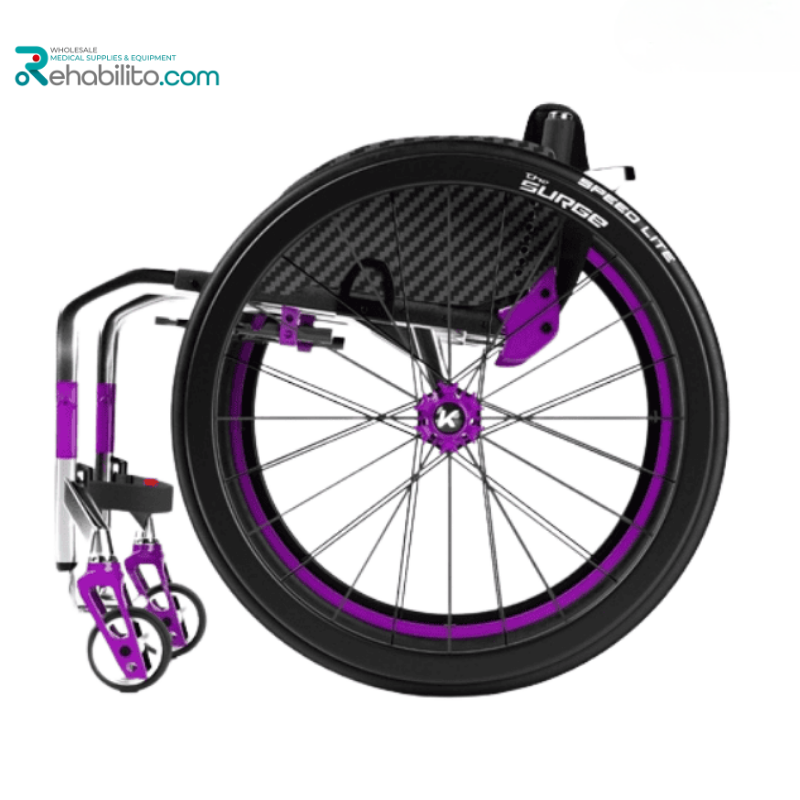

Active Manual Wheelchair The KSL Kuschall
4190,00 €
Ultra-lightweight and durable active wheelchair with a rigid frame. A wide range of accessories allows full customization of the wheelchair to meet the individual needs of the user.
- Description
- Additional information
- Reviews (0)
Description
Product Features:
- Rigid, hydroformed frame
- Lightweight, compact design
- Made of durable aluminium and corrosion-resistant carbon fibre

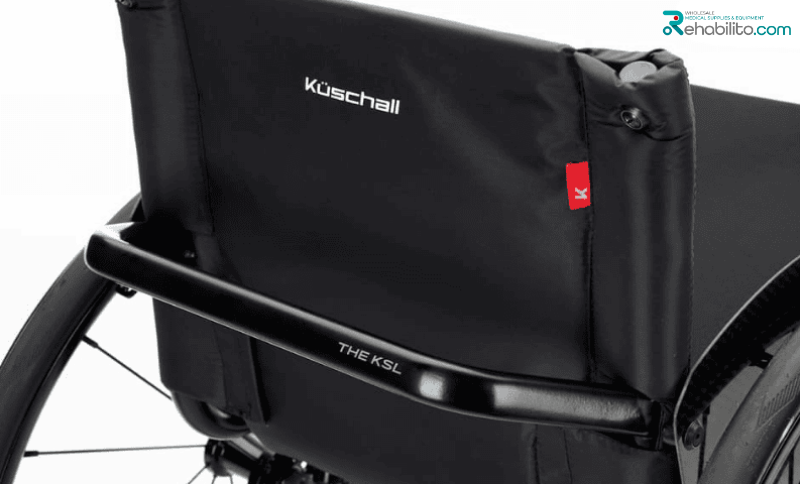

- Fixed or folding backrest
Colour Range:
 |
 |
|---|
Indications:
- Paralysis
- Limb injuries or deformities
- Limb loss
- Joint injuries or stiffness
- Other conditions limiting mobility
Standard Equipment:
- Frame angle relative to the ground: 75°
- Ergonomic hand rims
- Standard backrest upholstery
- Without push handles / Fixed push handles
- Standard seat upholstery with one soft Velcro strap in the centre

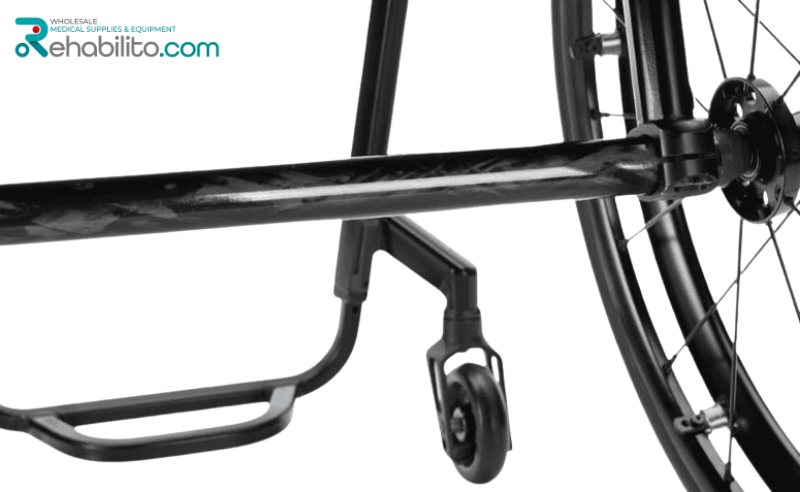

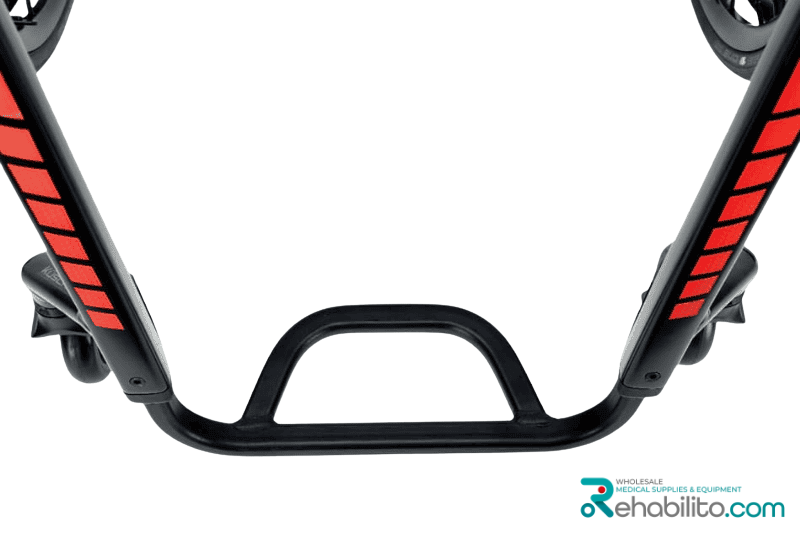

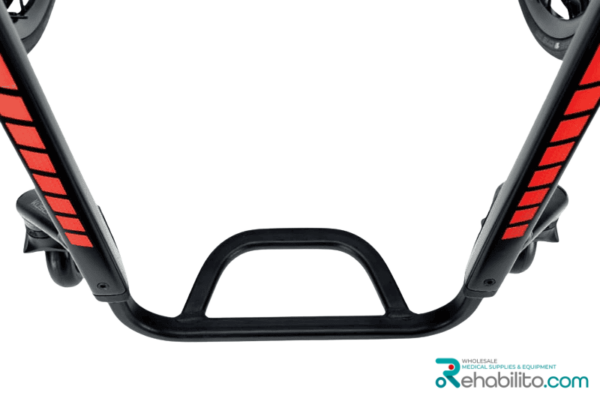

- Fixed tubular footrest
- Calf strap mounted on the frame
- Straight side guards
- Puncture-resistant inner tube protection
- Push-to-lock brakes with curved PUSH lever
Optional Equipment:
- Positioning and pressure-relief package
- Aero backrest upholstery with strap adjustment
- Folding push handles
- Integrated height-adjustable push handles
- Standard seat upholstery with one soft Velcro strap and two hard Velcro straps
- Carbon footrest with angle adjustment
- Calf strap mounted on fork supports
- Contoured side guards
- Quick-release axles for tetra users
- Ceramic bearings for rear wheels
- Front frame protectors
- Pump
- Tool set
- Wheel bag
- 24″ off-road wheels with bag
- Calf strap
- Travel bag
- Aluminium ramp
- Transfer board
Technical specifications:
| Seat width | 34 – 44 cm (in 2 cm increments) |
| Wheelchair width | Seat width + 17 cm |
| Seat depth | 38.5 – 48.5 cm (in 2.5 cm increments) |
| Front seat-to-floor height | 45 – 53 cm (in 1 cm increments) |
| Rear seat-to-floor height | 40 – 48 cm (in 1 cm increments) |
| Wheelchair height | 65 – 120 cm |

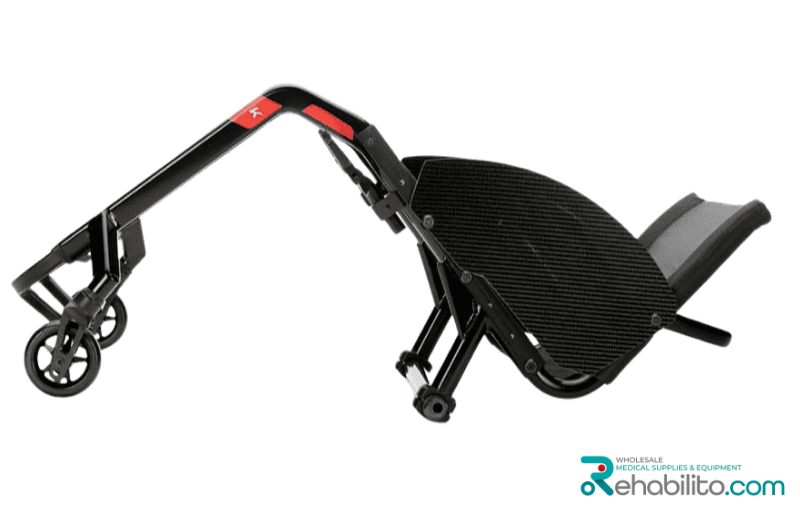

| Folded height | 60 – 71 cm |
| Backrest height | 27 – 42 cm (in 1.5 cm increments) |
| Backrest angle | 74 | 78 | 82 | 86 | 90° |
| Front wheel size | 3 | 4 | 5″ |
| Rear wheel size | 24 | 25″ |
| Wheelchair weight | 6.8 kg |
| Transport weight | 4.3 kg |
| Max. user weight | 100 kg |
*Permissible dimensional tolerance: ±10 mm.
Documents:
The price includes the equipment in its basic version. If you choose additional options, please contact the office for details.
Additional information
| Manufacturer | |
|---|---|
| Material | Aluminium, Carbon fiber |
| Front wheels | Solid |
| Rear wheels | Pneumatic |
