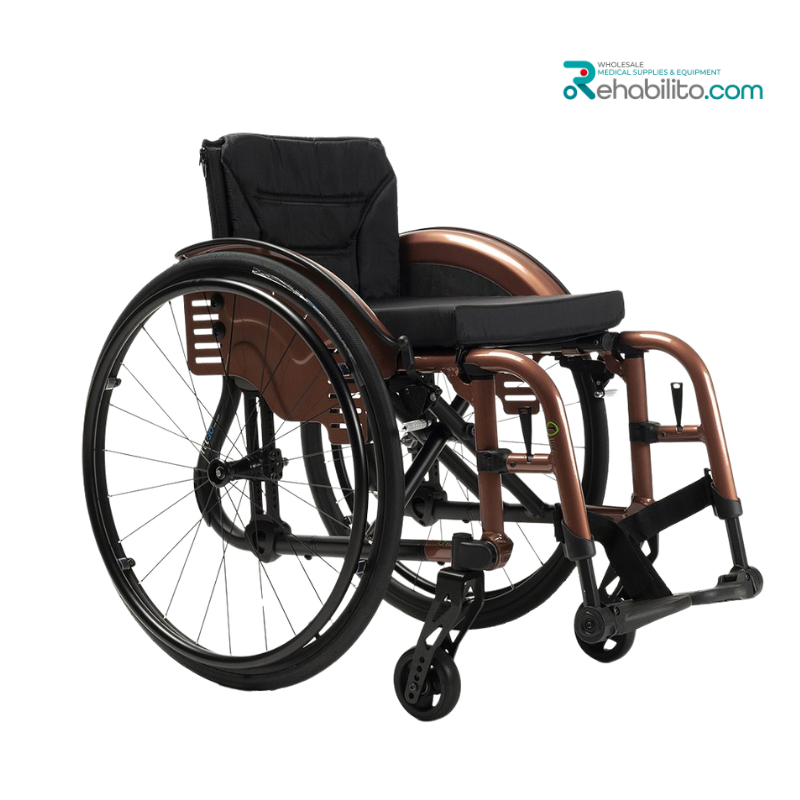

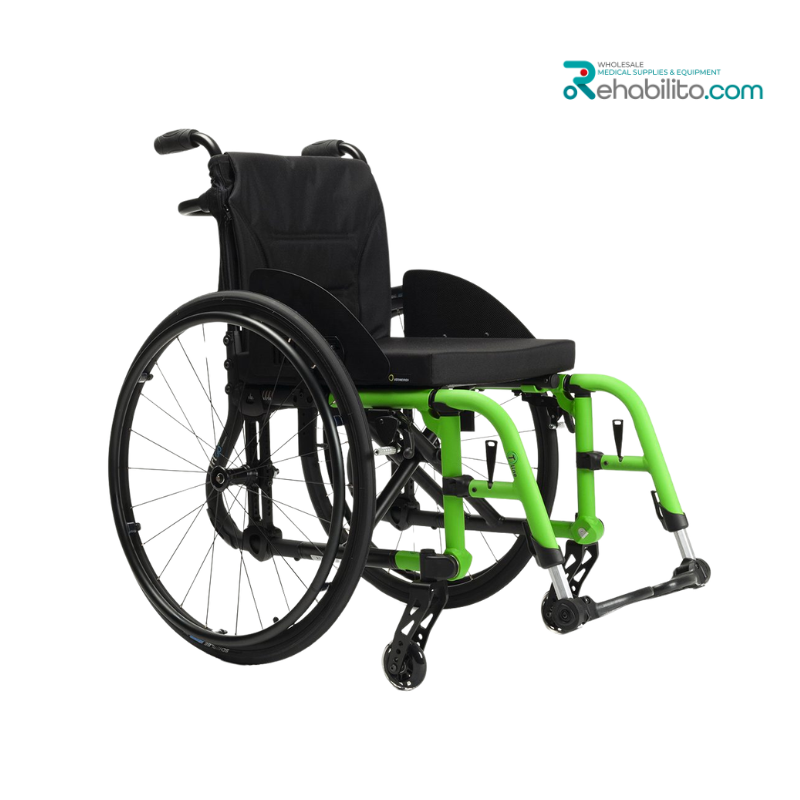

Active wheelchair for children TRIGO T Vermeiren
990,00 €
This is a medical device. Use it according to the instructions for use or the label.
Product Features:
-
- Durable, lightweight aluminium construction
-
- Adjustable seat and backrest, including seat width (30–50 cm), seat depth (32–50 cm), and seat angle (0–12°)
-

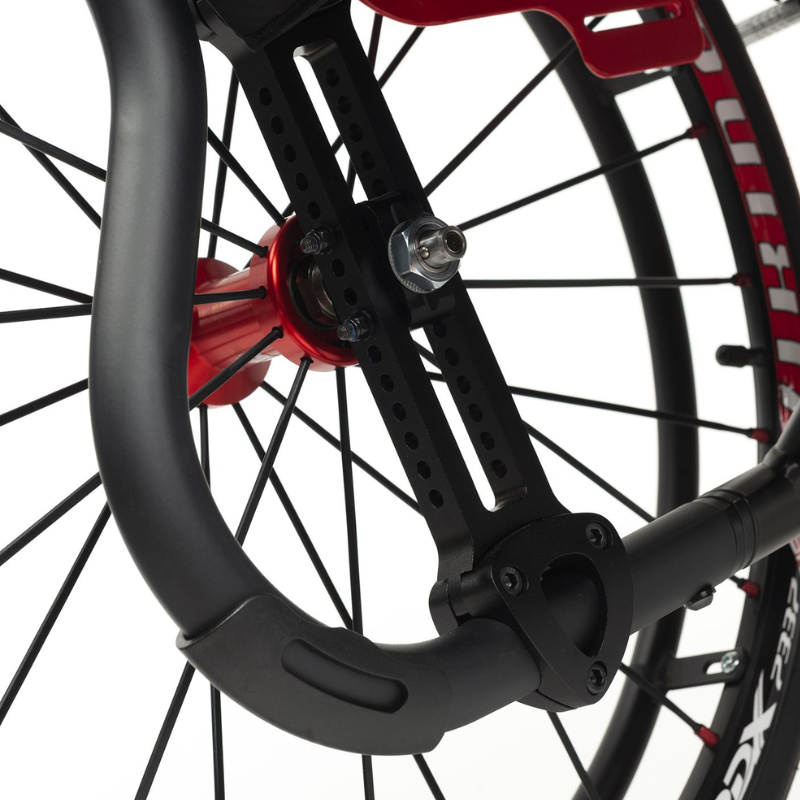

- Adjustable centre of gravity and rear wheel camber angle (0–6°)
-
- Removable footrests and rear wheels for easier transfers, transport, and storage
-
- Various wheel sizes available
-
- Folding design for easier transport and storage
Standard Equipment:
-
- Straight aluminium side guards permanently attached to the frame
-
- Removable two-piece footplate
-
- Footrests angled at 70° | 80° | 90°
-
- Rigid frame
-
- Tension-adjustable backrest upholstery
-
- Tension-adjustable seat upholstery
-

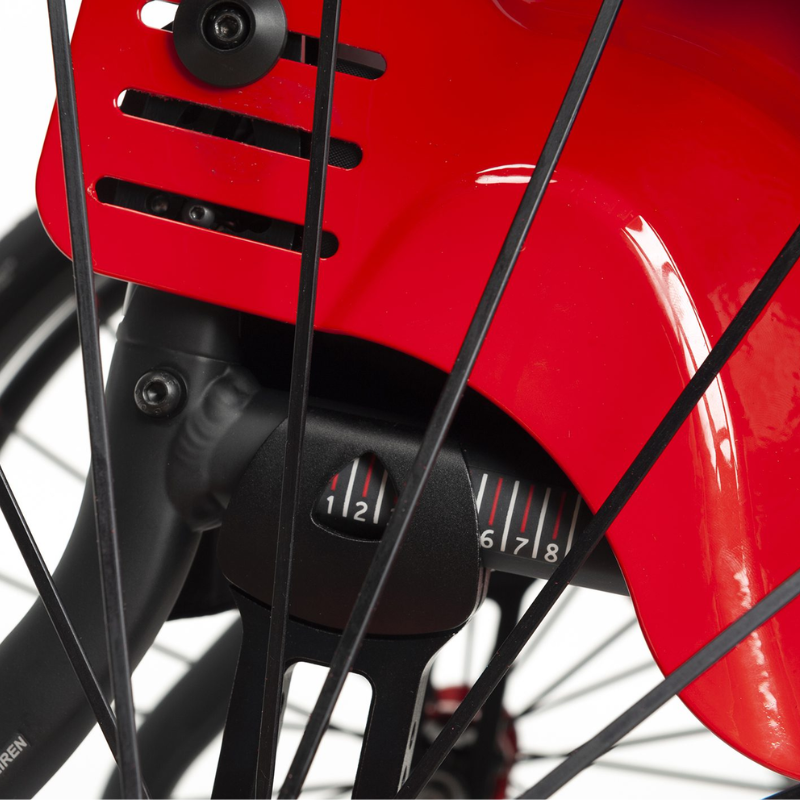

- Camber
-
- Push/pull brakes
Optional Equipment:
-

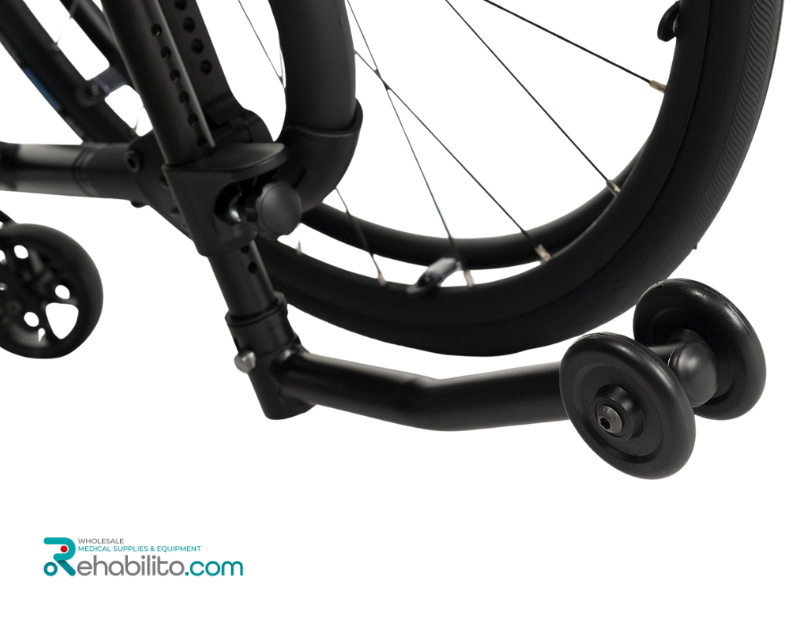

- Anti-tip bars
-

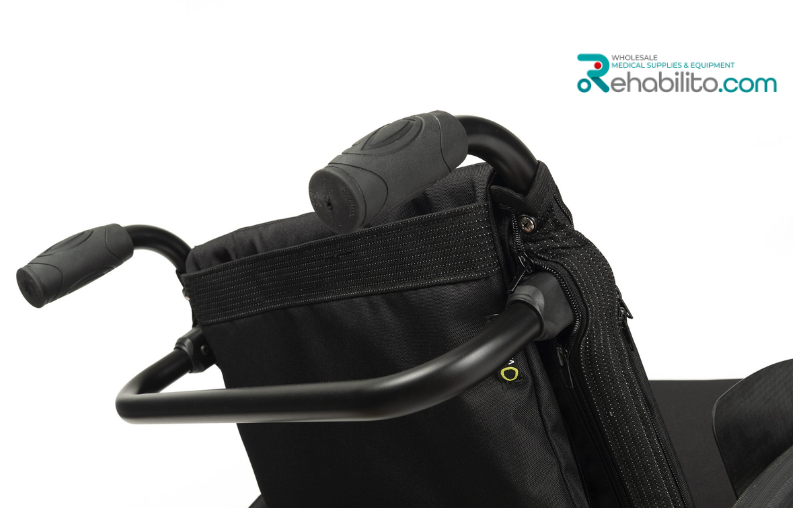

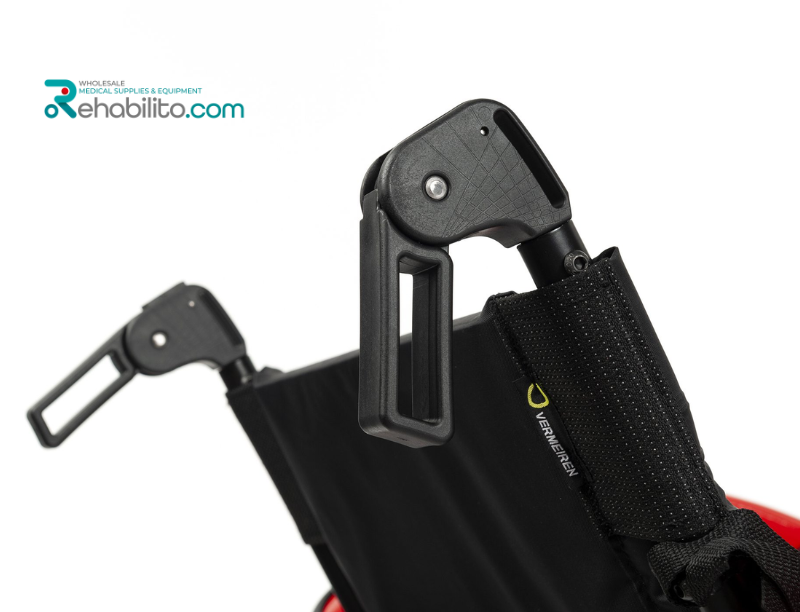

- Attendant push handles
-

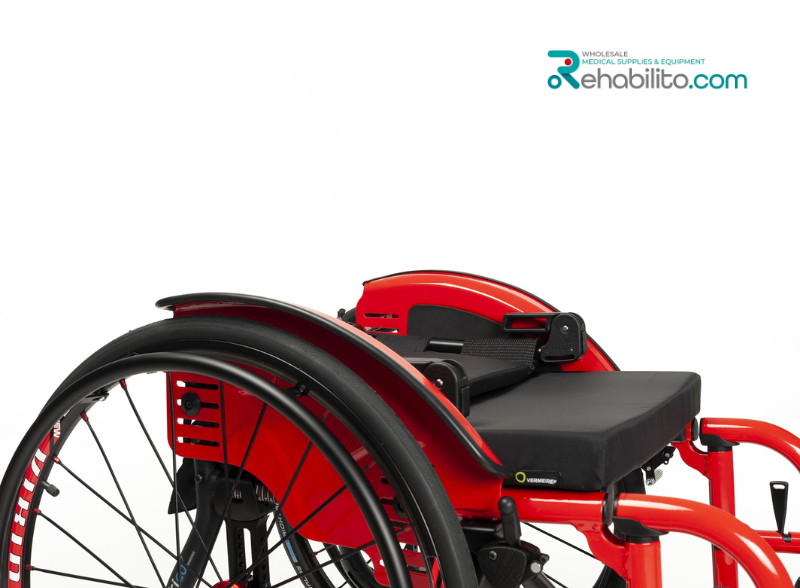

- Curved side guard (mudguard)
-
- Flip-back tubular armrests
-
- One-piece tubular footrest / footplate
-
- Neoprene ankle straps
-
- Angle-adjustable / folding backrest
-
- CORDURA backrest cushion
-
- VIC AIR® ANATOMIC BACK air-cell pressure-relief cushion
-
- PHYSIPRO positioning backrests
-
- VALDIS flexible backrest with adjustable lumbar support
-
- Attendant-operated brakes
-
- One-sided hand rims for users with hemiplegia
-
- Sport / extended-reach / one-hand brake
-
- Backrest extension
-
- Crutch holder
-
- Positioning and corrective belts
-

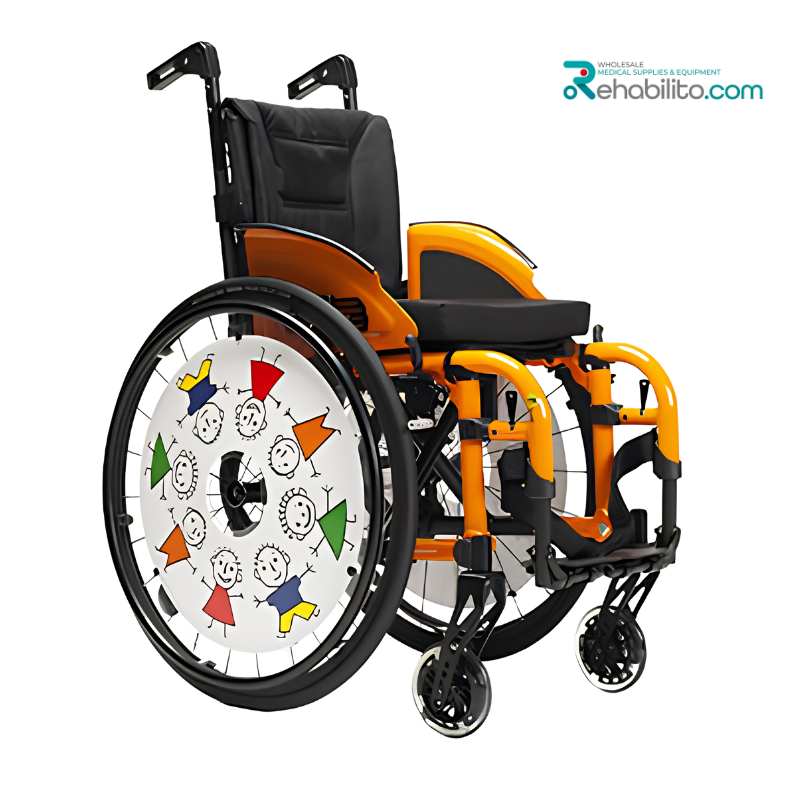

- Spoke cover
Technical Specifications:
| Feature | Specification |
| Maximum user weight | 70 | 130 kg* |
| Total length | 67.6 – 104.6 cm |
| Length without wheels | 65 – 85.5 cm |
| Total width at 0° wheel camber | 46 – 66 cm |
| Width without wheels | 38.6 – 58.6 cm |
| Total height | 45.7 – 94.5 cm |
| Folded height | 45.7 – 66 cm |
| Maximum slope angle / Gradient | 5° |
| Seat angle | 0 – 12° |
| Effective seat depth | 32 – 50 cm |
| Effective seat width | 30 – 50 cm |
| Front seat height | 38 – 51 cm |
| Rear seat height | 31.5 – 51.5 cm |
| Backrest angle | 82 | 86 | 90 | 94 | 98 | 102° |
| Backrest height | 25 – 55 cm, depending on configuration |
| Distance from seat to footrest | 24 – 46 cm |
| Leg rest angle | 70 | 80 | 90° |
| Horizontal axle position | 35 – 83 cm |
| Minimum turning diameter | 79 – 114 cm |
| Rear wheel diameter | 18 | 20 | 22 | 24 | 26″ |
| Front wheel diameter | 3 | 4 | 5 | 6″ |
| Rear tire pressure | 2.5 – 10 bar |
| Rear wheel camber angle | 0 | 2 | 4 | 6° |
| Handrim diameter | 40 | 44 | 50 | 53.5 | 60 cm |
| Wheelchair weight | from 9.8 kg |
*For seat widths up to 36 cm with a single cross brace, the maximum user weight is 70 kg. For seat widths of 36 cm and above with a 1.5 or double cross brace, the maximum user weight is 130 kg.
**Vermeiren reserves the right to change the technical specifications without prior notice. Before purchasing, we recommend contacting our office to confirm the current product configuration.
**Vermeiren reserves the right to change the technical specifications without prior notice. Before purchasing, we recommend contacting our office to confirm the current product configuration.
Documents:
The price includes the wheelchair in its standard configuration. If you wish to select additional options, please contact our office to discuss the details.
| Manufacturer | Vermeiren |
|---|---|
| Model | Kids |
| Seat width | 30, 34, 36, 38, 40, 42, 44, 46, 48, 50, 32 |
| Product code | 467540 |
