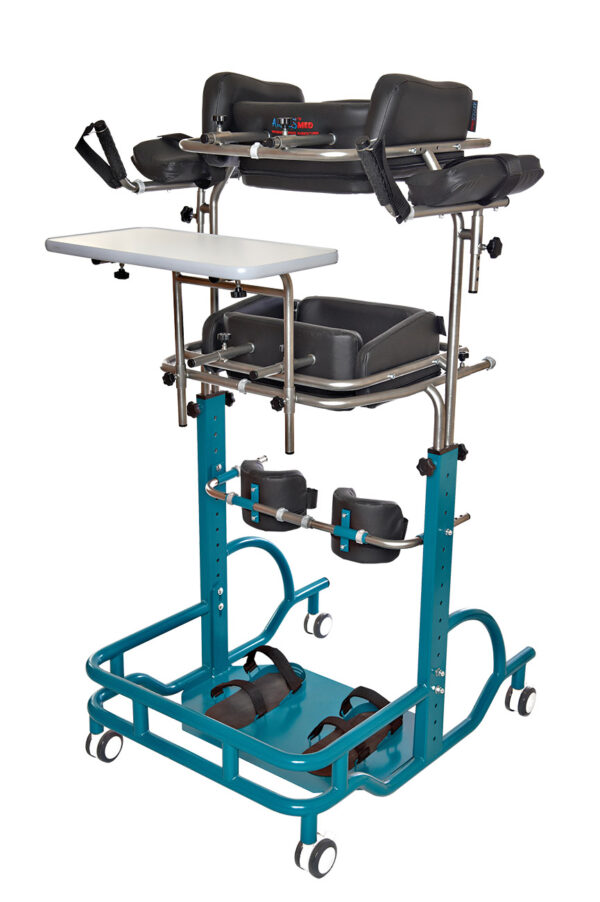

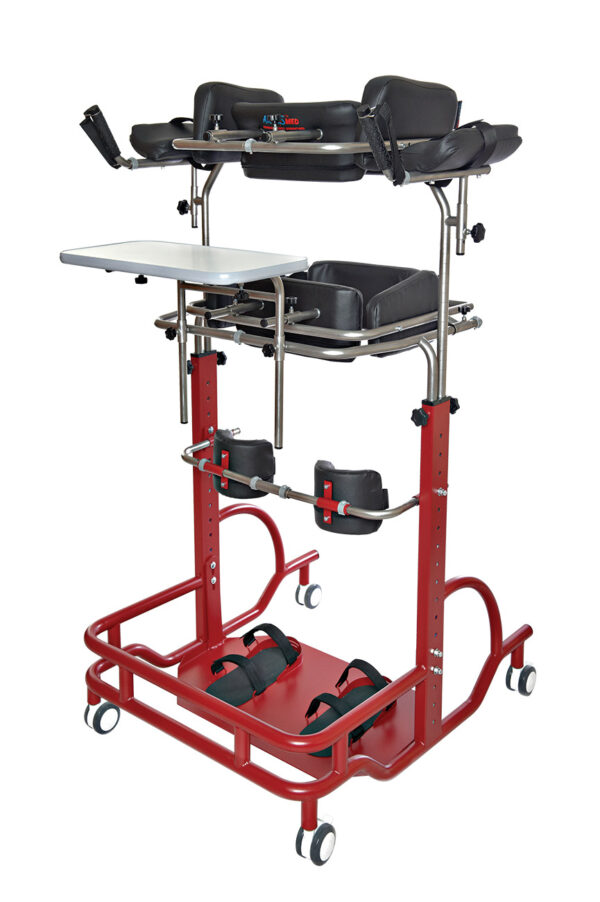

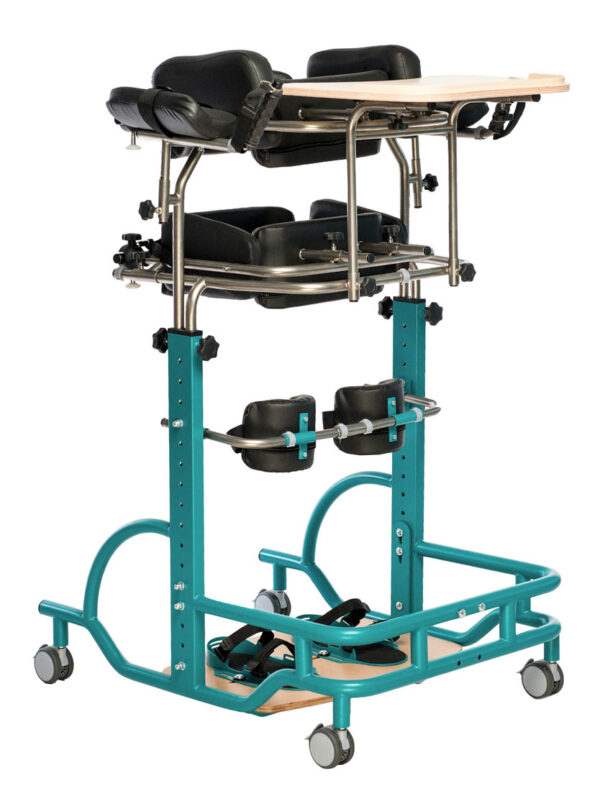

Paramobil standing frame Akces-Med

Description

Application:

• Cerebral palsy (CP) – various types and forms.
• Brain and spinal cord injuries of various etiologies with limb paresis, severe balance disturbances, and coordination impairments.
• Demyelinating diseases (multiple sclerosis – MS, amyotrophic lateral sclerosis – ALS, and others).
• Meningocele.
• Muscle diseases with paresis and paralysis (including dystrophy, myasthenia gravis, polymyositis).
• Genetic syndromes with limb paresis.
• Degenerative and metabolic diseases of the nervous system.
• Degenerative and rheumatic joint diseases.
• Other diseases with limb paresis, paralysis, and musculoskeletal impairments.
• After injuries, following traumatic brain injuries or spinal cord injuries with limb paresis and paralysis, particularly with quadriplegia (as part of the rehabilitation process or as permanent orthopedic support).

Features:

• Stable structure – The device ensures adequate stability and safety of user.
• Easy to use – Intuitive way of adjustment and easy assembly.
• 3 in 1 – The product has 3 utility functions for use in 1 single device.
• 24-month warranty – We offer 24-month warranty on the product. We also provide after sales service.































Standard equipment:

• Separator of lower limbs
• Electric-mechanic rotor
• Wide or narrow seat
• Tray
• Chest brace with chest support
• Forearm supports with grips
• Pelvic brace with pelvic support
• Knee stabilization with adjustable knee supports
• Foot stabilization
• Frame with castors and brakes

Available sizes:

Symbol	Measurement	Unit	Size 0	Size 1	Size 2	Size 3
W	Indicative user height	[cm]	90 – 150	110 – 170	130 – 190	130 – 200
A	Pelvic support width	[cm]	25	31	37	42
A1	Chest support width	[cm]	23	30	35	40
C	Pelvic support height	[cm]	63 – 90	77 – 114	86 – 122	91 – 128
C1	Chest support height	[cm]	75 – 112	94 – 131	103 – 147	107 – 159
B	Pelvic support depth	[cm]	15 – 24	15 – 28	19 – 31	22 – 34
B1	Chest support depth	[cm]	15 – 24	22 – 34	24 – 36	27 – 38
G	Knee supports spacing	[cm]	17 – 29	17 – 29	17 – 29	23 – 35
H	Knee supports height	[cm]	25 – 55	32 – 60	34 – 70	39 – 79
	Footplate length	[cm]	23	27	29	30,5
	Maximum user weight	[kg]	40	60	90	120

Technical specifications:

Measurement	Unit	Size 0	Size 1	Size 2	Size 3
Width	[cm]	59	70	70	76
Length	[cm]	75	90	90	93
Height	[cm]	90	83	93	98
weight	[kg]	22	39	42	43

Documents:

Brochure

User manual

Certificate

Declaration of conformity
