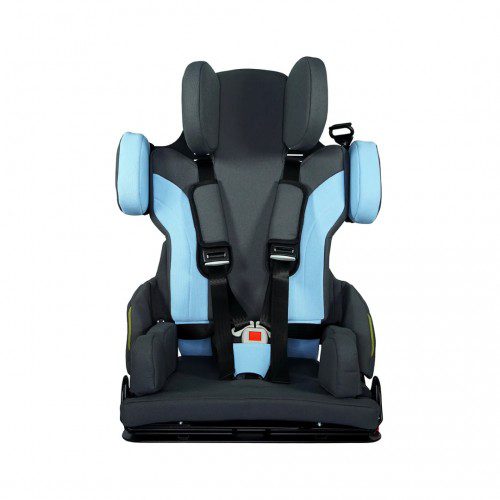

Rehabilitation Car Seat Hercules Small Thomashilfen
Price range: 1745,00 € through 1980,00 €
A specialized car seat that meets the latest R129 safety standards, which cover both frontal and side impacts. Designed for users weighing up to 50 kg.
This is a medical device. Use it according to the instructions for use or the label.
Indications:
- For children and adolescents weighing 18–50 kg
Product features:

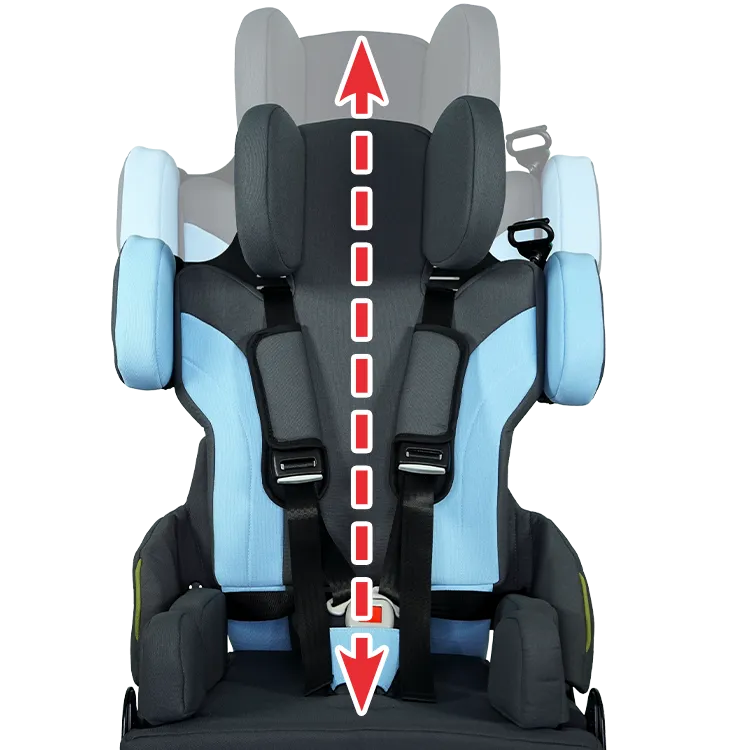

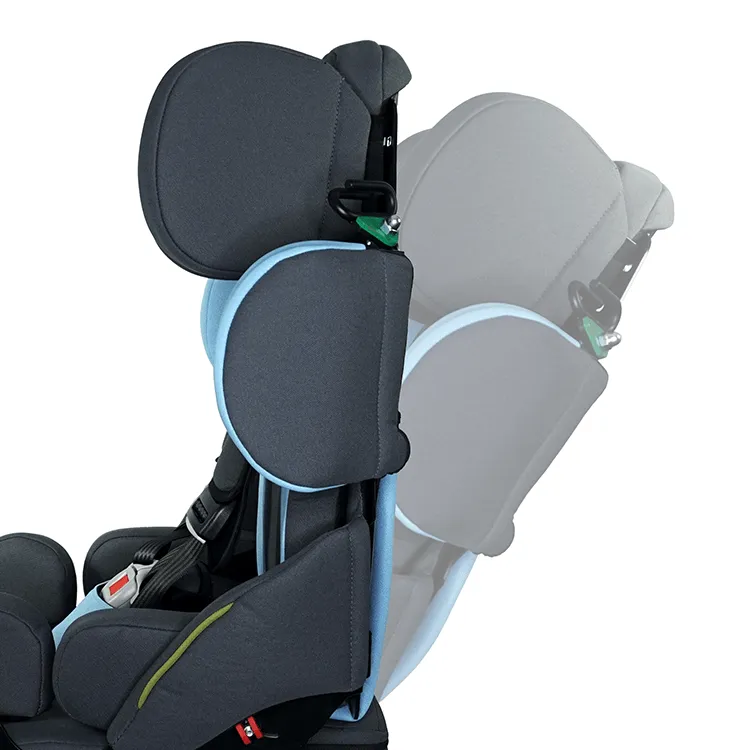

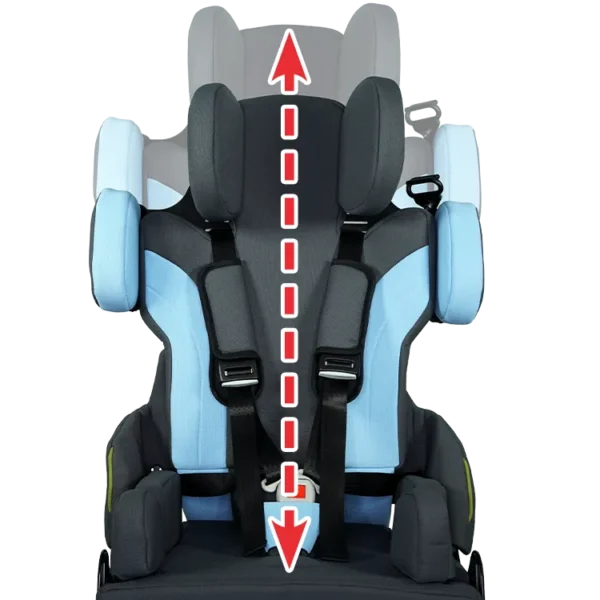

- Adjustable backrest height – with 24 cm of stepless adjustment, you can adapt the car seat to your child’s height
- Safety compliant to R129 standard – protection against both head-on and side-impact collisions

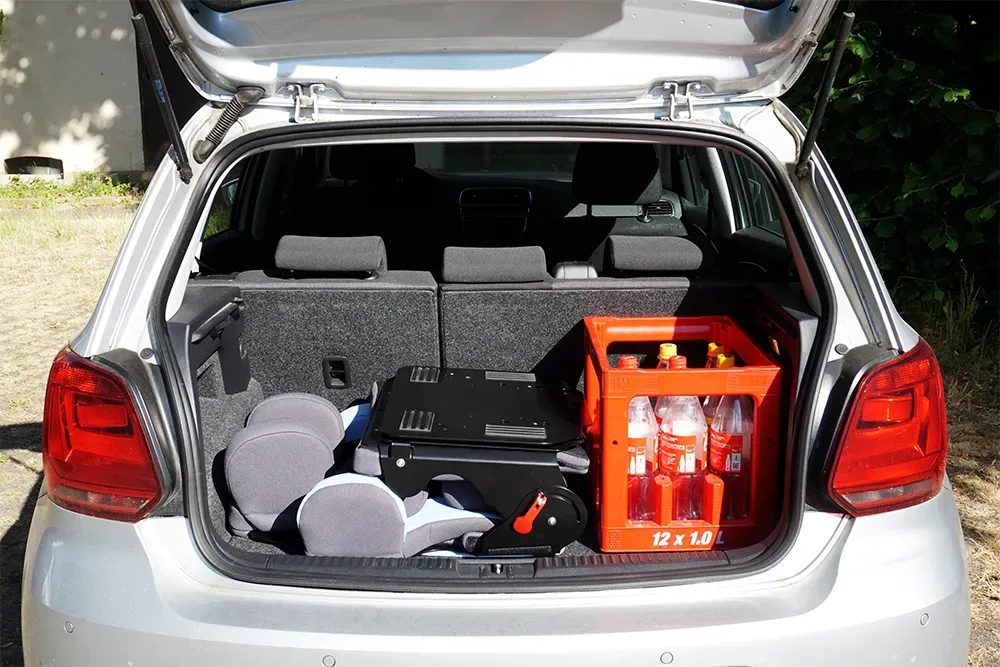

- Compact folding – the seat can be folded to 55 x 23 x 60 cm, making transport and storage easier

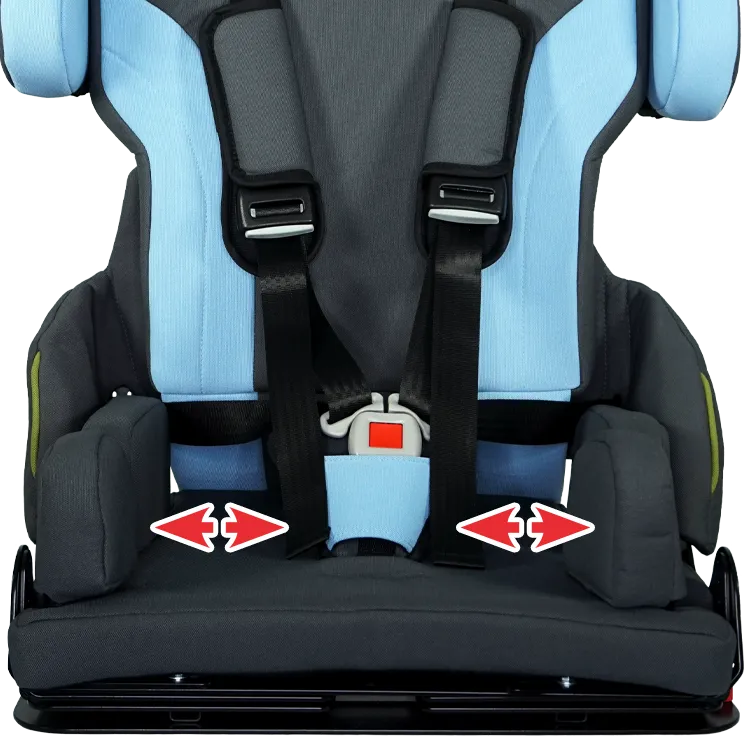

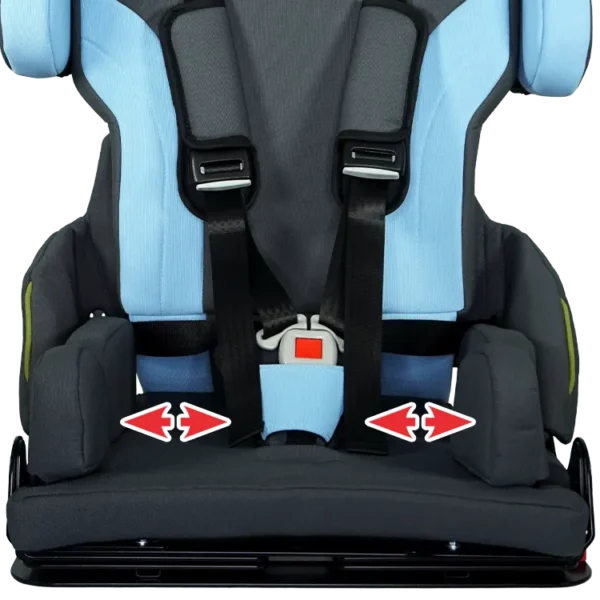

- Adjustable hip and leg guides – the product “grows” with the user
Standard equipment:

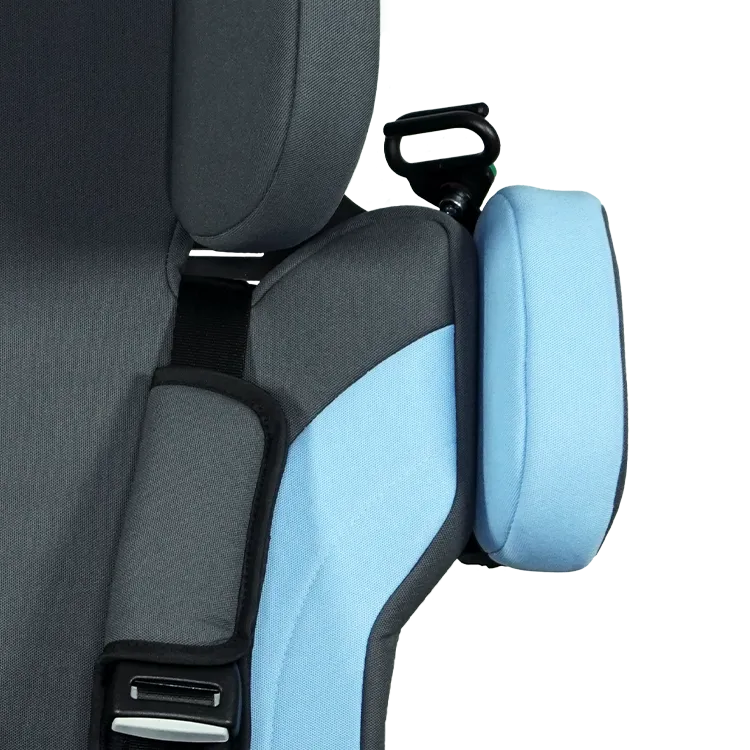

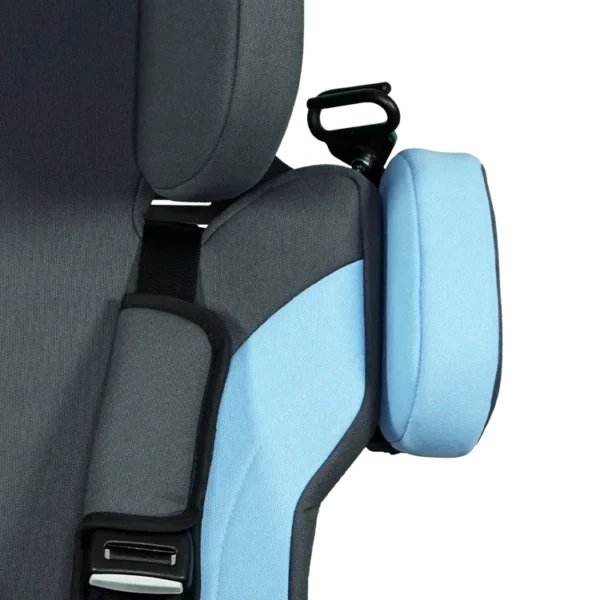

- Side protectors – provide effective protection for the head and shoulders during side-impact collisions
- 5-point safety harness – with soft shoulder pads and a quick-release fastening system
- Breathable covers – removable and machine washable at 40°C

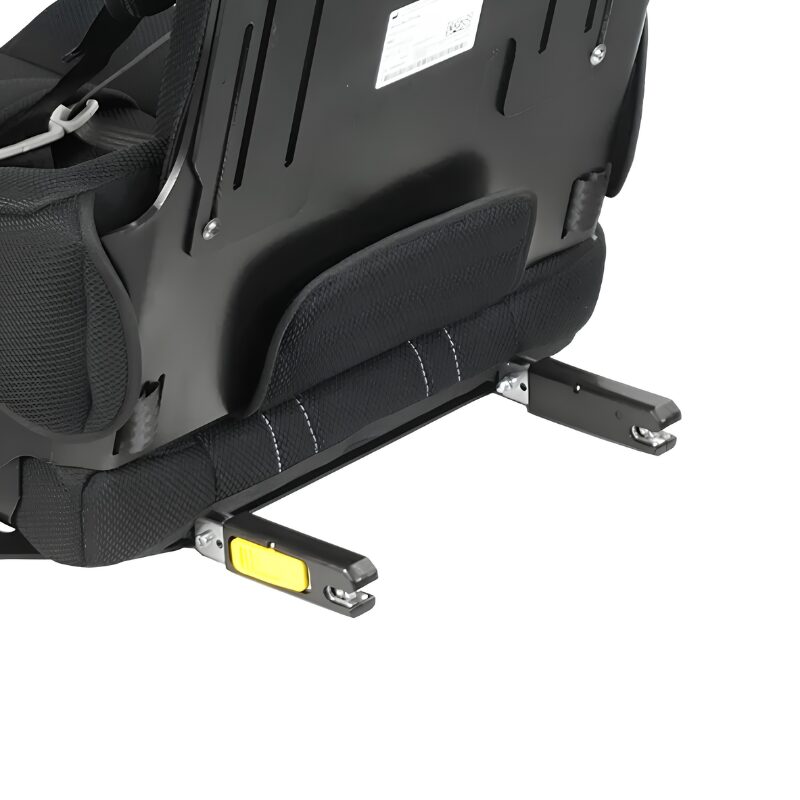

- ISOFIX connectors – for secure installation in the vehicle
Additional equipment:

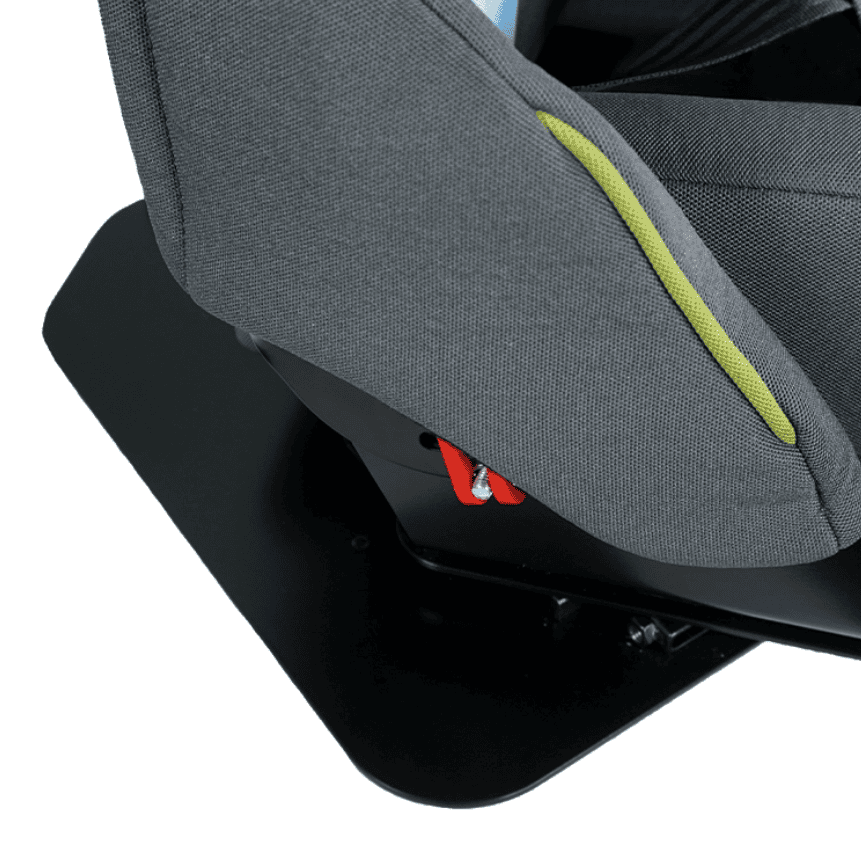

- Swivel plate
- Plate with 10° angle adjustment
- Extended backrest angle adjustment from 12.5° to 20°
- Stabilizing bar (*excludes Isofix Adapter)

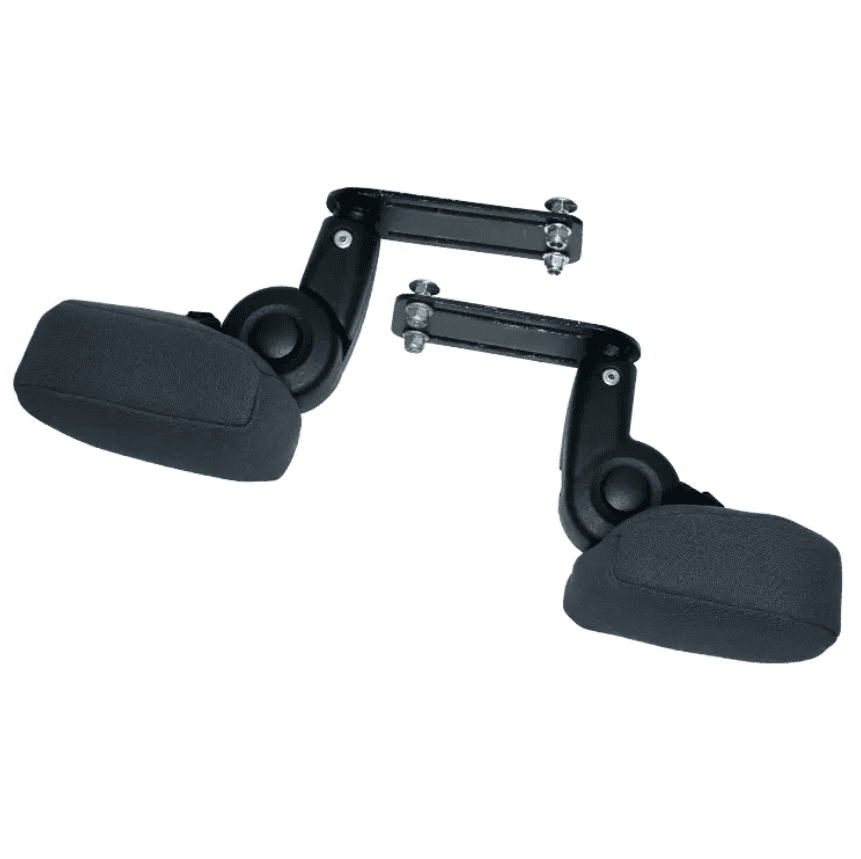

- Adjustable lateral supports
- Tapered shoulder supports (from 45 to 34.5 cm)
- Rigid lateral supports
- Isofix Adapter (*excludes stabilizing bar)
- Stabilizing feet for the swivel plate
- Height-adjustable abduction wedge
- Armrests
- Folding footrest
- Table (*only with armrests)
- Additional upper belt guide
- Headrest narrowing cushion
- Headrest height extension (4 cm)
- Headrest depth extension (4 cm)

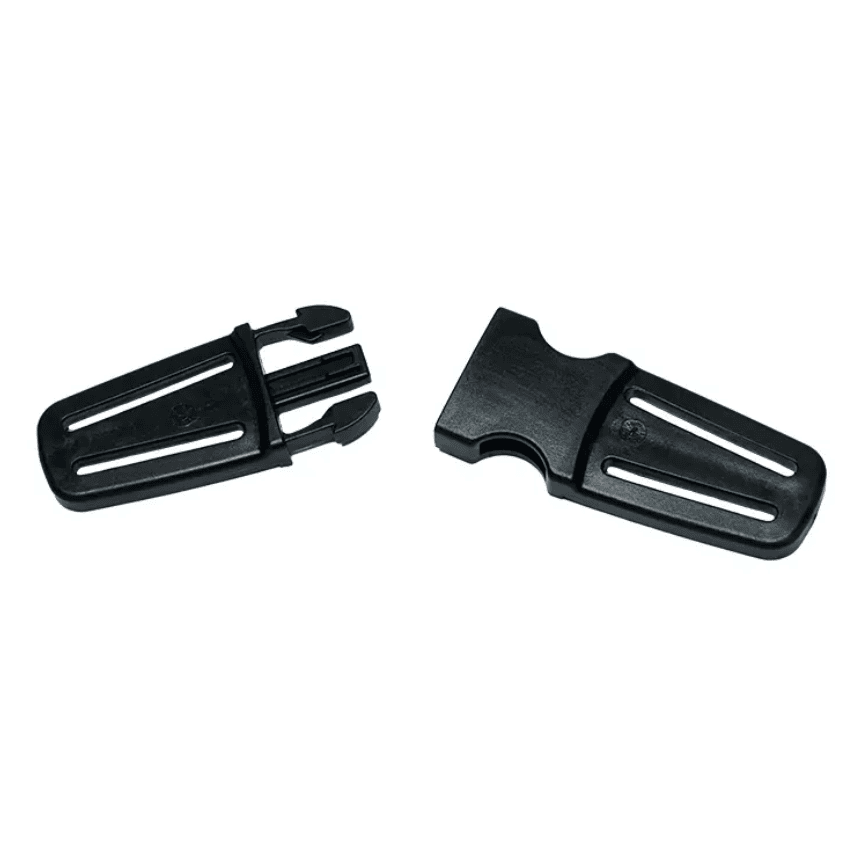

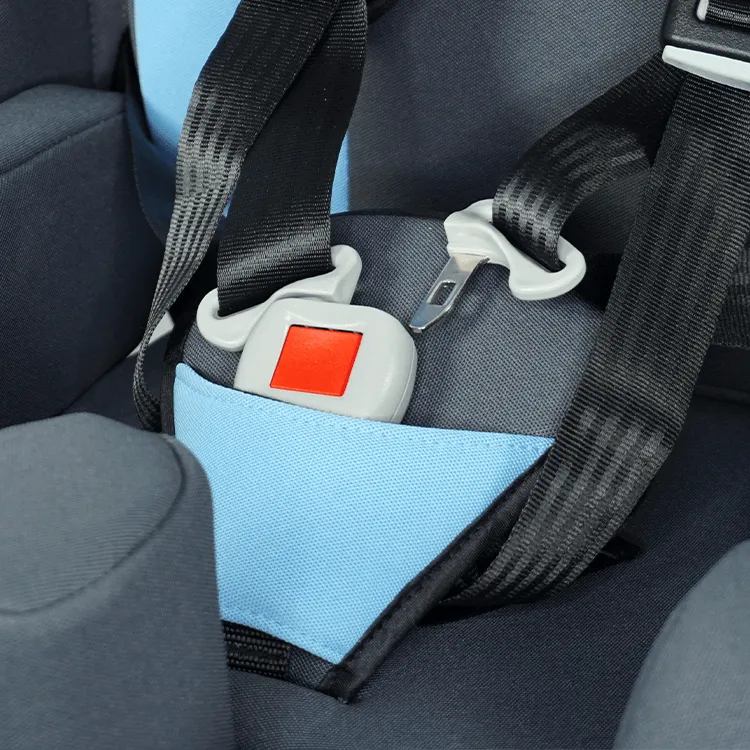

- Harness buckle
- Protective mat for the seat and backrest
Technical data:
| Dimensions (W x H x D) | 55 x 85 x 34 cm |
|---|---|

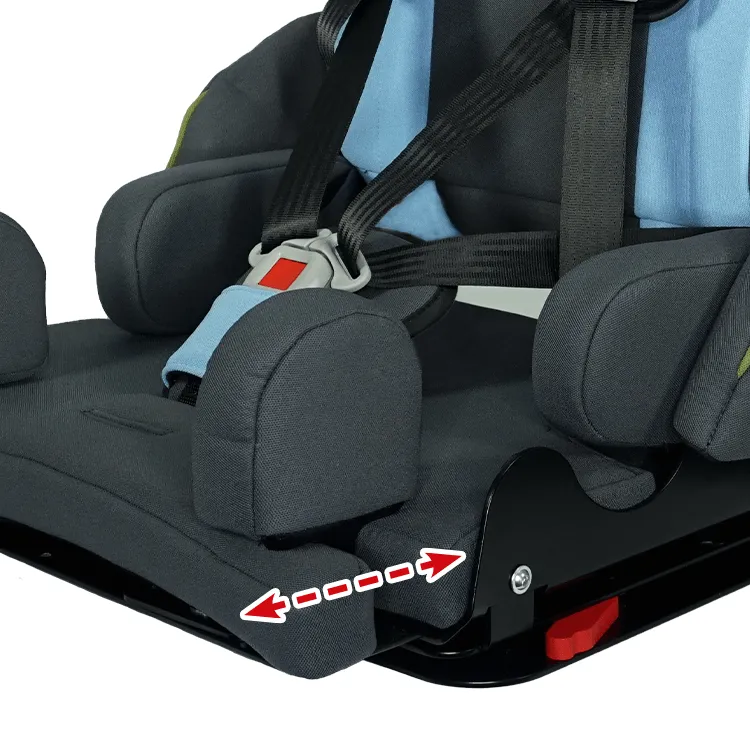

| Seat depth | 31–39 cm |
| Seat width | 29–38 cm |
| Backrest height (inside the seat) | 57–80 cm |
| Shoulder height (belt guide) | 33–60 cm |
| Shoulder width* | 26–36.5 cm |

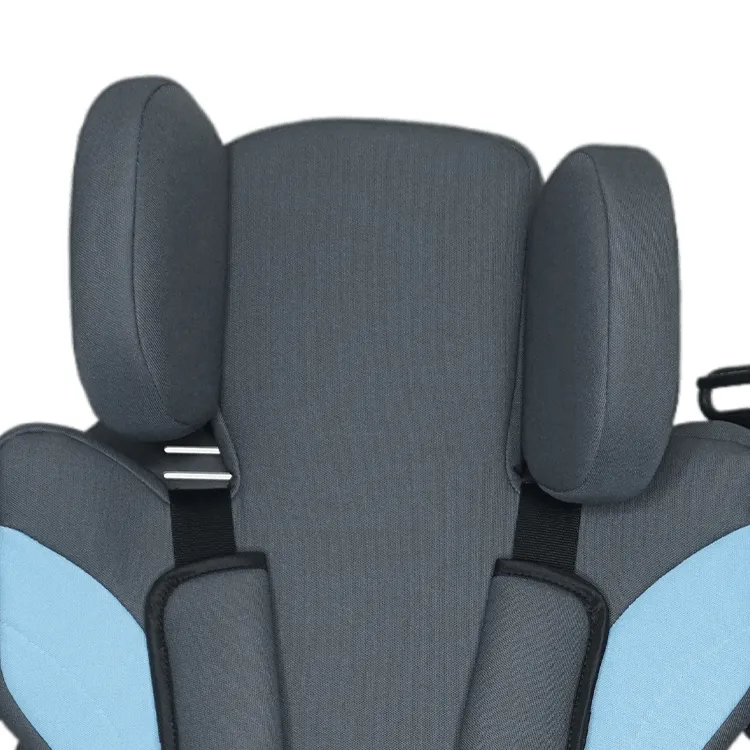

| Headrest height (from seat) | 33.5–36.5 cm ¹ 57–60 cm ² |
| Backrest angle | 90–145° |
| Seat tilt (tilt-in-space) | 0° ³ 0° / 2.5° / 5° / 7.5° / 10° ⁴ 12.5° / 15° / 17.5° / 20° ⁵ |
| Lower leg length (with footrest) | 16–42 cm |
| Height of lateral trunk supports (upper edge) | 28–34 cm |
| Distance between lateral trunk supports (max.) | 20–33 cm |
| Weight (basic version) | 11.6 kg |
| Max. user weight | 50 kg |
*With shoulder guides
¹ At minimum backrest height
² At maximum backrest height
³ Basic version
⁴ With 10° tilt base
⁵ With 20° tilt base
Documents:
| Colour | Blue, Red |
|---|---|
| Version | Standard, With 10° bend angle adjustment, With swivel plate |
| Manufacturer | Thomashilfen |
| Product code | 407990 |
