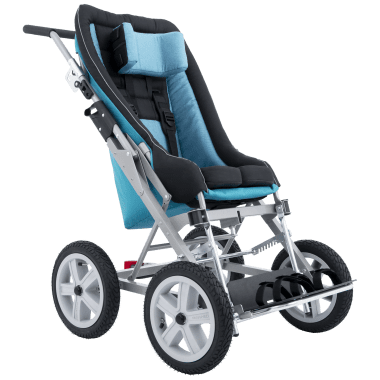

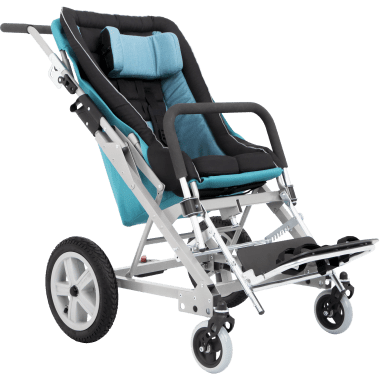

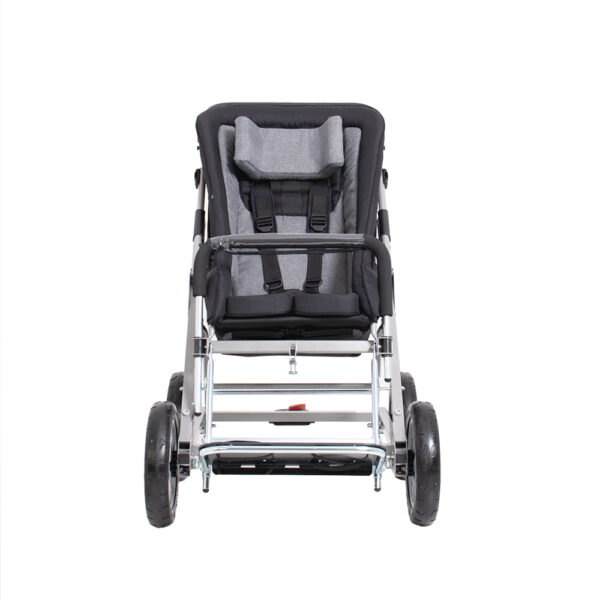

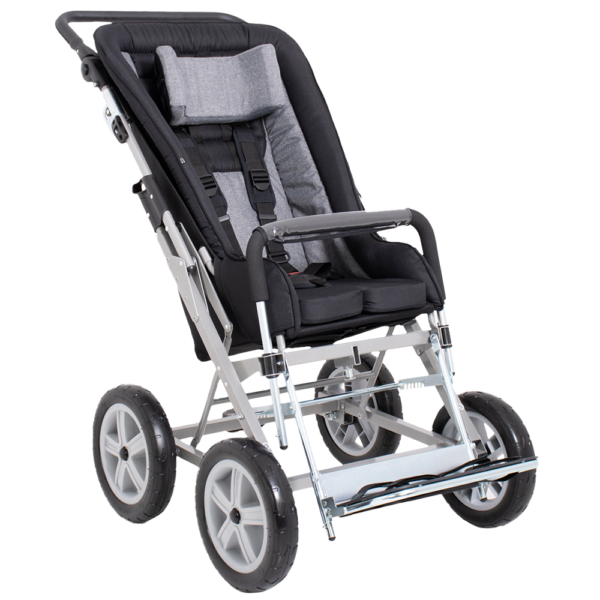

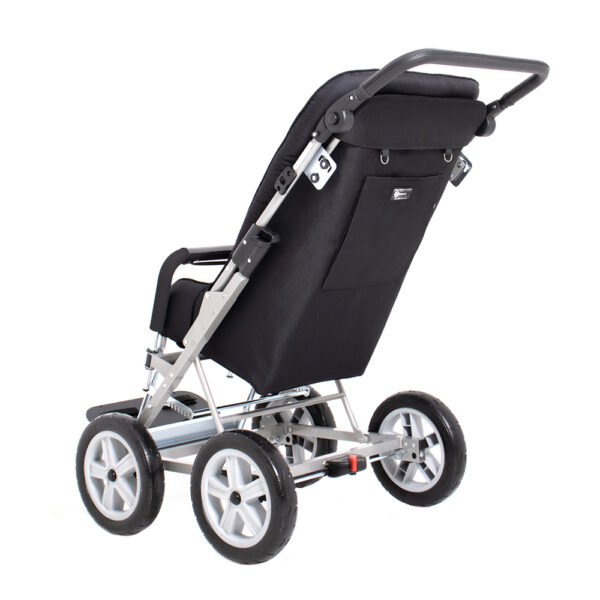

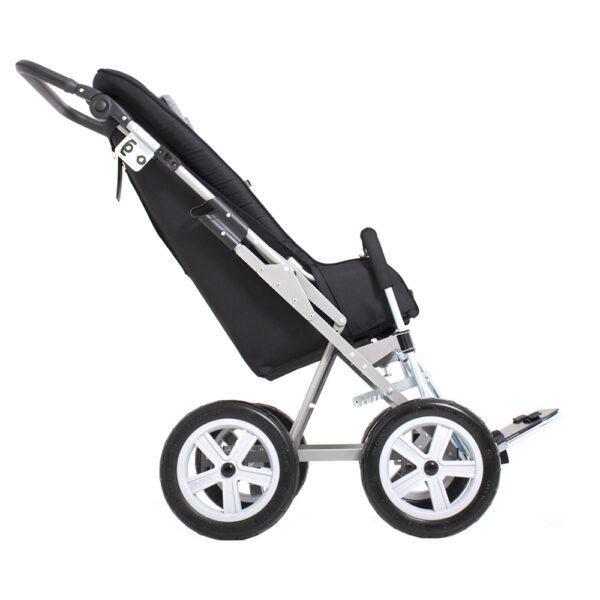

Special needs stroller Nova Akces-Med

Description

Product Features:

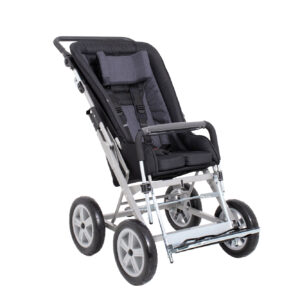

Nova by Akces-Med is a special needs stroller for users with spasticity. Adaptive upholstery provides enhanced support, while the adjustable wheel track offers either greater stability or improved maneuverability. A tilt-adjustable seat, adjustable supports, and a 5-point harness ensure secure positioning, and the folding frame with quick-release wheels makes transport easy.

Indications:

• Cerebral Palsy (CP)
• Brain and spinal cord injuries resulting in limb paresis and impaired motor coordination
• Demyelinating diseases (Multiple Sclerosis, ALS, and others)
• Spina bifida
• Muscular disorders (including muscular dystrophy, myasthenia gravis, and polymyositis)
• Genetic syndromes associated with limb paresis
• Degenerative and metabolic diseases of the nervous system
• Degenerative and rheumatic joint diseases
• Conditions following spinal and traumatic brain injuries
• Other disorders involving paralysis, paresis, and musculoskeletal impairments

Standard equipment:

• Folding frame
• Quick-release solid wheels (*not compatible with hand brake)

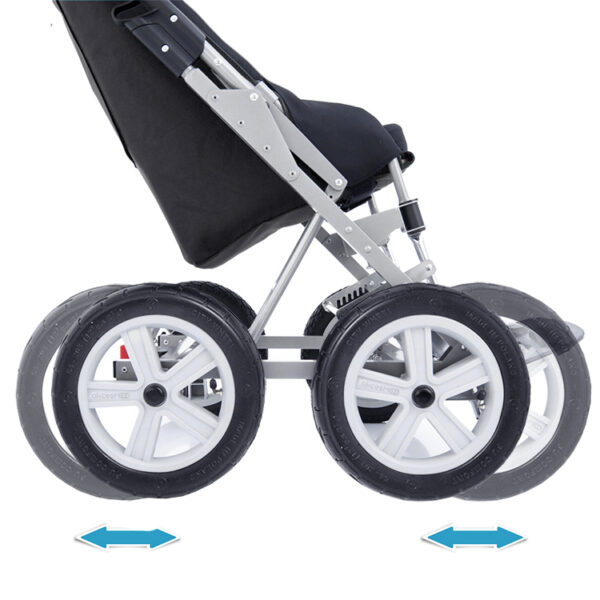

• Adjustable SmarTraction wheel axle system
• Adjustable footrest with 2-point foot positioning straps
• Seat cushion
• Adjustable push handle
• 5-point safety harness
• Adjustable headrest
• Safety bar
• Central brake
• Bucket seat function
• Technical upholstery
• Waterproof Hydro™ upholstery

Optional Equipment:

• EVO module

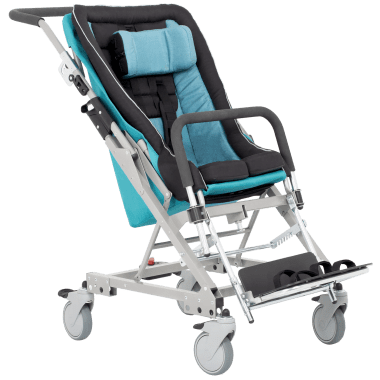

• HOME module

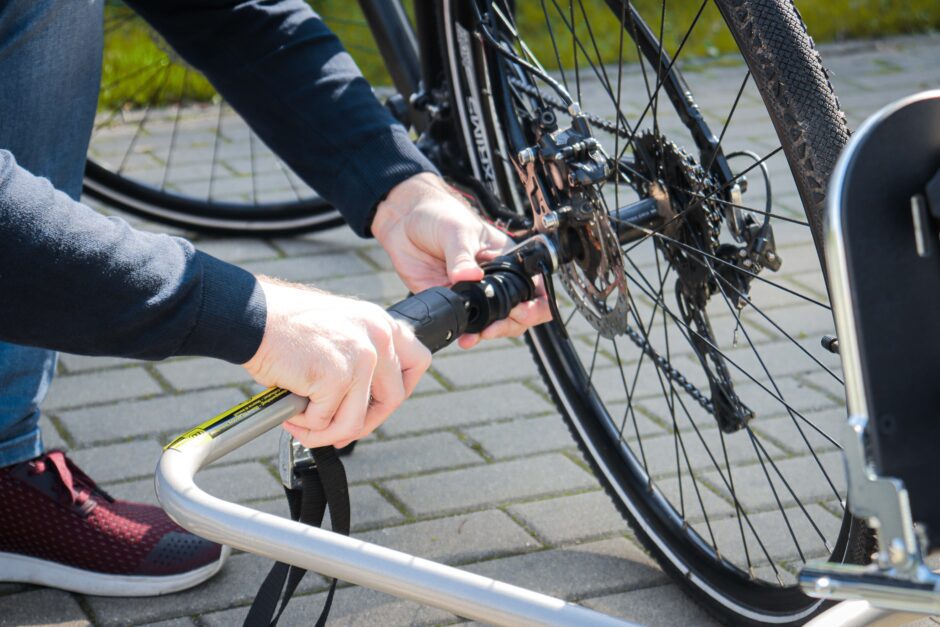

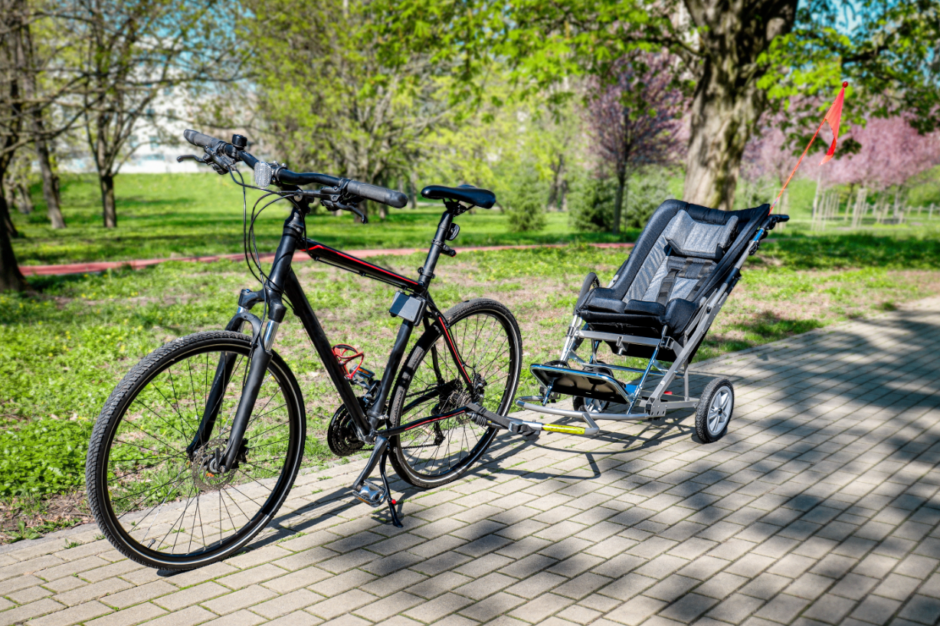

• Bicycle tow bar

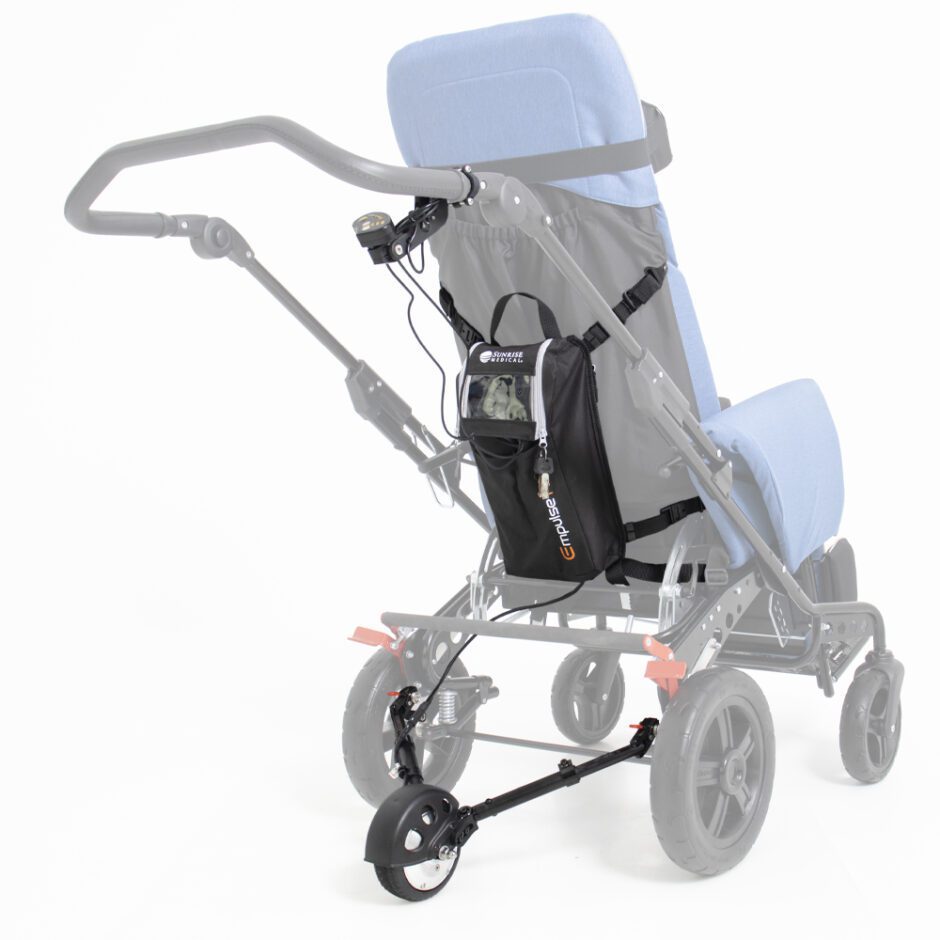

• Electric drive
• Electric drive adapter
• LED lights

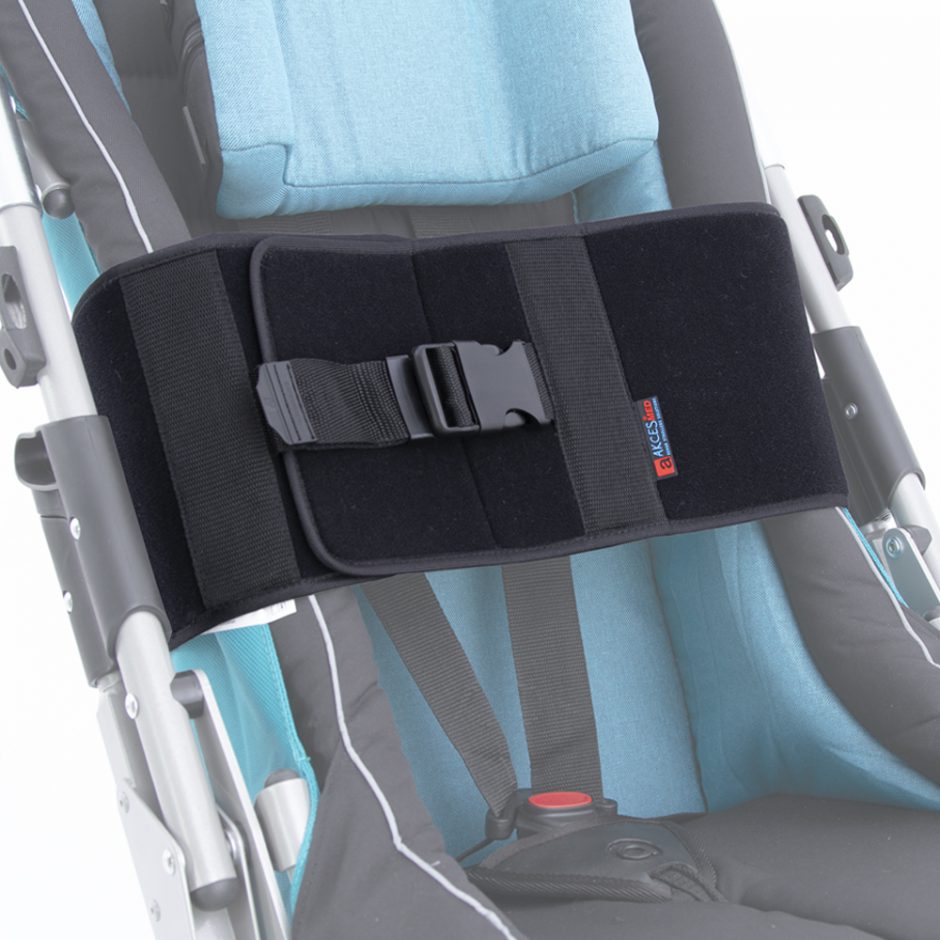

• Patient transfer belt
• All Terrain wheel (*not compatible with hand brake)
• Hip abduction straps
• Pelvic belt
• Vest (*requires pelvic stabilization accessories)
• Trunk support belt

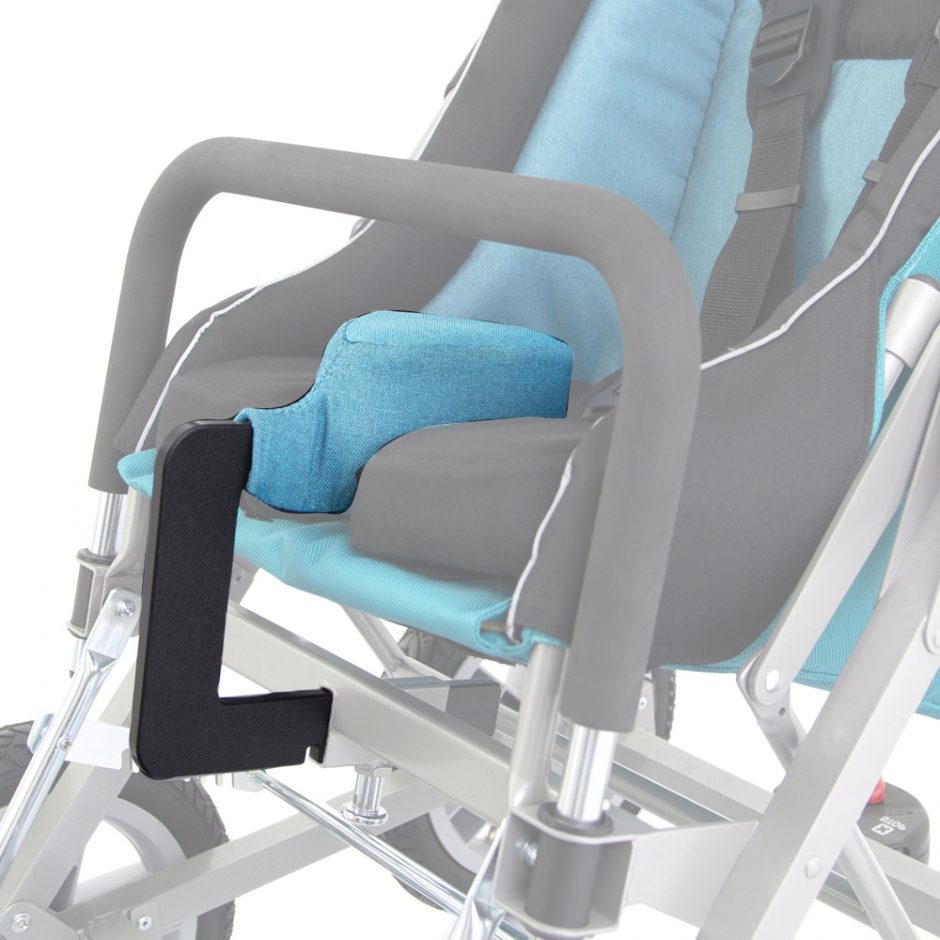

• Adjustable abduction wedge
• Seat width reduction cushions:
  • 6 cm
  • 10 cm
• OCTAGON™ anatomical headrest with head support
• Foot and ankle stabilization sandals
• Dynamic ankle supports
• Anatomical thigh abductors
• 4-point foot positioning straps

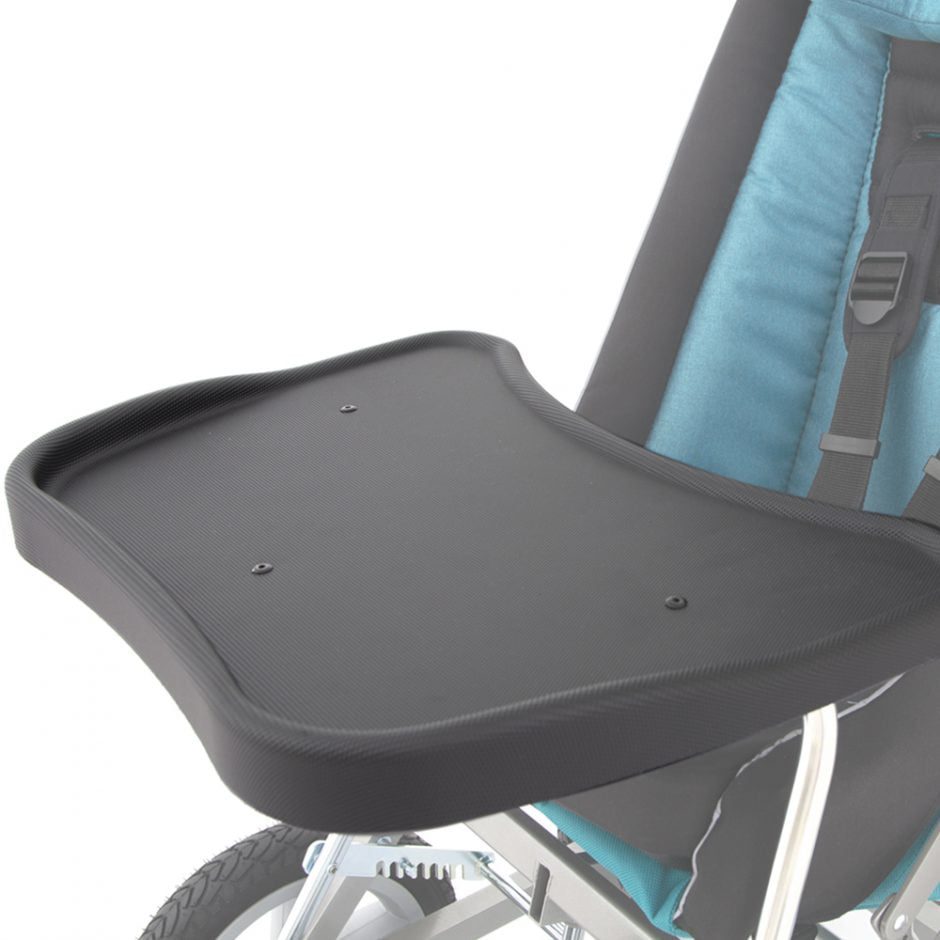

• Tray

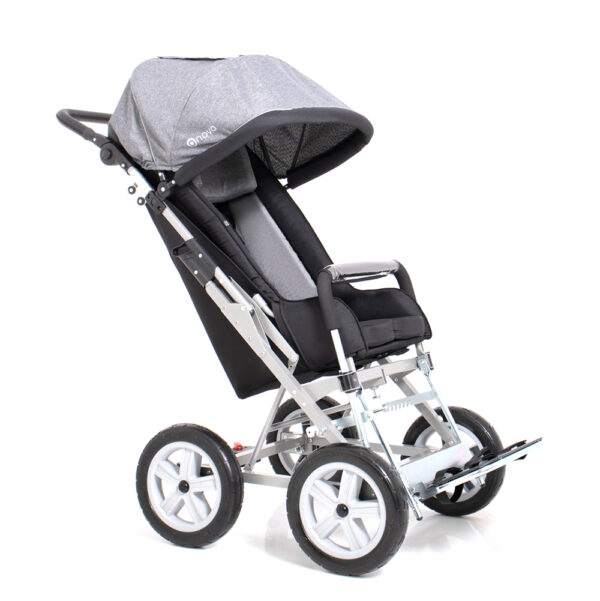

• Canopy

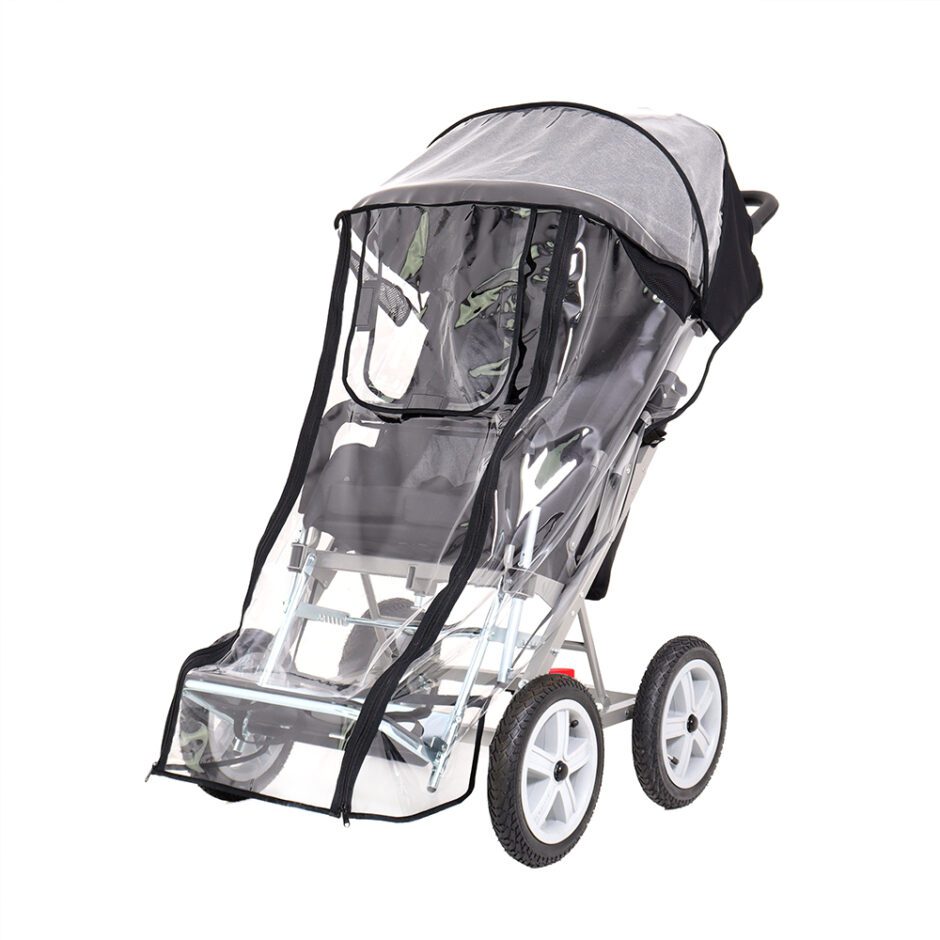

• Rain cover (*requires canopy)
• Cup holder

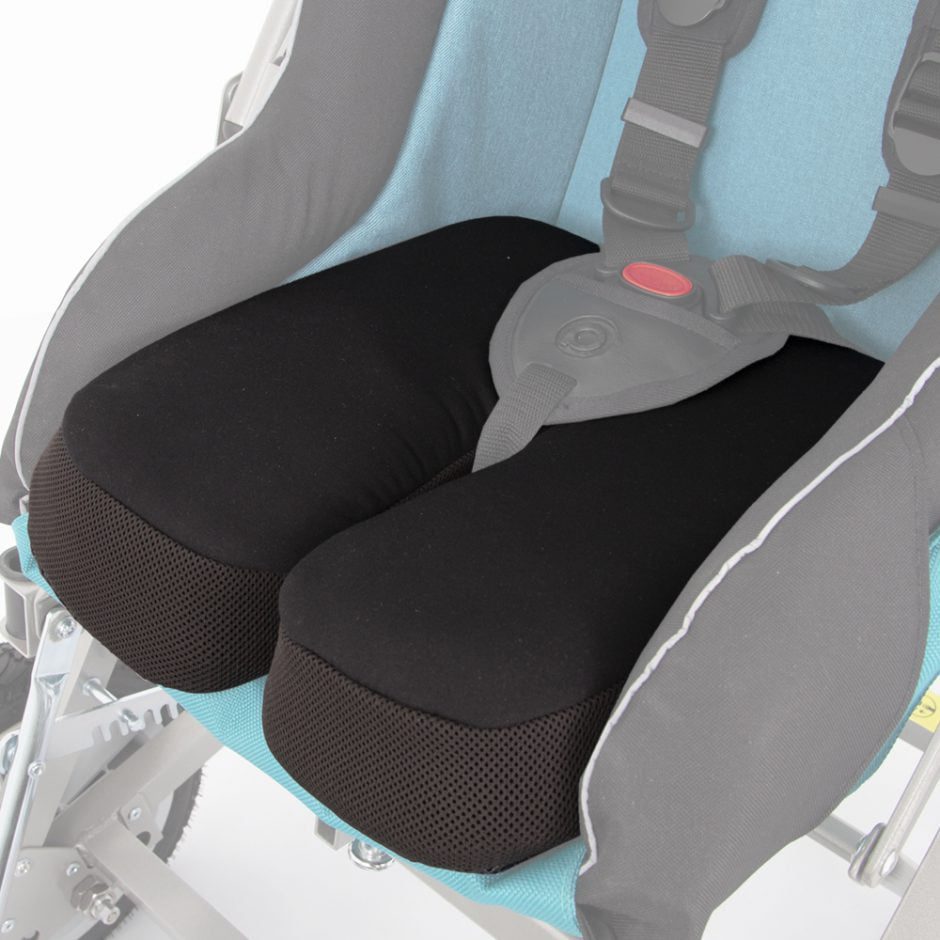

• Elastico seat cushion
• Wheel covers
• Winter footmuff with hand muffs
• Mosquito net (*requires canopy)
• Hand brake (*only with pneumatic wheels)
• Full seat cushion with positioning roll (*not compatible with abduction wedge)
• Sleeping bag
• Winter hand muffs
• Phone holder
• Anti-slip tray pad
• Carry bag
• Transport cover for folded stroller with wheel pocket
• Organizer
• FLASH backpack (11.5 L)
• NORDIC backpack (25 L)
• EasyGo travel/flight bag
• Flex Bag (with changing mat and insulated pocket)

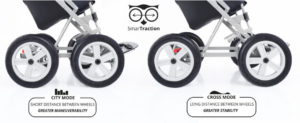

Wheelbase mode:

Versions:

Nova	Evo	Home



Colour Range:

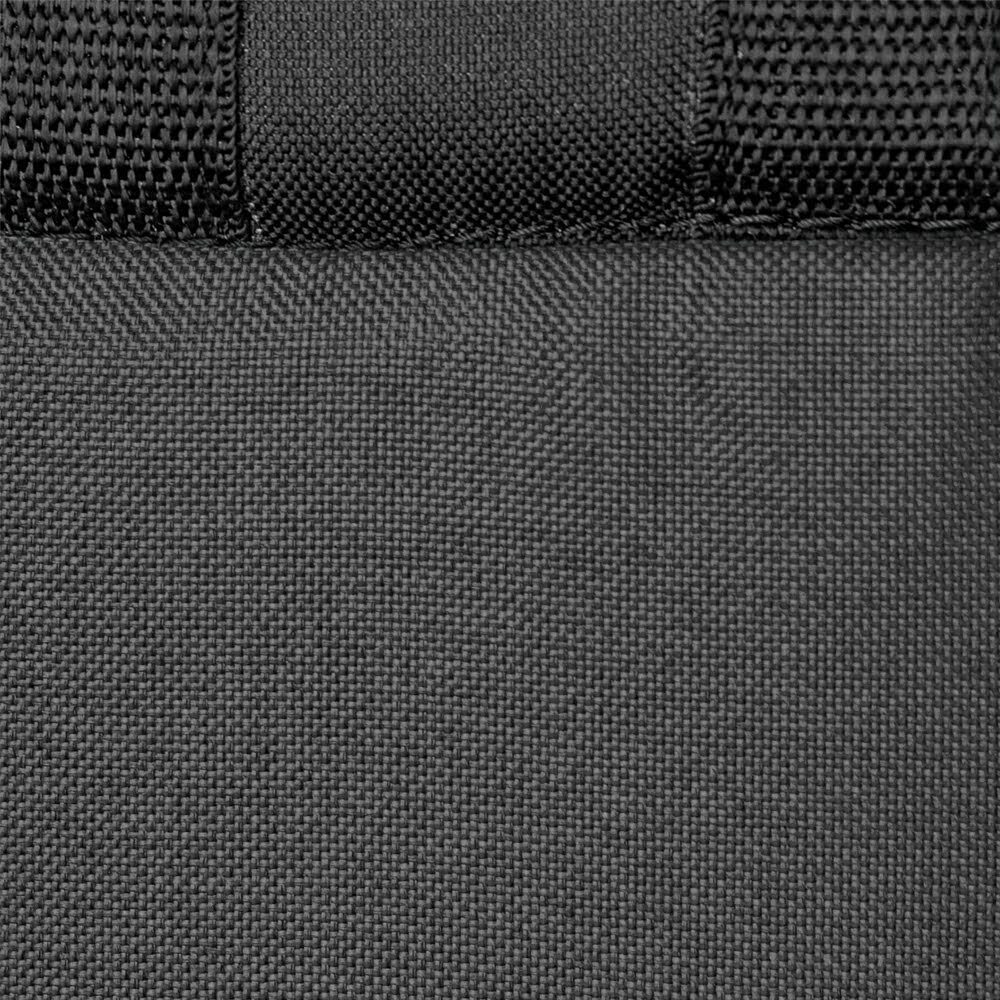

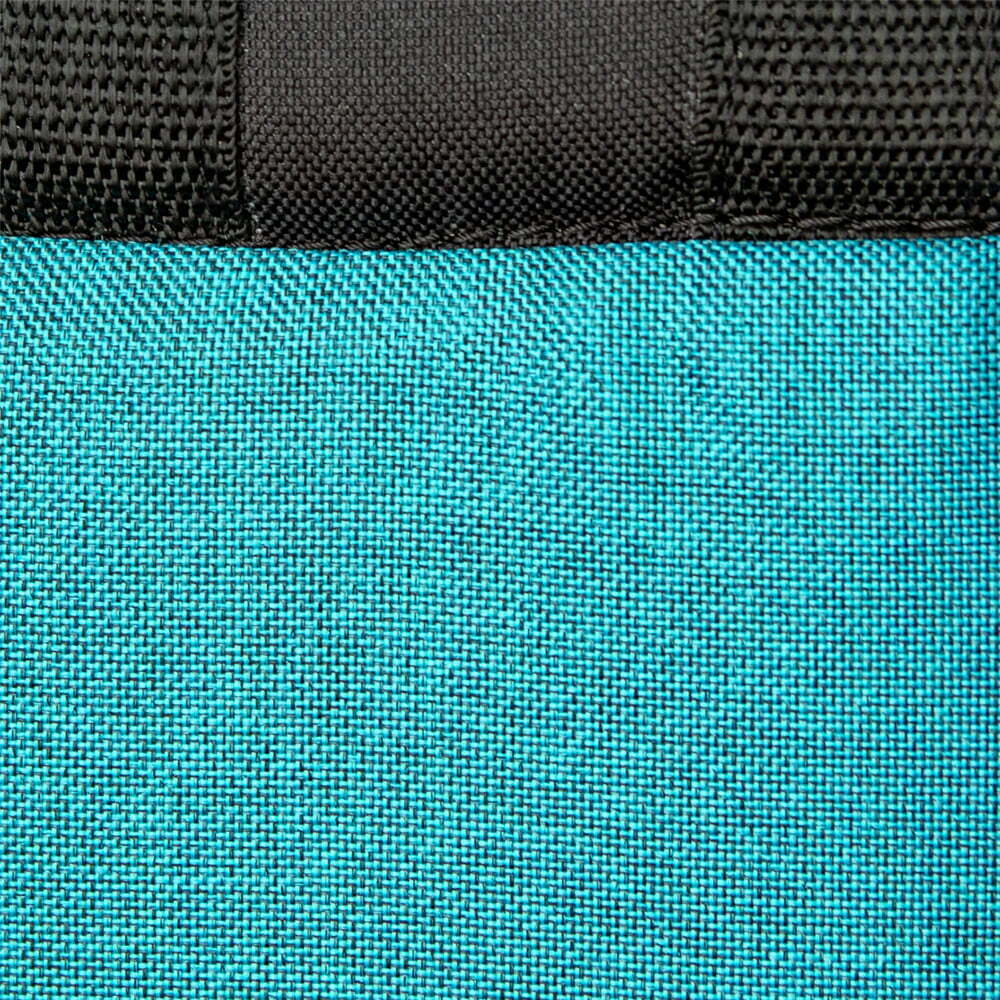

1. Technical upholstery:

Size 1	Size 2	Size 3

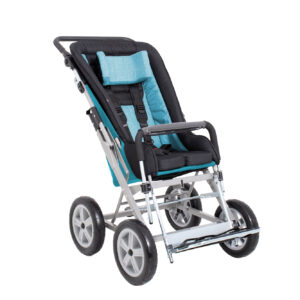

2. Waterproof HYDRO™ upholstery:

Size 1	Size 2	Size 3

Accessories:

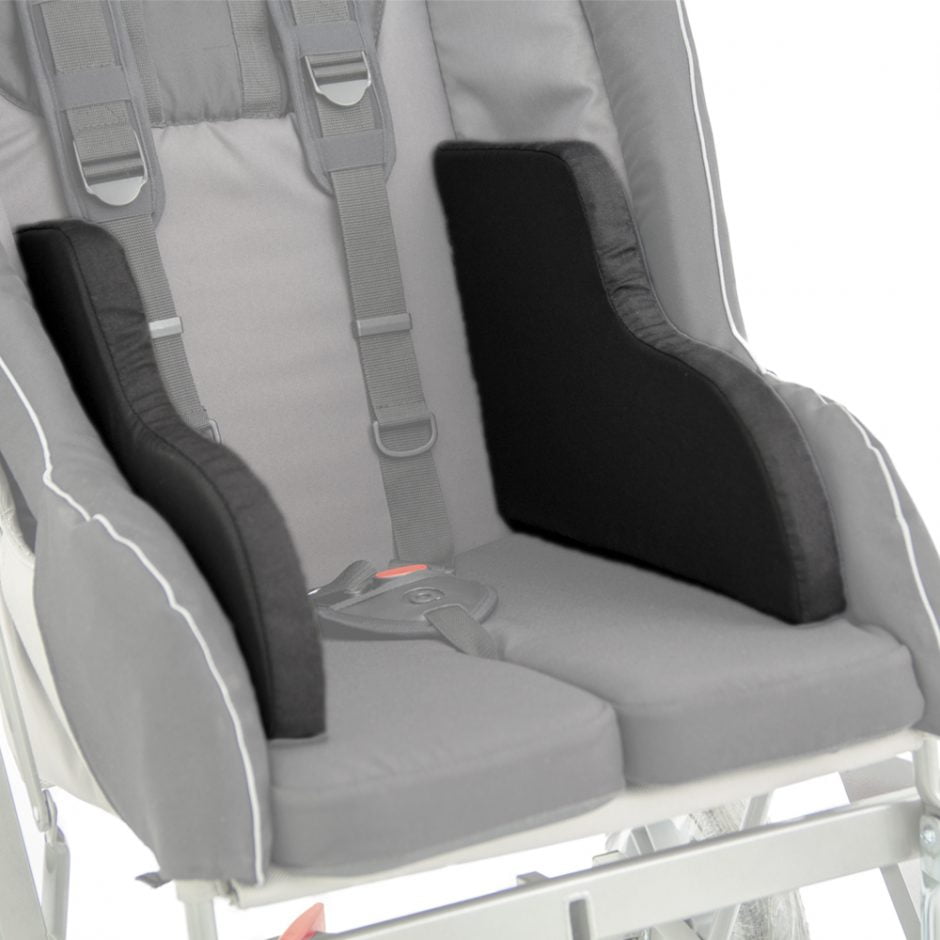

Wedge	Seat narrowing cushions	Trunk belt

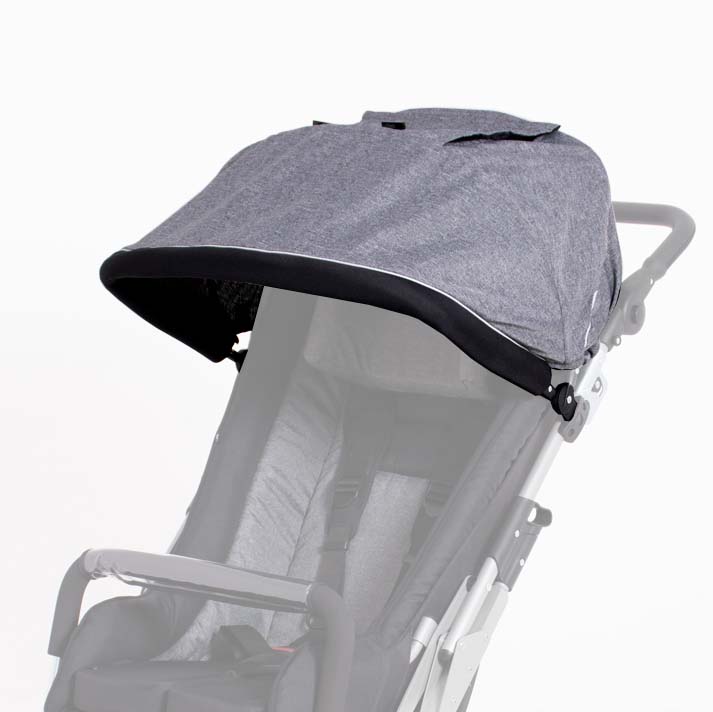

Tray	Canopy	Rain cover

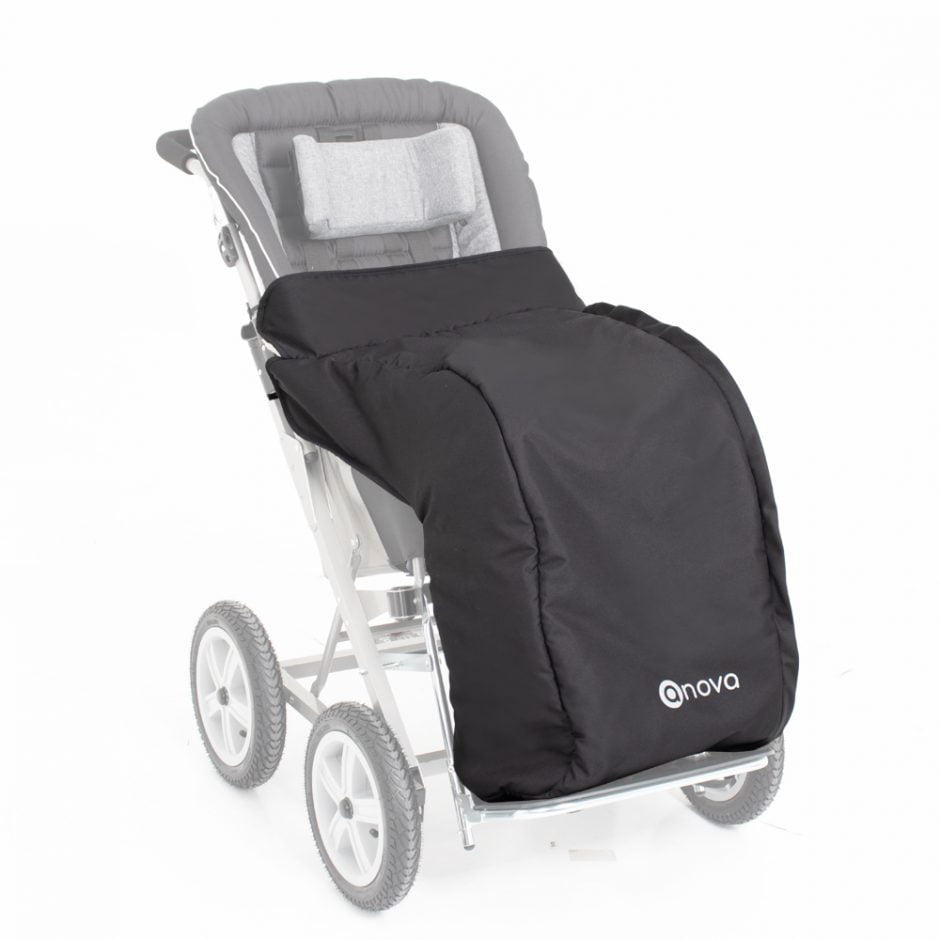

Elastico cushion	Footmuff	Electric drive

Size chart:

Symbol	Measurement	Unit	Size 1	Size 2	Size 3
FH	Approximate user height	[cm]	100 – 130	120 – 160	140 – 180
t	Seat width	[cm]	31	36	41
BK	Seat depth	[cm]	34	38	47
s	Backrest width	[cm]	29	34	40
h	Backrest height	[cm]	65	70	82
KH	Headrest height	[cm]	45 – 57	52 – 62	61 – 73
FK	Footrest distance from seat	[cm]	25 – 45	29 – 51	32 – 56
p	Footplate length	[cm]	16	21	25
e	Push handle height	[cm]	69 – 115	76 – 120	82 – 130
k	Seat height	[cm]	50 – 53	56 – 59	60 – 63
α1	Backrest angle	[°]	92	97	97
α2	Seat tilt angle	[°]	15, 20, 25	15, 18, 22	15, 17, 20
α3	Footrest angle	[°]	85 – 150	95 – 145	97 – 145
	Max. user weight	[kg]	40	60	90

Technical specifications:

Size	1	2	3
Width	64 cm	69 cm	74 cm
Length	86 – 123 cm	100 – 136 cm	118 – 157 cm
Height	93 – 115 cm	99 – 120 cm	107 – 130 cm

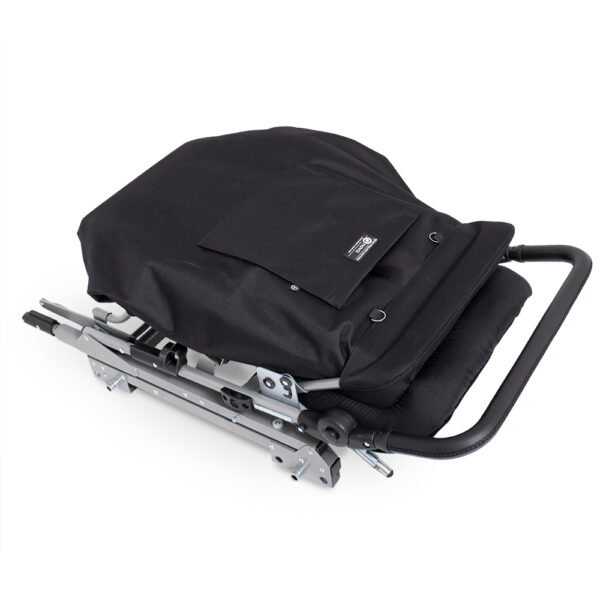

Width after folding	53 cm	58 cm	63 cm
Length after folding	77 cm	91 cm	96 cm
Height after folding	32 cm	35 cm	38 cm
Weight	21,5 kg	24,5 kg	28,5 kg

* Measurement tolerance range is +/- 1 cm / ½ in.



Documents:

Brochure

User manual

EC Declaration



* Akces-MED reserves the right to modify product design and specifications without prior notice as part of ongoing product improvements. Please contact our office before purchase to confirm the current configuration.

The price includes the equipment in its basic version. If you choose additional options, please contact the office for details.
