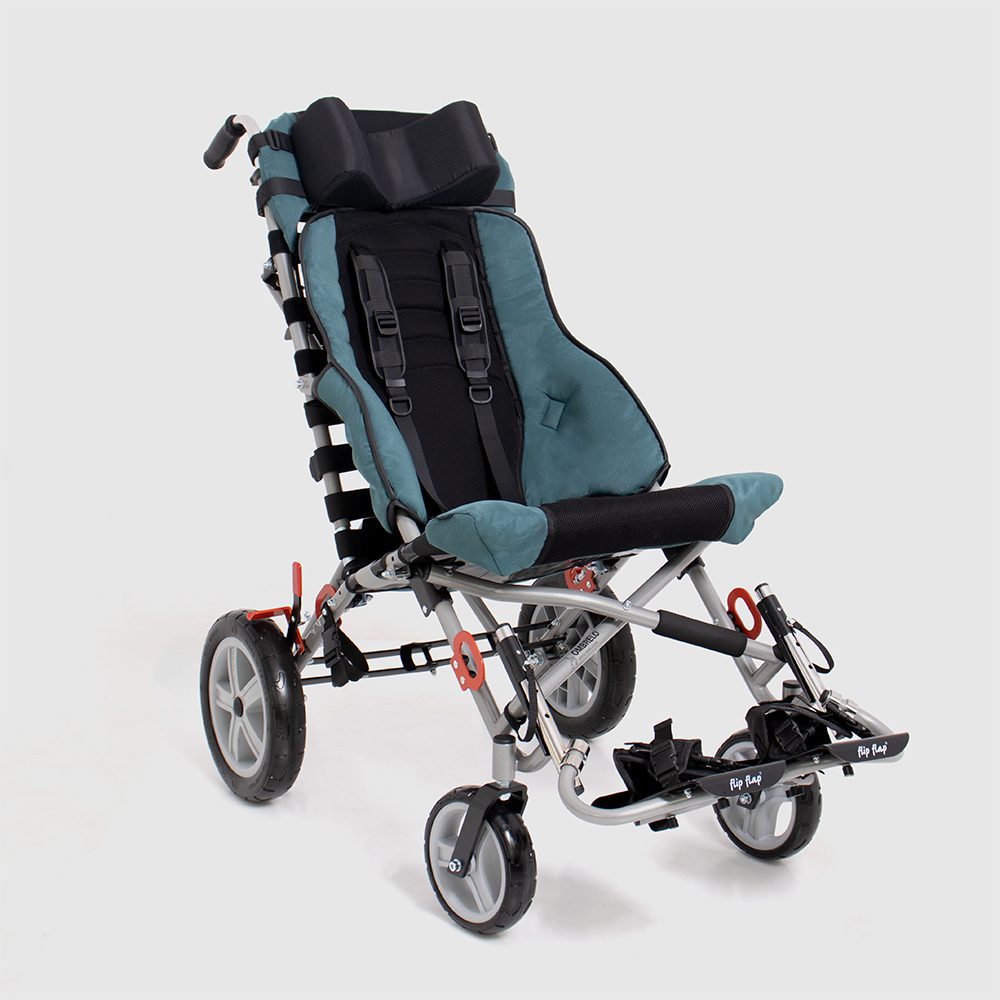

Special needs stroller Ombrelo Akces-Med

Description

Product Features:

Ombrelo by Akces-MED is a lightweight, umbrella-folding special needs wheelchair for children and adults. The BodyPrint™ seat provides comfort and postural stability, while the 27° bucket position reduces soft tissue pressure. Adjustable seating, removable backrest stays, and FlipFlap™ footrests ensure individualized fit and growth adaptation.

Indications:

• Cerebral palsy (CP)
• Brain and spinal cord injuries with limb paresis and motor coordination disorders
• Demyelinating diseases (MS, ALS and others)
• Spina bifida
• Muscular diseases (e.g. muscular dystrophy, myasthenia gravis, polymyositis)
• Genetic syndromes with limb paresis
• Degenerative and metabolic diseases of the nervous system
• Degenerative and rheumatic joint diseases
• Post spinal and traumatic brain injuries
• Other conditions involving paralysis, paresis, and musculoskeletal impairments

Standard equipment:

• Folding frame
• Push handles
• 5-point height-adjustable harness (Grab & Pull™ system)
• Variable seat-to-backrest angle (85°–95°)
• Adjustable headrest
• BodyPrint™ upholstery with variable tension zones in seat and backrest
• Independent rear wheel brakes
• Solid rear wheels (*excludes hand brake option)
• Solid swivel front wheels
• Independently swing-away FlipFlap™ footrests with height adjustment and 5-point foot straps
• Seat depth adjustment
• Backrest
• Backrest extension
• Reflective elements
• TransFix™ handles
• COMFORT™ upholstery:

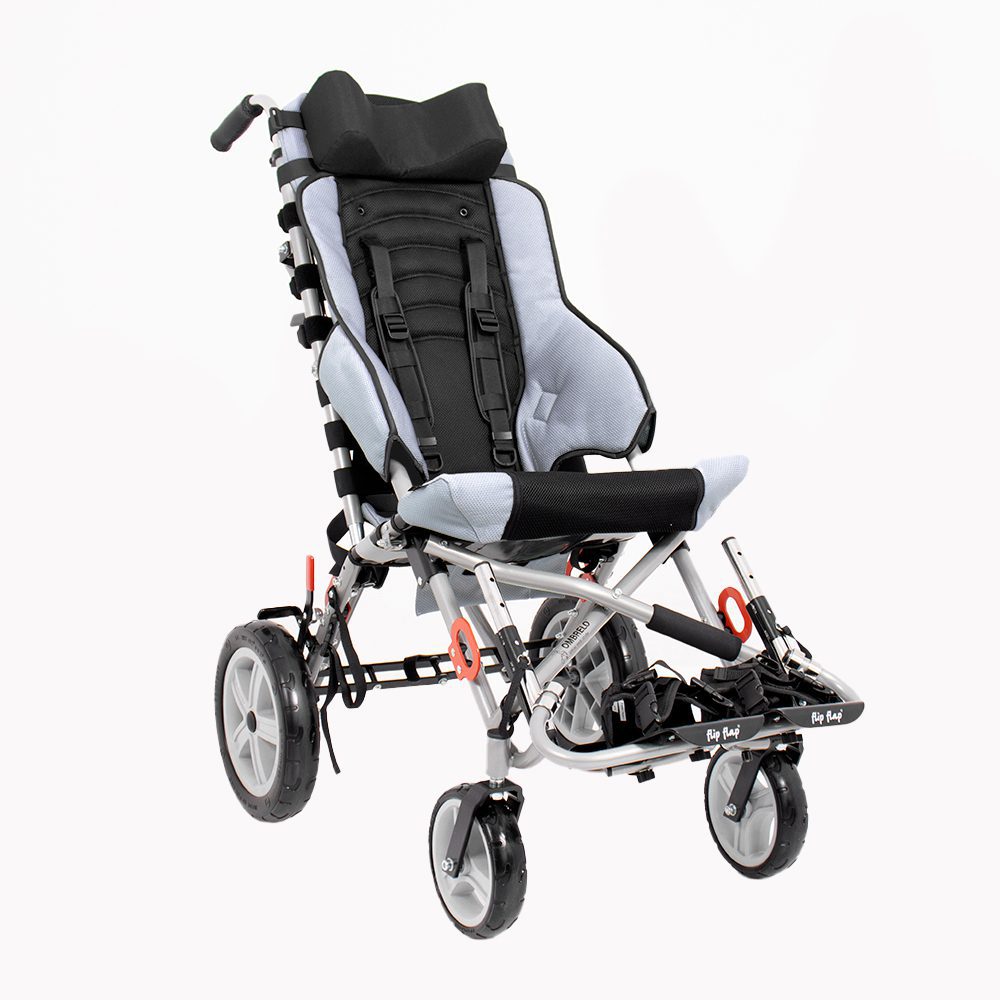

  ○ MOON (size 2)

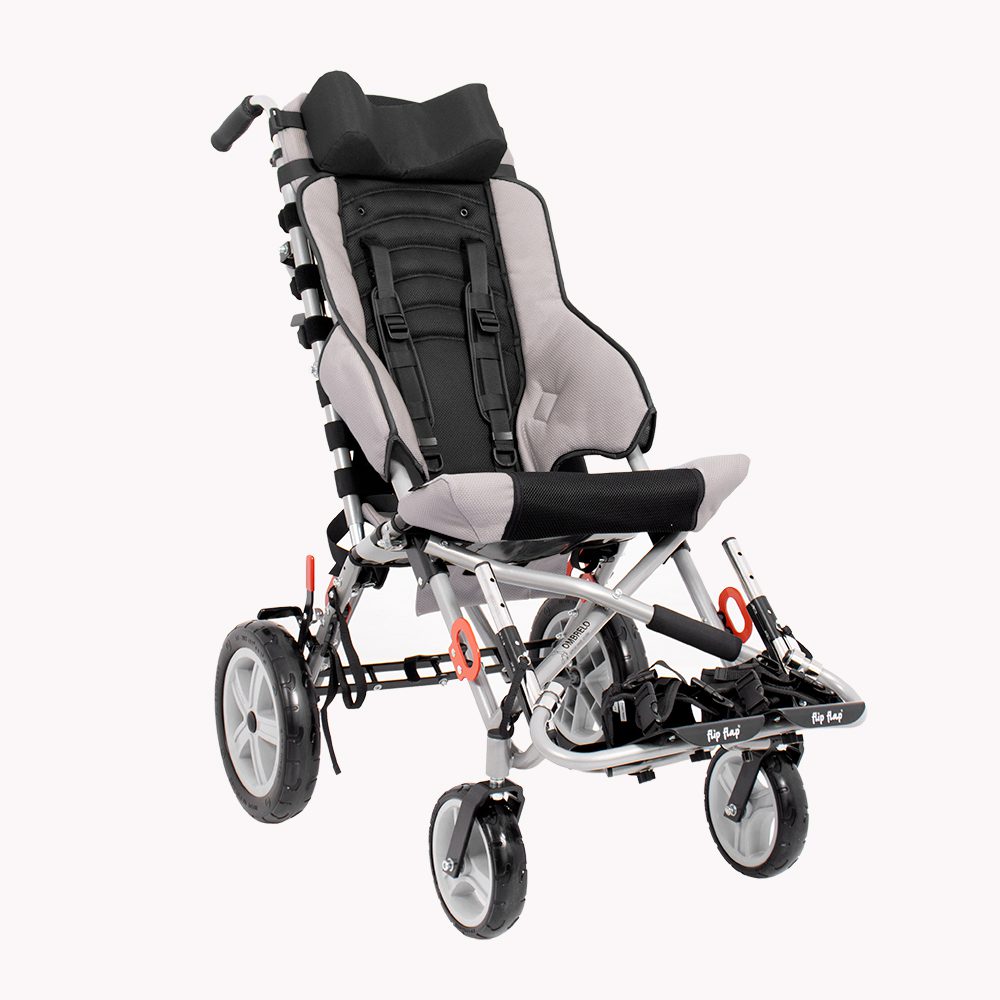

  ○ SAND (size 3)
  ○ LOFT (size 4)

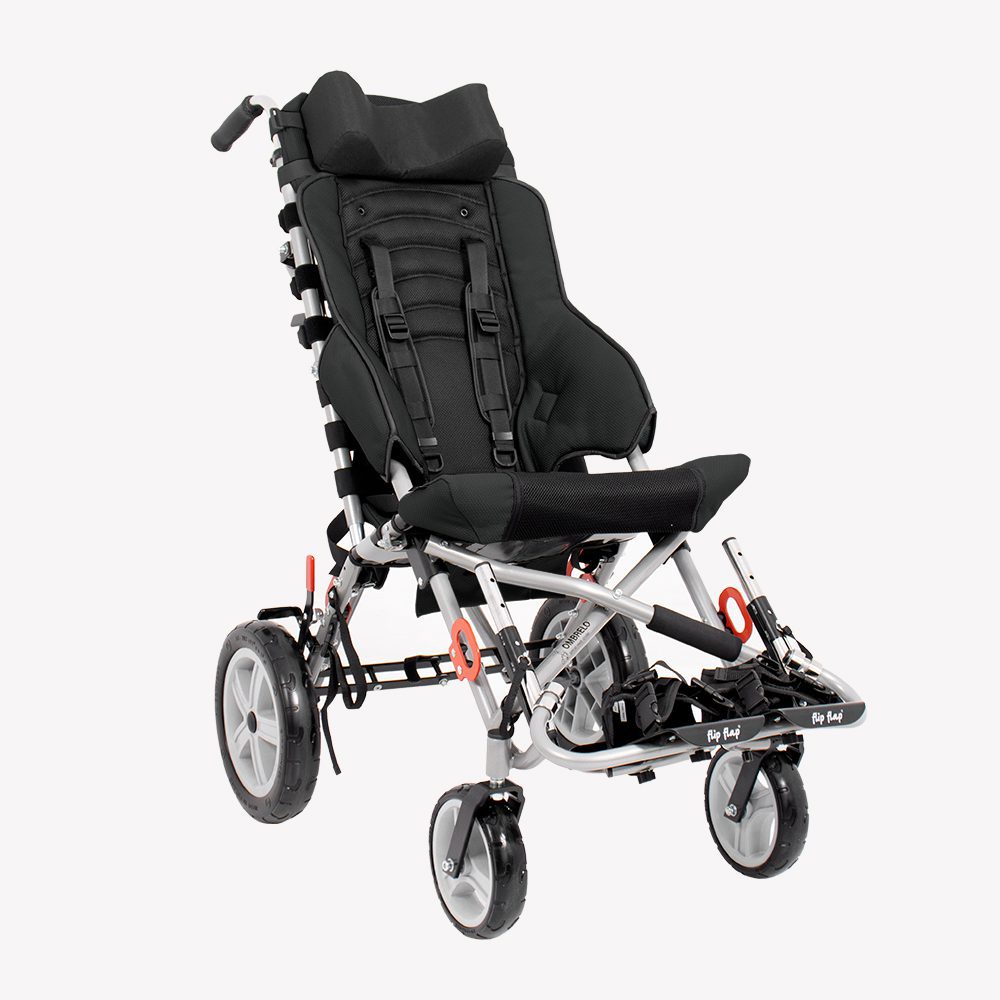

  ○ ONYX (size 5)
• FLASH backpack (11.5 L)

Optional equipment:

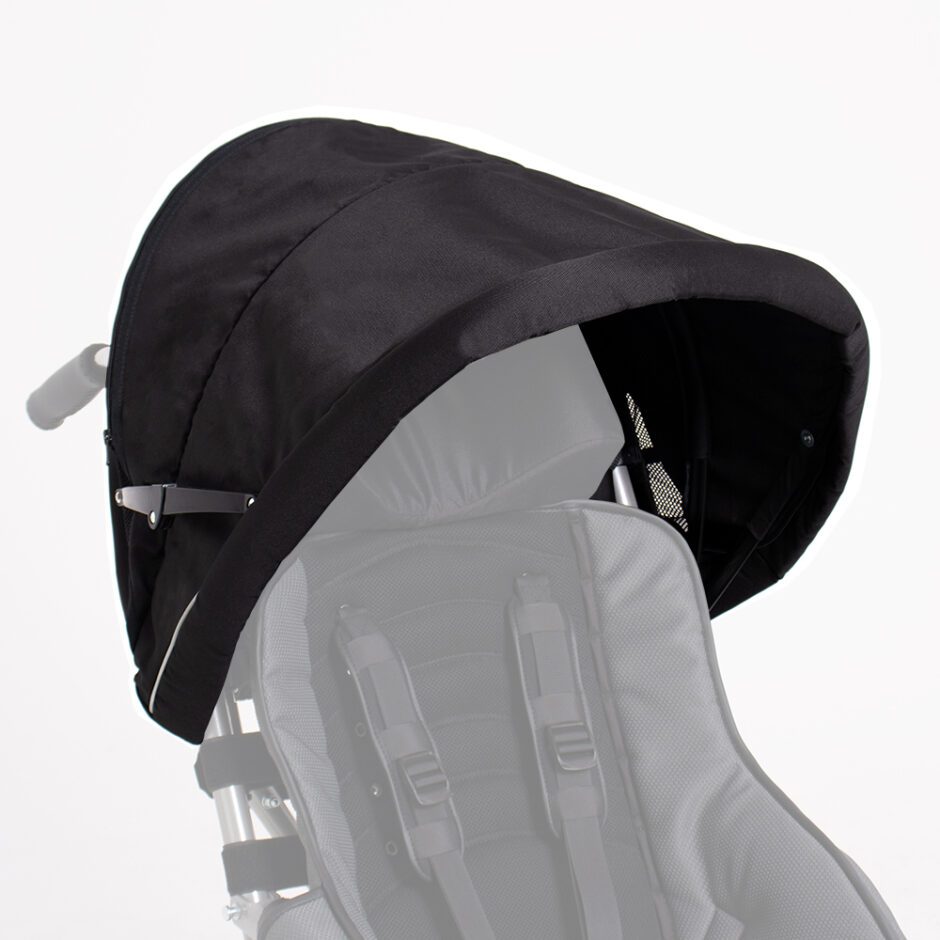

• Canopy

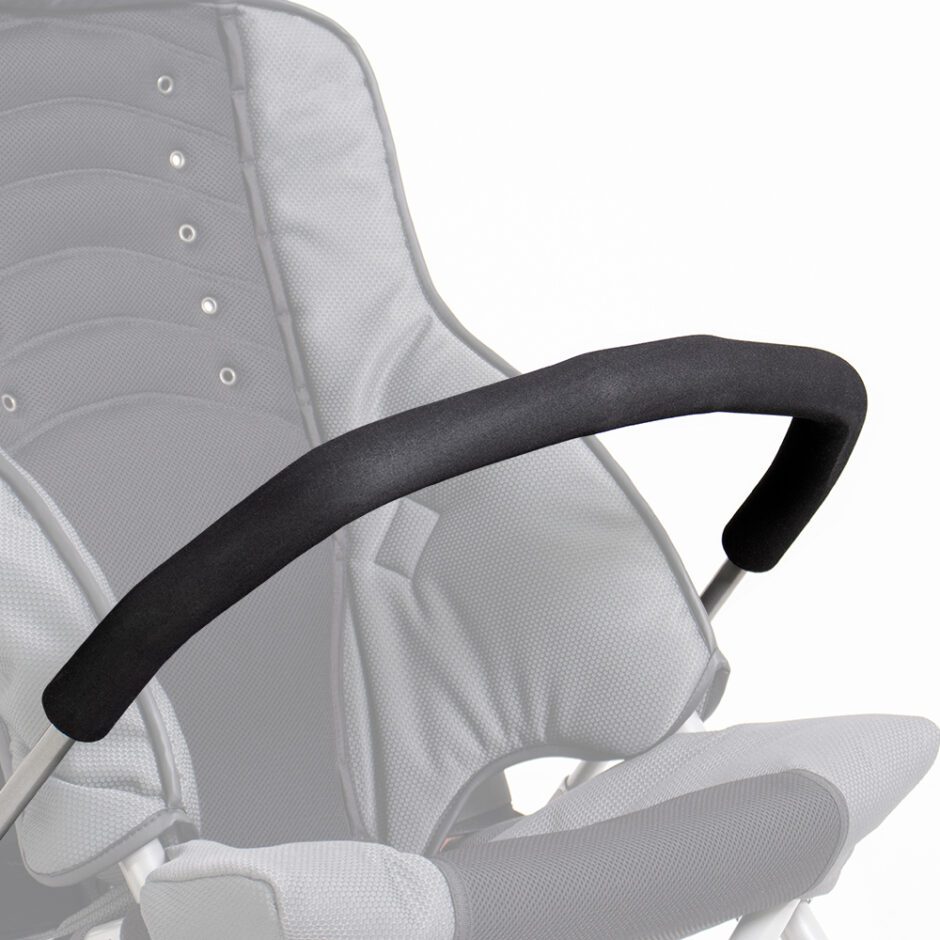

• Safety bar
• Hip abduction straps
• All Terrain wheels (*excludes hand brake)
• Pelvic belt

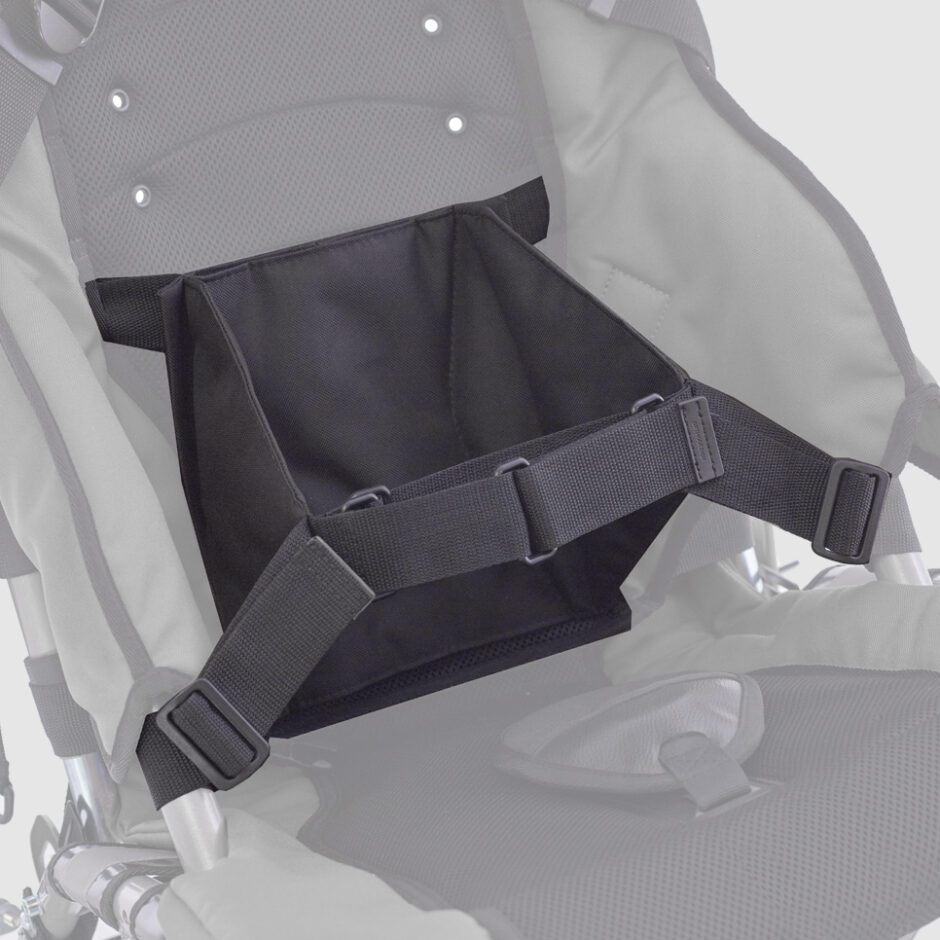

• Trunk support belt

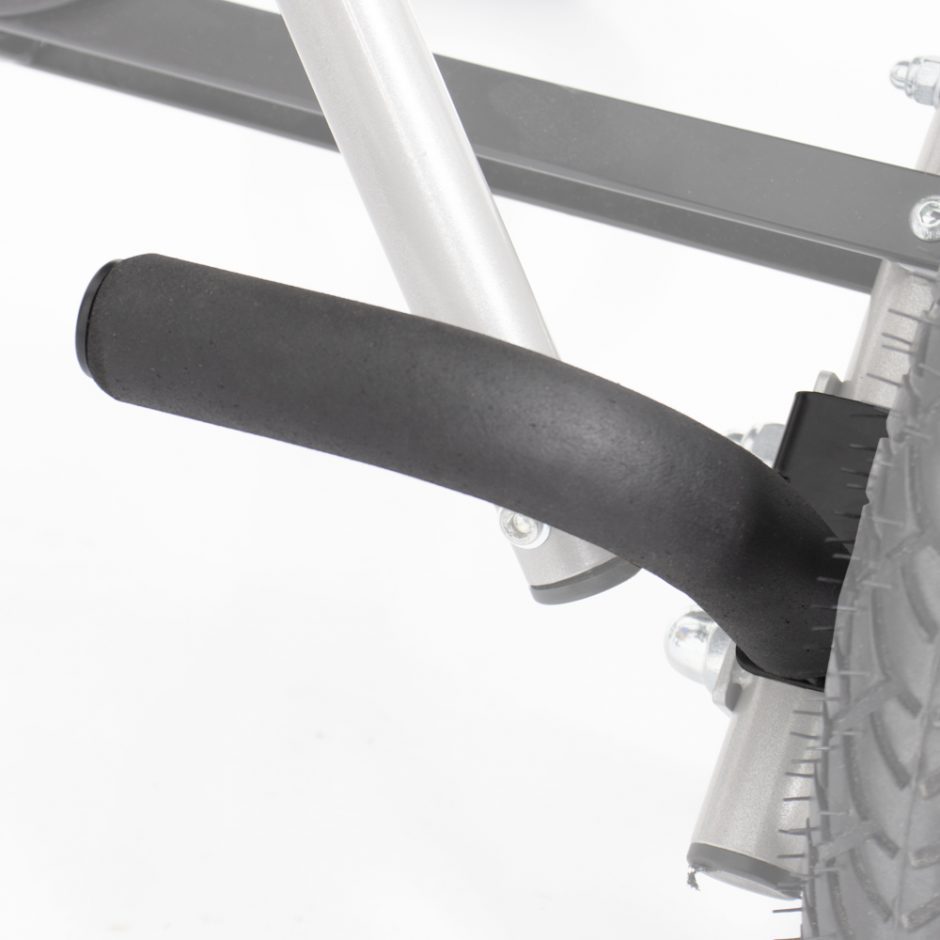

• Support footplate
• Patient transfer belt
• Vest (*only with pelvic stabilization system)

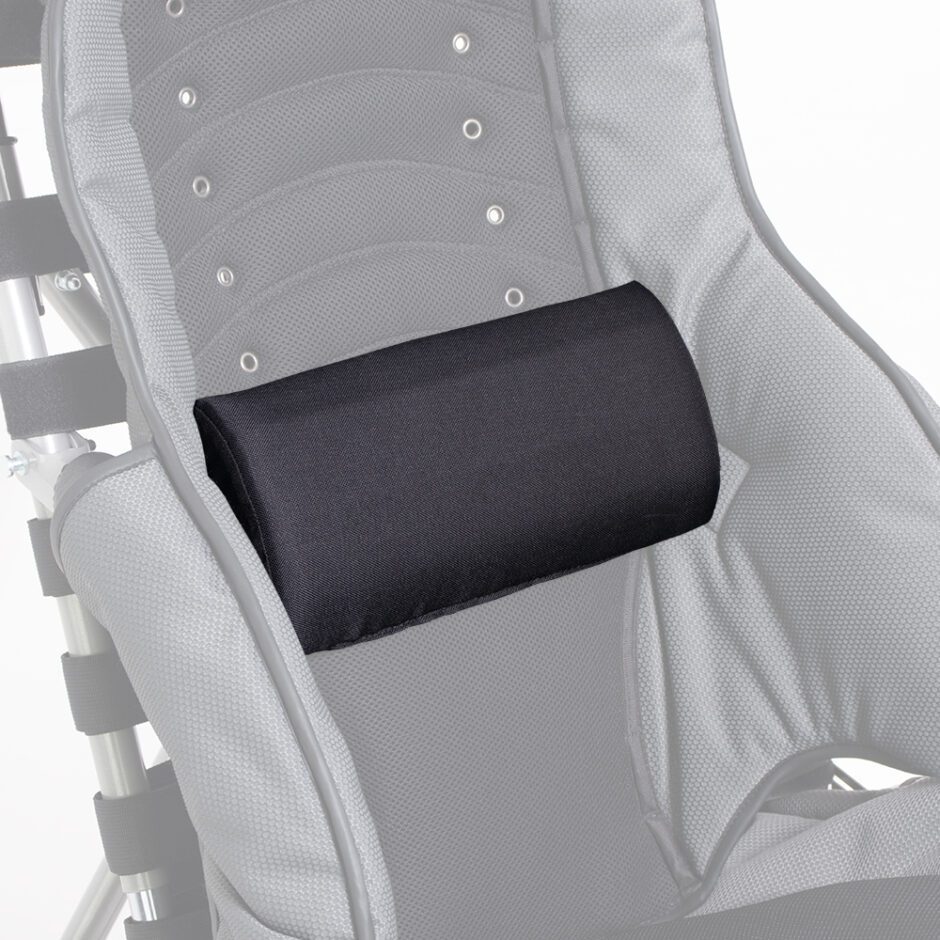

• Lumbar support pad
• Adjustable abduction wedge
• OCTAGON™ anatomical headrest with head support
• Dynamic ankle stabilizers
• Anatomical thigh abduction straps

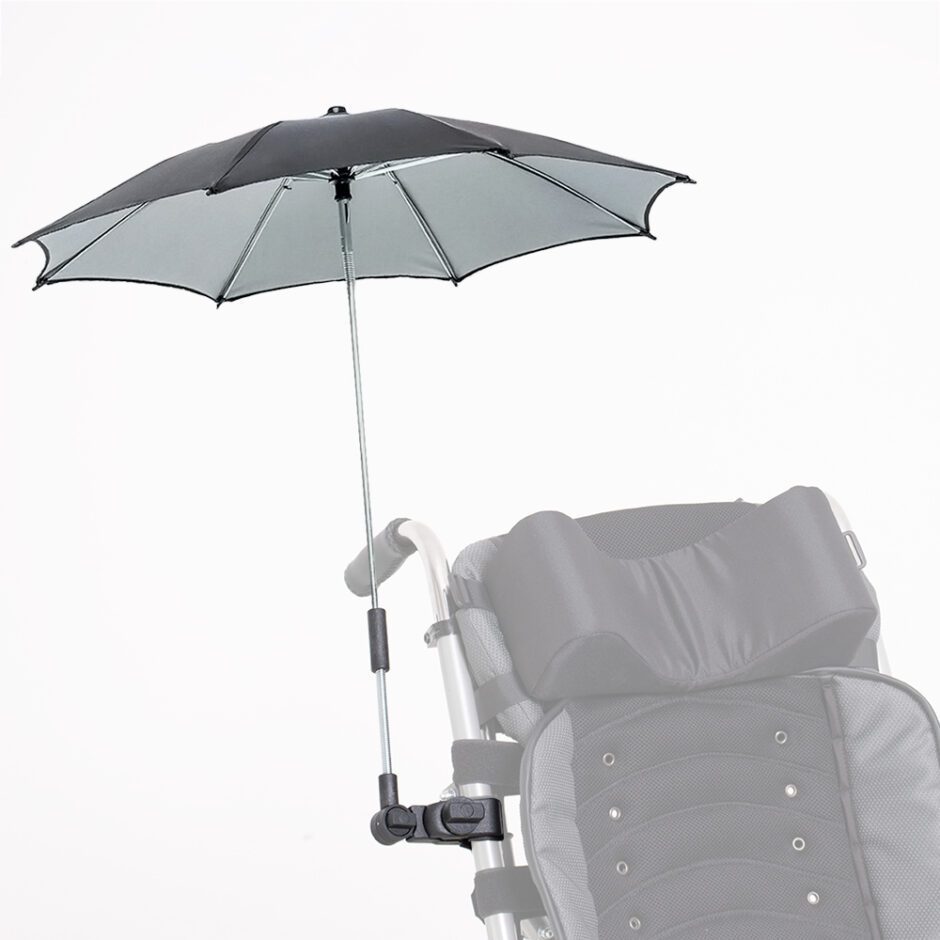

• Umbrella
• Tray

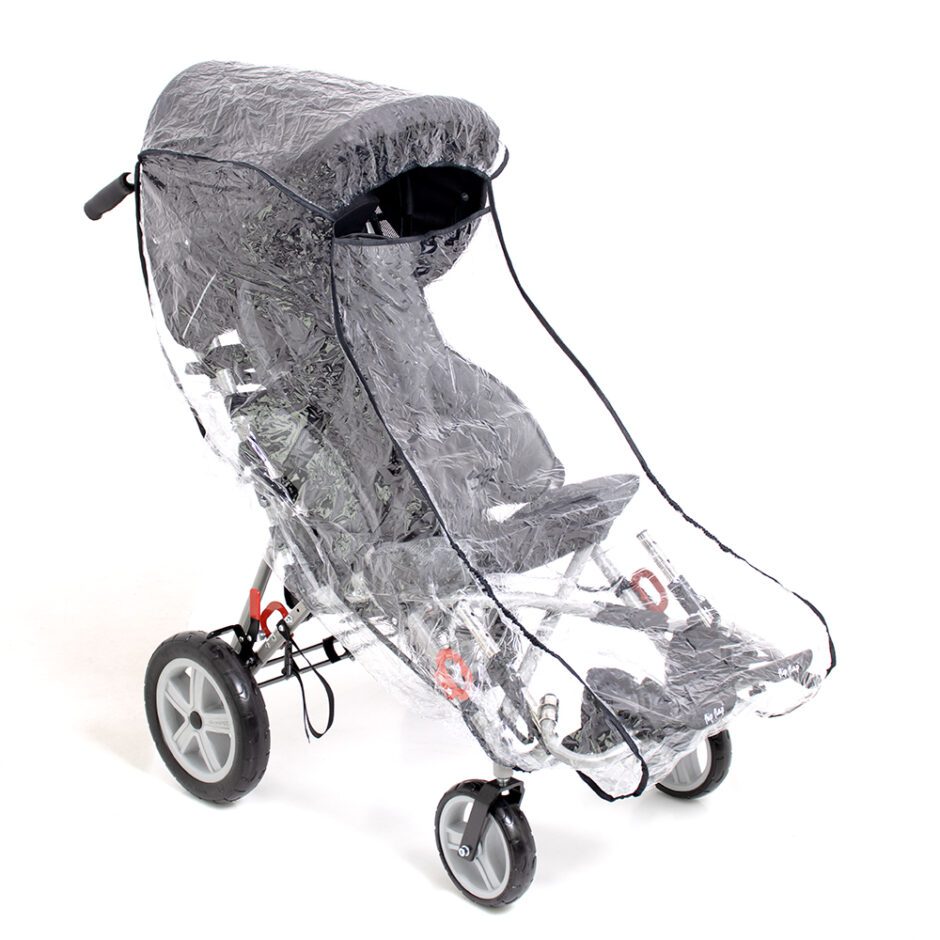

• Rain cover (*only with canopy)
• Wheel covers
• Winter footmuff with hand mittens

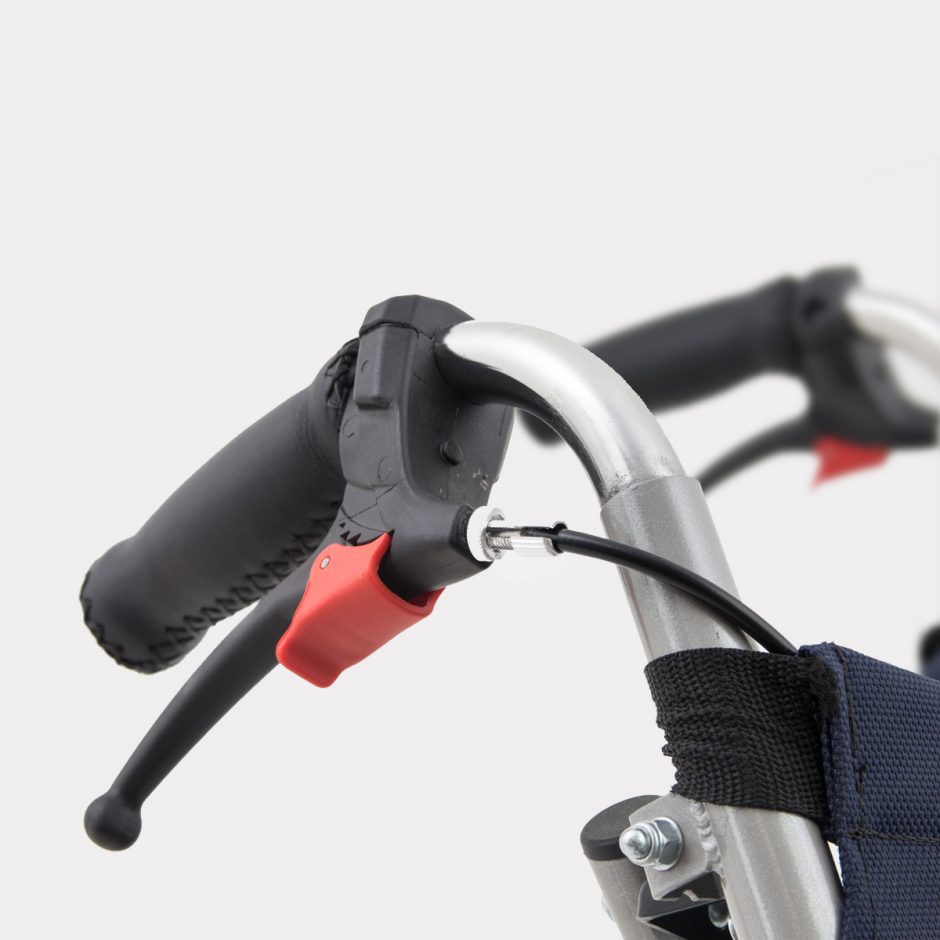

• Hand brake (*only with pneumatic wheels)
• Winter mittens
• Full seat cushion with bolster (*excludes abduction wedge)
• Anti-slip tray pad
• Under-seat basket
• Transport cover for wheelchair

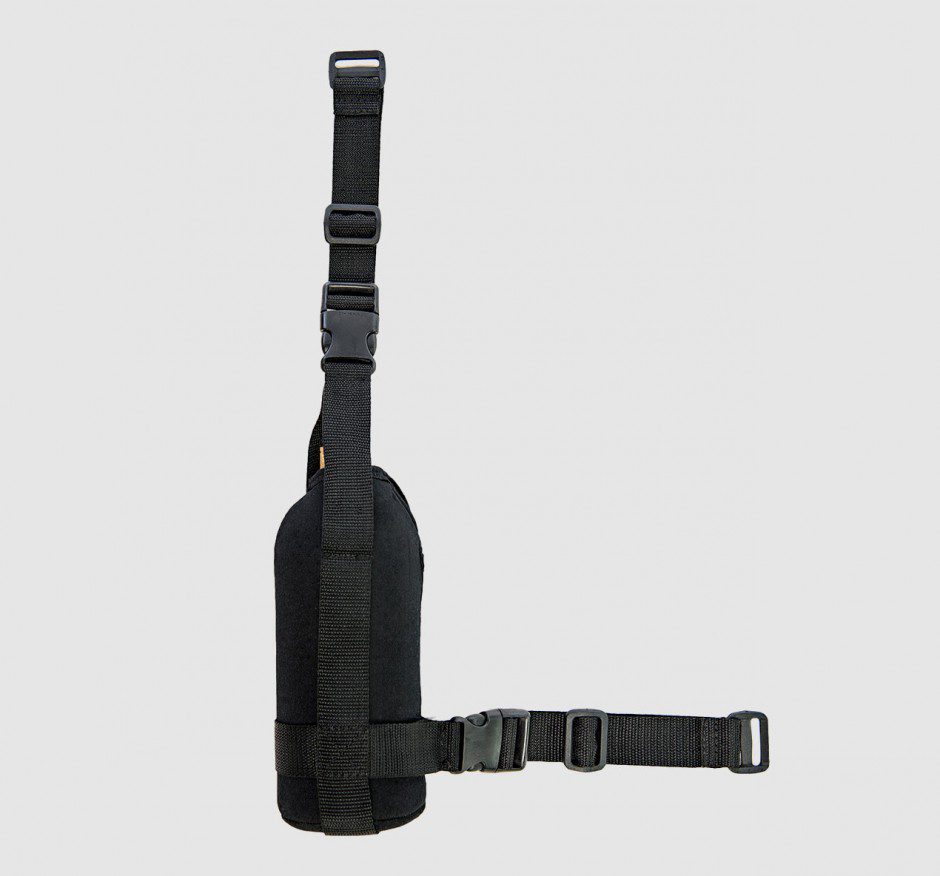

• Oxygen cylinder bag
• Organizer
• EasyGo travel/flight bag
• Flex Bag (with changing mat and thermal pocket)
• NORDIC backpack (25 L)
• HYDRO™ upholstery:
  ○ SEA

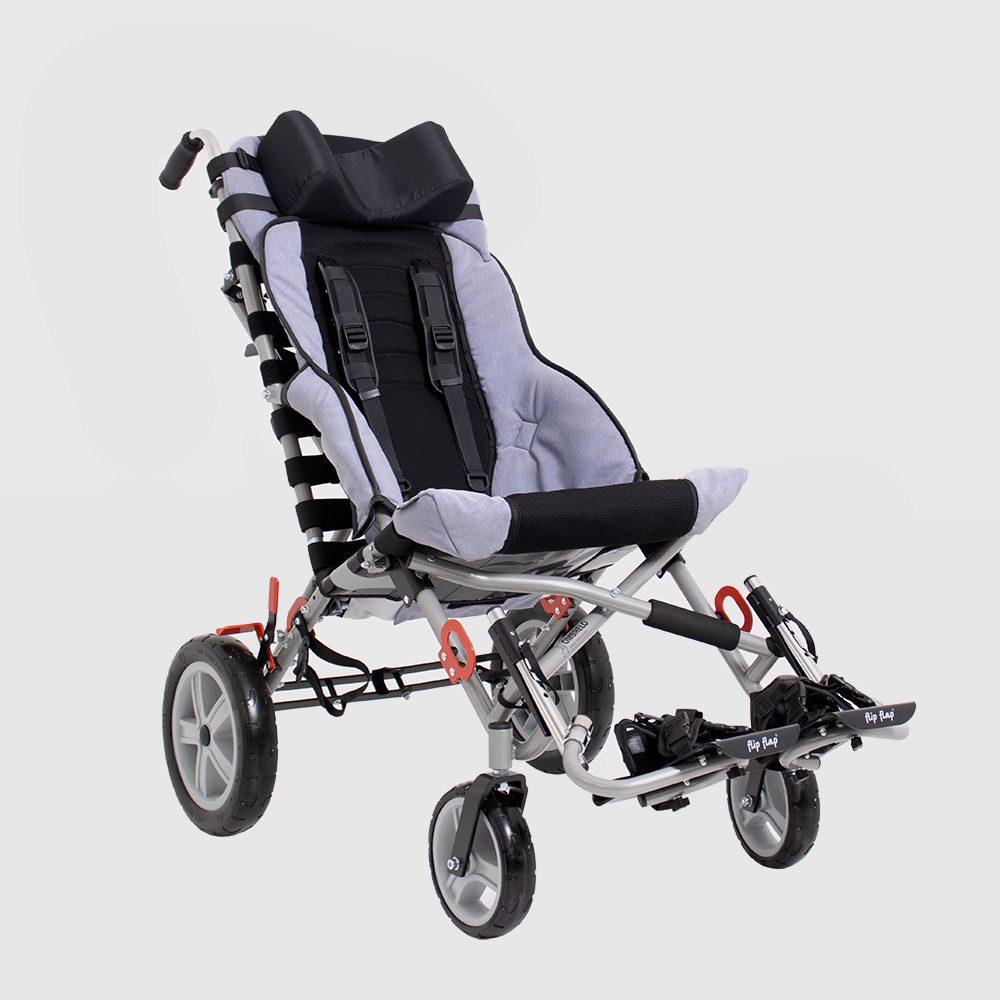

  ○ SKY
• COMFORT™ upholstery:

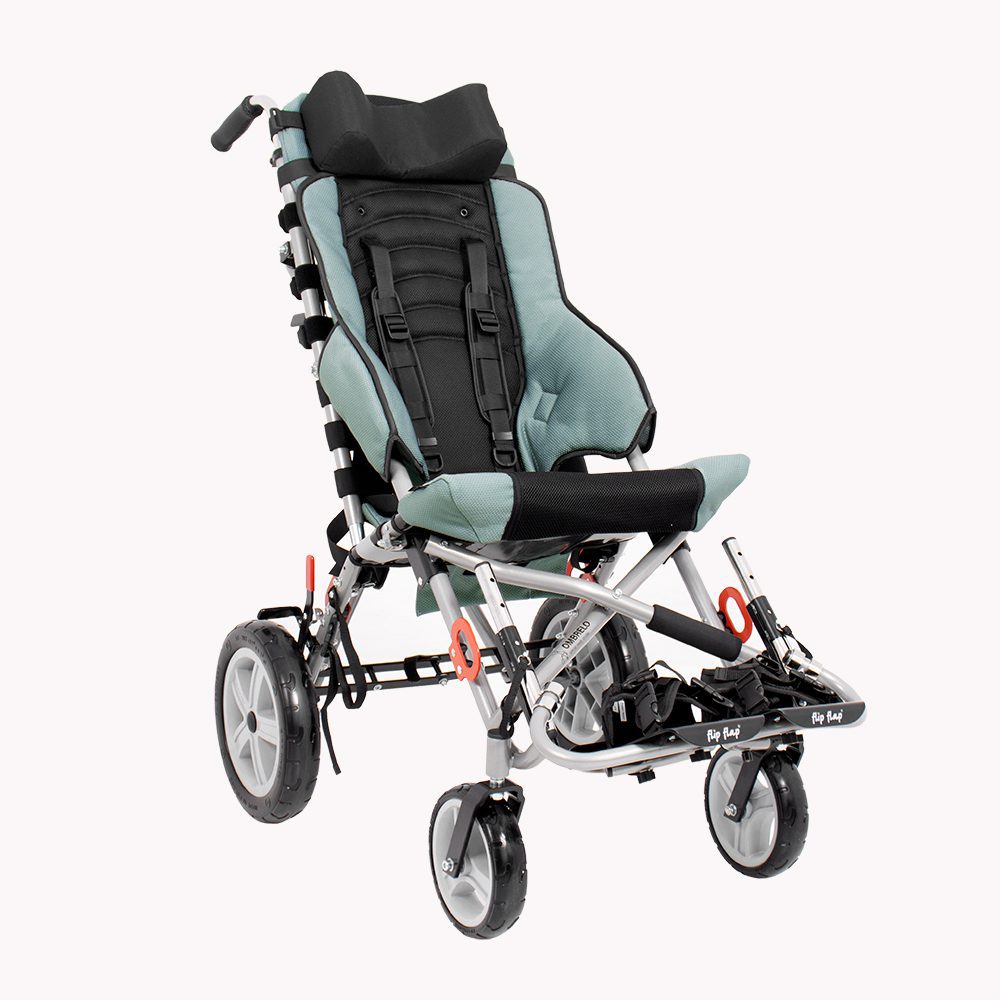

  ○ ALOE
  ○ ROSE
• LED lights

Colour range:

1. COMFORT™ upholstery:

Size 2	Size 3	Size 4	Size 5



2. HYDRO™ upholstery
(optional):

SEA	SKY



3. COMFORT™ upholstery
(optional):

ALOE	ROSE



Accessories:

Oxygen cylinder bag	Safety bar	Canopy

Lumbar support pad	Rain cover	Umbrella

Support footplate	Trunk belt	Hand brake

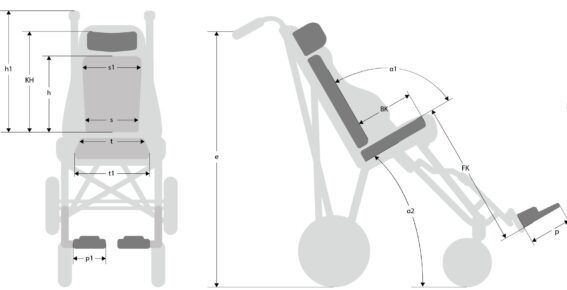

Size chart:

Symbol	Measurement	Unit	Size 2	Size 3	Size 4	Size 5
FH	Approximate user height	[cm]	100 – 140	110 – 150	120 – 180	130 – 180
t	Seat width (rear section)	[cm]	28	33	38	42
t1	Seat width (front section)	[cm]	36	41	46	50
BK	Seat depth	[cm]	28 – 36	28 – 40	28 – 40	34 – 42
s	Lower backrest width	[cm]	27	32	37	41
s1	Upper backrest width	[cm]	30	35	40	45
h	Backrest height without extension	[cm]	57	57	61	61
h1	Backrest height with extension	[cm]	70 – 74	71 – 75	72 – 77	72 – 80
KH	Headrest height	[cm]	38 – 74	38 – 75	40 – 77	40 – 80
FK	Footrest distance from seat	[cm]	15 – 66	15 – 66	15 – 66	15 – 66
p	Footplate length	[cm]	21	22	24	24
p1	Footplate width	[cm]	12	15	15	18
e	Push handle height	[cm]	95 – 101	99 – 105	95 – 101	95 – 101
α1	Backrest angle (relative to seat)	[°]	87, 90, 95	87, 90, 95	87, 90, 95	87, 90, 95
α2	Seat tilt angle	[°]	28	28	28	28
	Max. user weight	[kg]	45	55	75	120

Technical specifications:

Size	2	3	4	5
Width	57 cm	62 cm	67 cm	72 cm
Length	100 – 139 cm	100 – 142 cm	106 – 147 cm	105 – 148 cm
Height	101 – 107 cm	105 – 111 cm	101 – 107 cm	101 – 107 cm
Folded width	35 cm	36 cm	36 cm	36 cm
Folded length	128 – 135 cm	131 – 138 cm	131 – 138 cm	130 – 137 cm
Folded height	41 cm	41 cm	41 cm	41 cm
Weight	19.5 kg	21 kg	21.5 kg	22.5 kg

Documents:

Brochure

User manual

EC Declaration



* Akces-MED reserves the right to modify product design and specifications without prior notice as part of ongoing product improvements. Please contact our office before purchase to confirm the current configuration.

The price includes the equipment in its basic version. If you choose additional options, please contact the office for details.
