Special needs stroller Ulises Evo Pro Akces-Med

Product code: 242120 ✔ In stock

Special needs stroller with a reclining function, designed for users 80–180 cm tall. Available in 5 sizes and 2 upholstery colours.

This is a medical device. Use it according to the instructions for use or the label.

Upholstery colour

Size

Clear

Description Additional information Ask about this product Reviews (0)

Product Features:

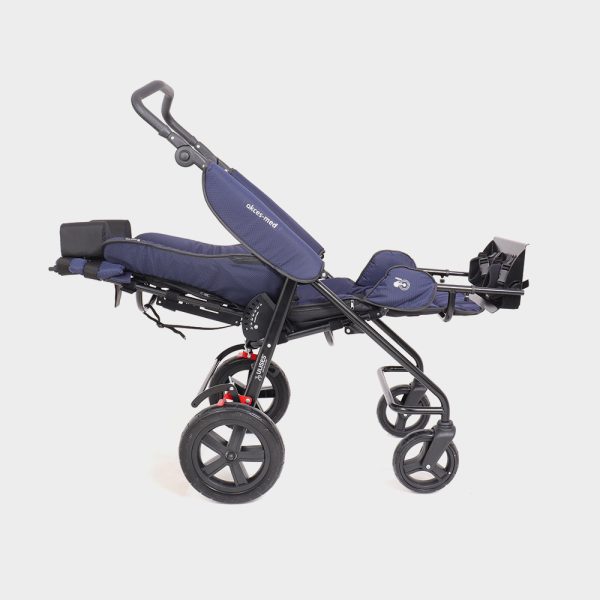

The Ulises Evo Pro wheelchair features lateral trunk stabilization, adjustable backrest and footrest, and an adjustable headrest integrated with the extended backrest. The 90°–180° adjustment range allows for a comfortable lying position.

Intended Use:

Cerebral palsy (CP)
Brain and spinal cord injuries resulting in limb paresis and impaired motor coordination
Demyelinating diseases, including multiple sclerosis (MS), amyotrophic lateral sclerosis (ALS) and others
Myelomeningocele (spina bifida)
Neuromuscular diseases, including muscular dystrophy, myasthenia gravis and polymyositis
Genetic syndromes associated with limb paresis
Degenerative and metabolic diseases of the nervous system
Degenerative and rheumatic joint diseases
Conditions following spinal cord and traumatic brain injuries
Other conditions involving paralysis, paresis and musculoskeletal impairments

Standard Equipment:

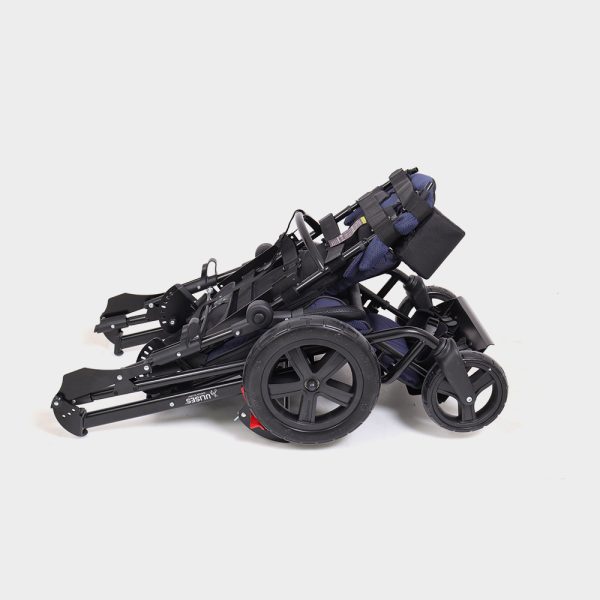

Folding frame
5-point harness with adjustable mounting height

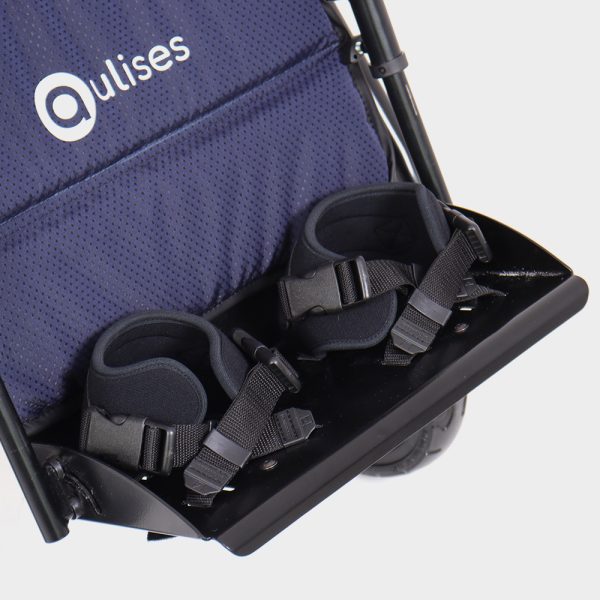

Footrest with stepless length and angle adjustment and 4-point foot stabilization straps

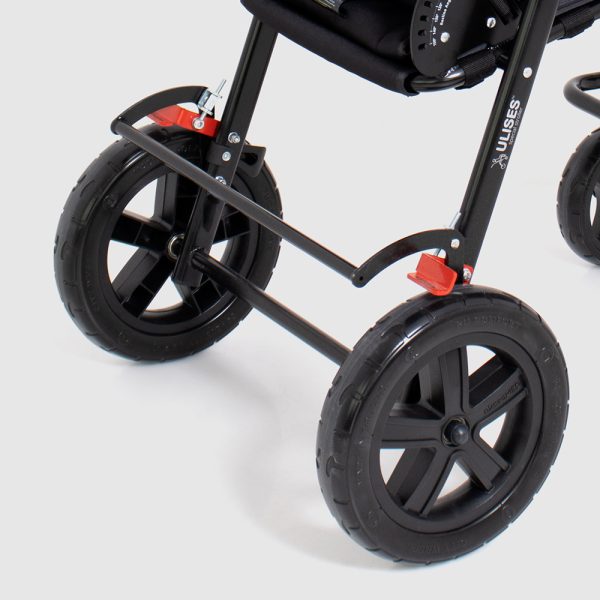

Solid rear wheels and swivel solid front wheels
Integrated rear wheel brake with adjustable braking force

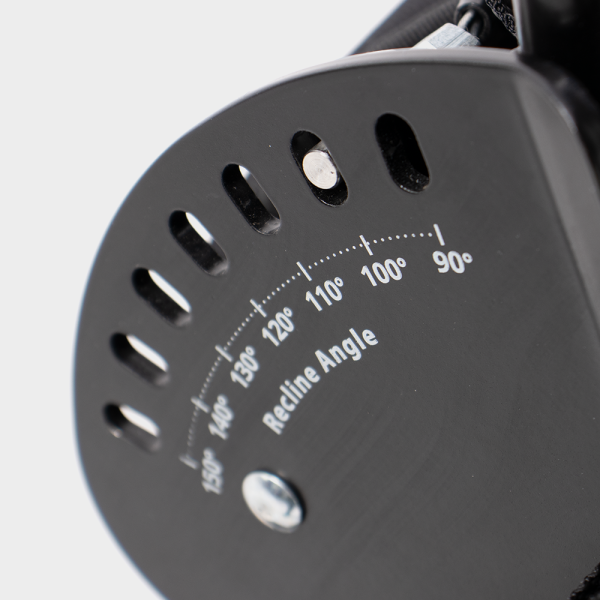

Backrest with adjustable recline angle
Ergonomic push handle
Backrest extension
Seat with stepless depth adjustment

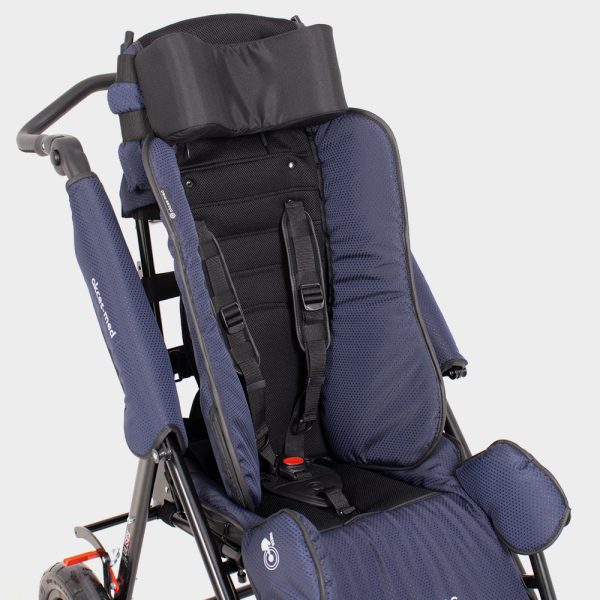

Fully adjustable headrest
Covers protecting the folding mechanism
HYDRO™ upholstery with lateral stabilization system: SPACE GREY | NEPTUNE

Optional Equipment:

Canopy
Power assist system
Power assist adapter
All-Terrain wheel
Patient transfer belt
Safety bar (*excludes tray)
Step-assist footrest
Thigh abduction straps
Pelvic belt
Safety vest (*only with pelvic stabilization equipment)
Adjustable abduction block (*excludes 5-point harness; replaced by H- or 4-point harness)
Narrow thoracic support (short | long)
Wide thoracic support
Octagon™ anatomical headrest with head support
Foot and ankle stabilizing sandals
Dynamic ankle stabilizers
Anatomical abduction straps
Parasol
Tray
Mosquito net (*only with canopy)
Cup holder
Wheel covers
Rain cover (*only with canopy)
Winter sleeping bag with hand warmers
Footrest extension with front-wheel swivel lock
Hand brake (*only with pneumatic wheels)
Fork with front-wheel swivel lock
Armrests
Winter hand warmers
Phone holder
Full seat cushion with positioning roll (*excludes abduction block)
Anti-migration tray pad
Organizer
Under-seat basket
Carrying bag
Carrying case for the wheelchair
Oxygen cylinder holder
EasyGo transport/air travel bag
FLASH backpack (11.5 L capacity)
Flex Bag with changing mat and thermal pocket
NORDIC backpack (25 L capacity)
LED lights

Colour Range:

SPACE GRAY	NEPTUNE

Accessories:

Winter sleeping bag	Tray	Angle adjustment	Canopy

Umbrella	Mosquito net	Rain cover	Front wheel fork

Under-seat basket	Thoracic supports	Power assist system	Safety bar

Step-assist footrest	Power assist adapter	Hand brake	Armrests

Size Chart:

Symbol	Measurement	Unit	Size 1	Size 1A	Size 2	Size 2A	Size 3
FH	Approx. user height	cm	80–120	100–150	100–150	130–180	130–180
t	Seat width without lateral supports	cm	31	31	37	37	43
t1	Seat width with lateral support pads	cm	25	25	27	27	33
t2	Seat width at knee level	cm	26	26	32	32	38
BK	Seat depth	cm	21–30	29–37	29–37	35–45	35–45
k	Seat height from ground*	cm	52–54	54–56	54–56	59–61	59–61
s	Backrest width without lateral supports	cm	28	28	34	34	40
s1	Backrest width with lateral support inserts	cm	25	25	28	28	34
s2	Backrest width with inserts and lateral support pads**	cm	17	17	22	22	26
h	Backrest height without extension	cm	52	59	59	66	66
h1	Backrest height with extension	cm	63–68	70–75	70–75	77–82	78–83
KH	Headrest height	cm	38–63	40–71	40–71	47–78	48–79
FK	Footrest length	cm	19–27	23–35	23–35	26–41	26–41
p	Footplate length	cm	17	17	19	19	22
e	Push handle height	cm	78–120	75–124	75–124	75–124	75–124
α1	Backrest recline angle	°	90–150	90–150	90–150	90–150	90–150
α2	Seat tilt angle	°	14	14	14	14	14
α3	Footrest angle	°	90–162	90–162	90–162	90–162	90–162
	Maximum user weight	kg	55	55	75	75	75

* Seat height depends on seat depth.
** Measurement refers to the lower section of the backrest.

Additional Measurements:

Measurement	Size 1	Size 1A	Size 2	Size 2A	Size 3
Armrest height from seat	21–33 cm	21–36 cm	21–36 cm	21–36 cm	21–36 cm
Armrest length	26 cm	26 cm	26 cm	26 cm	26 cm
Armrest width	5 cm	5 cm	5 cm	5 cm	5 cm
Distance between armrests	25 cm	25 cm	31 cm	31 cm	37 cm
Short thoracic support height	22–35 cm	22–38 cm	22–38 cm	22–38 cm	22–38 cm
Long thoracic support height	22–35 cm	22–38 cm	22–38 cm	22–38 cm	22–38 cm
Wide thoracic support height	26–39 cm	26–42 cm	26–42 cm	26–42 cm	26–42 cm
Distance between thoracic supports	9–19 cm	15–25 cm	15–25 cm	21–31 cm	21–31 cm

Technical Specifications:

Specification	Size 1	Size 1A	Size 2	Size 2A	Size 3
Width	58 cm	58 cm	64 cm	64 cm	70 cm
Folded width	58 cm	58 cm	64 cm	64 cm	70 cm
Length	80–134 cm	82–155 cm	35–155 cm	96–176 cm	99–178 cm
Folded length	98 cm	104 cm	104 cm	116 cm	116 cm
Height	100–120 cm	101–124 cm	101–124 cm	104–131 cm	104–131 cm
Folded height	41 cm	43 cm	45 cm	45 cm	46 cm
Weight	20 kg	20.5 kg	21 kg	23 kg	24 kg

* Dimensional tolerance: ±1 cm.

Documents:

Akces-MED reserves the right to modify the design and specifications of its products without prior notice as part of continuous product improvement. Before purchasing, please contact our office to confirm the current product configuration.

The price includes the standard equipment version. For additional options, please contact our office for details.

Front wheels	Solid
Rear wheels	Solid
Frame colour	Black
Upholstery colour	Grey, Navy blue
Material	Aluminium
Size	1, 1a, 2, 2a, 3
Manufacturer	Akces-Med
Product code	242120
