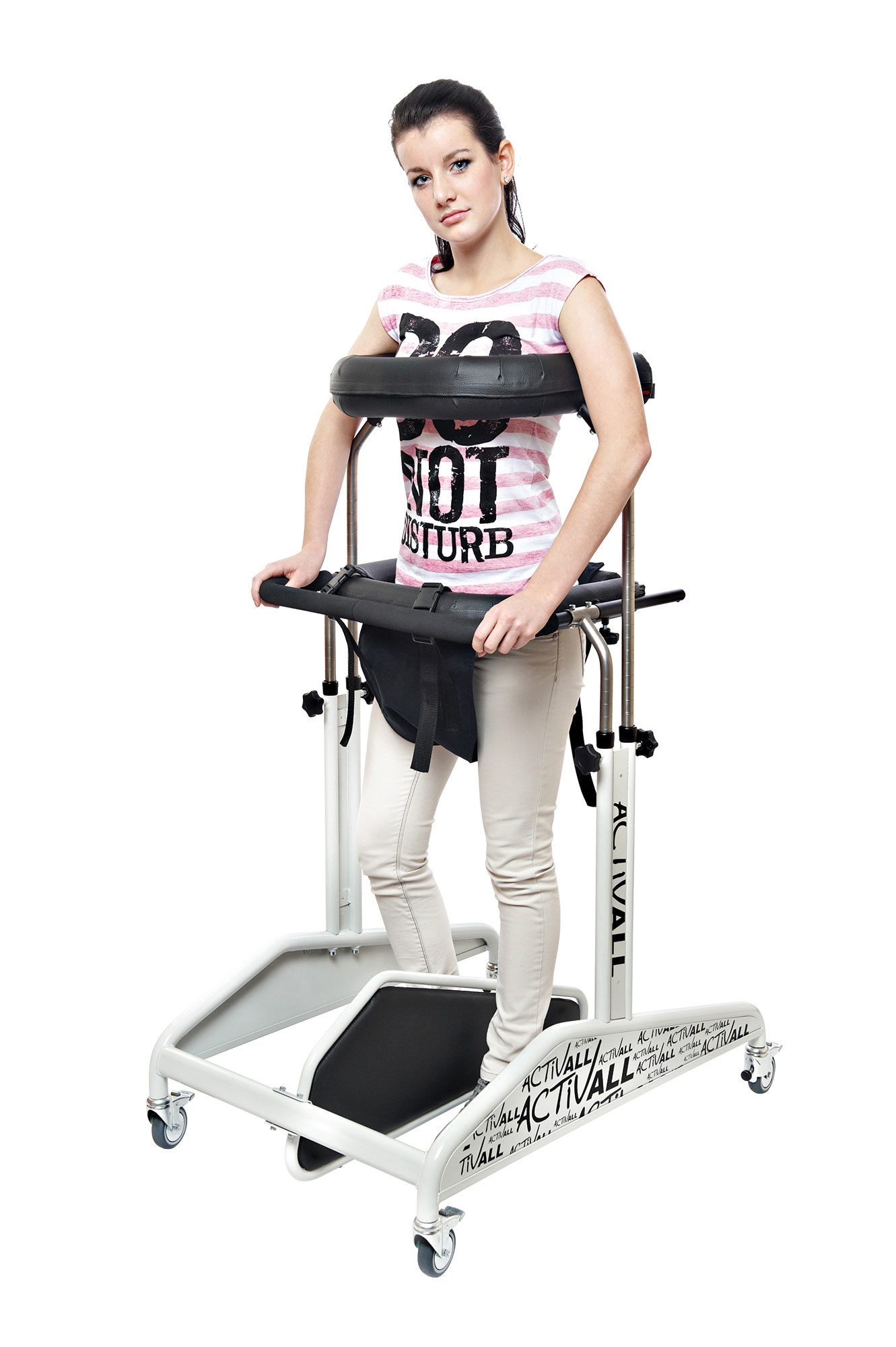

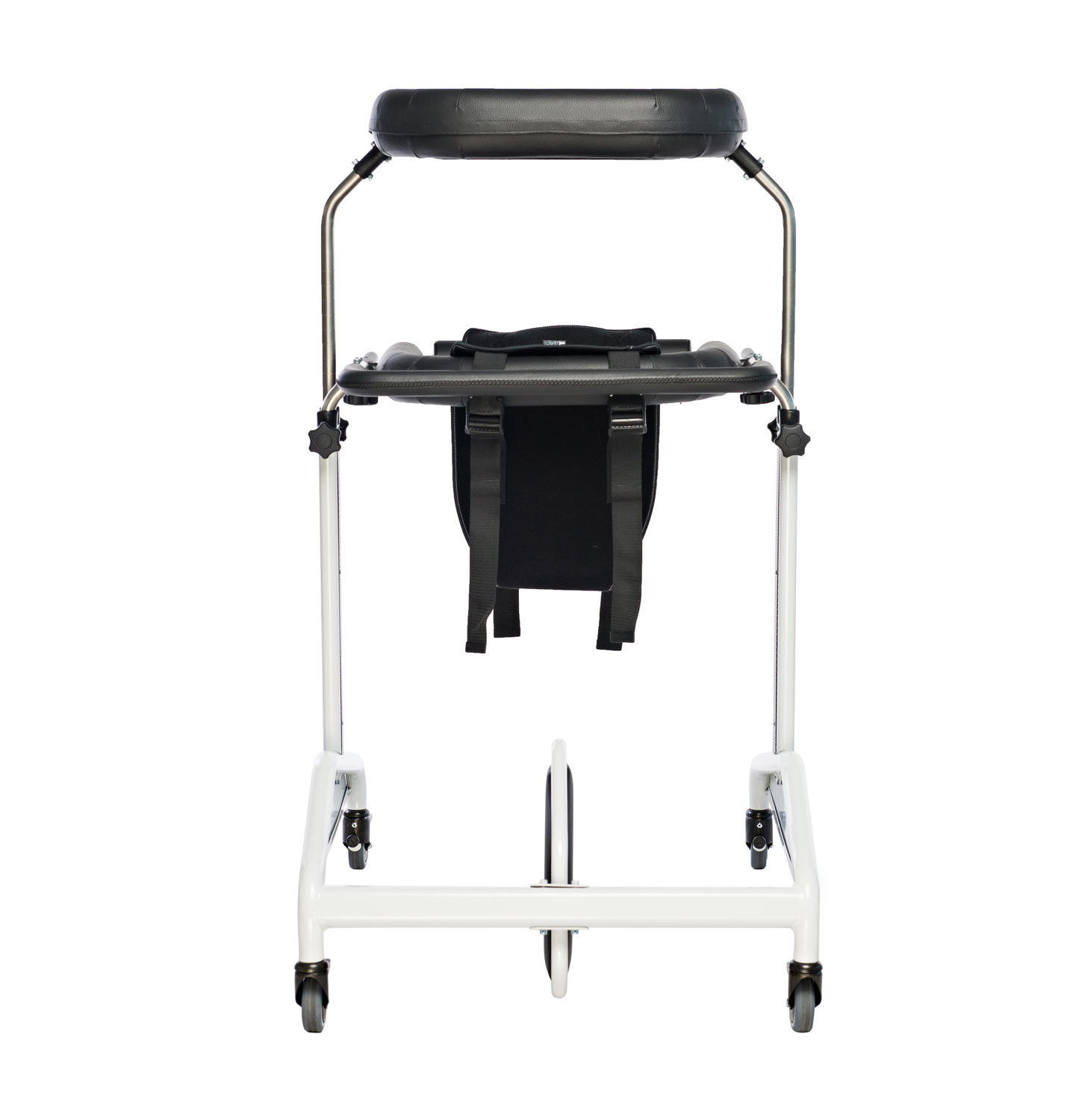

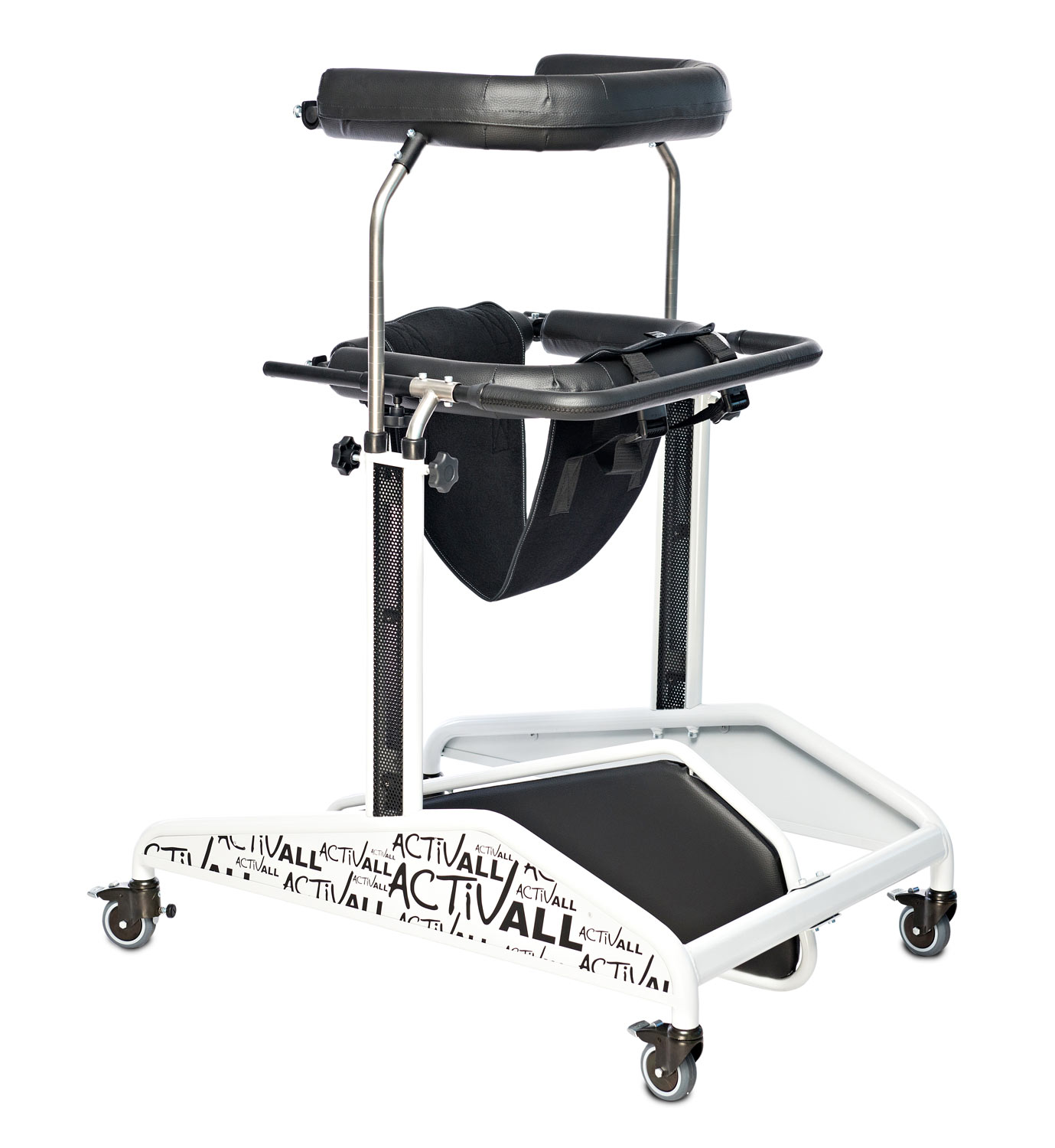

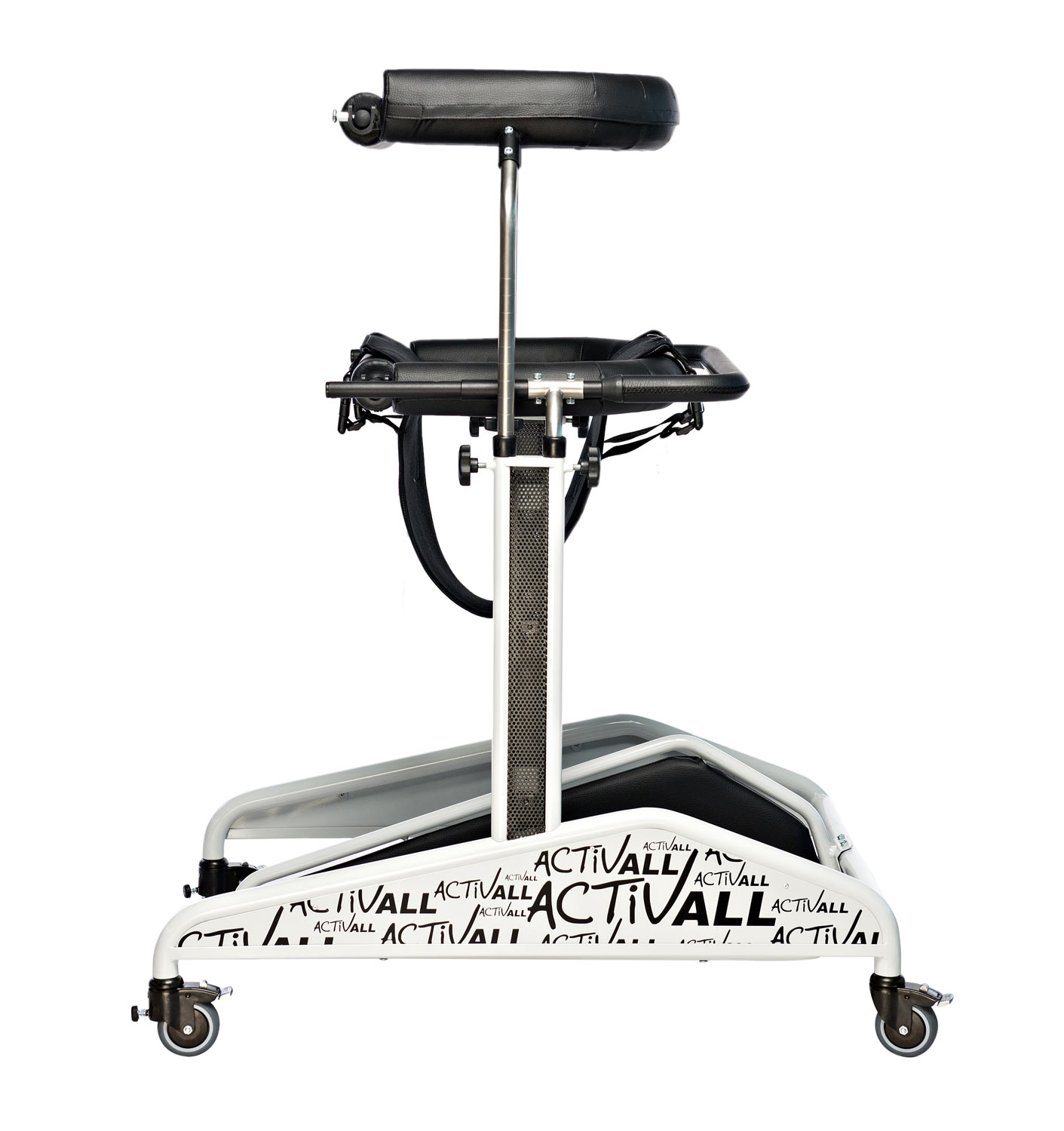

Activall standing frame Akces-Med

Description

Application:

• Cerebral palsy (CP) – various types and forms.
• Brain and spinal cord injuries of various etiologies with limb paresis, severe balance disturbances, and coordination impairments.
• Demyelinating diseases (multiple sclerosis – MS, amyotrophic lateral sclerosis – ALS, and others).
• Meningocele.
• Muscle diseases with paresis and paralysis (including dystrophy, myasthenia gravis, polymyositis).
• Genetic syndromes with limb paresis.
• Degenerative and metabolic diseases of the nervous system.
• Degenerative and rheumatic joint diseases.
• Other diseases with limb paresis, paralysis, and musculoskeletal impairments.
• After injuries, following traumatic brain injuries or spinal cord injuries with limb paresis and paralysis, particularly with quadriplegia (as part of the rehabilitation process or as permanent orthopedic support).

Features:

• Stable structure – The device ensures adequate stability and safety of user.
• Easy to use – Intuitive way of adjustment and easy assembly.
• 2 in 1 – The product has 2 utility functions for use in 1 single device.
• Independence – The patient can stand upright by themselves or walk independently.
• 24-month warranty – We offer 24-month warranty on the product. We also provide after sales service.









































Standard equipment:

• Adjustable chest support

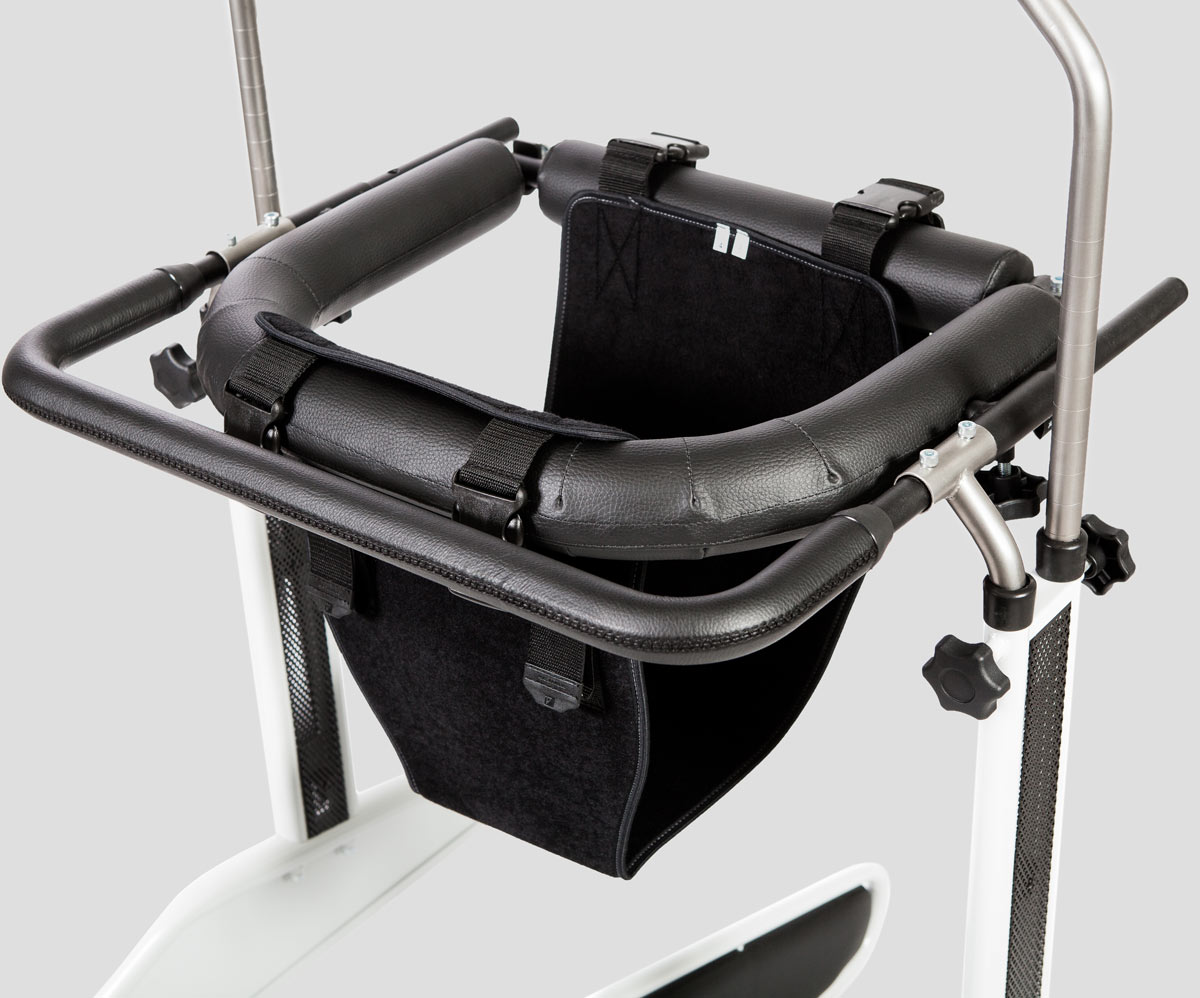

• Adjustable pelvic support
• Adjustable hand grip
• Pelvic harness
• Lower limbs separator

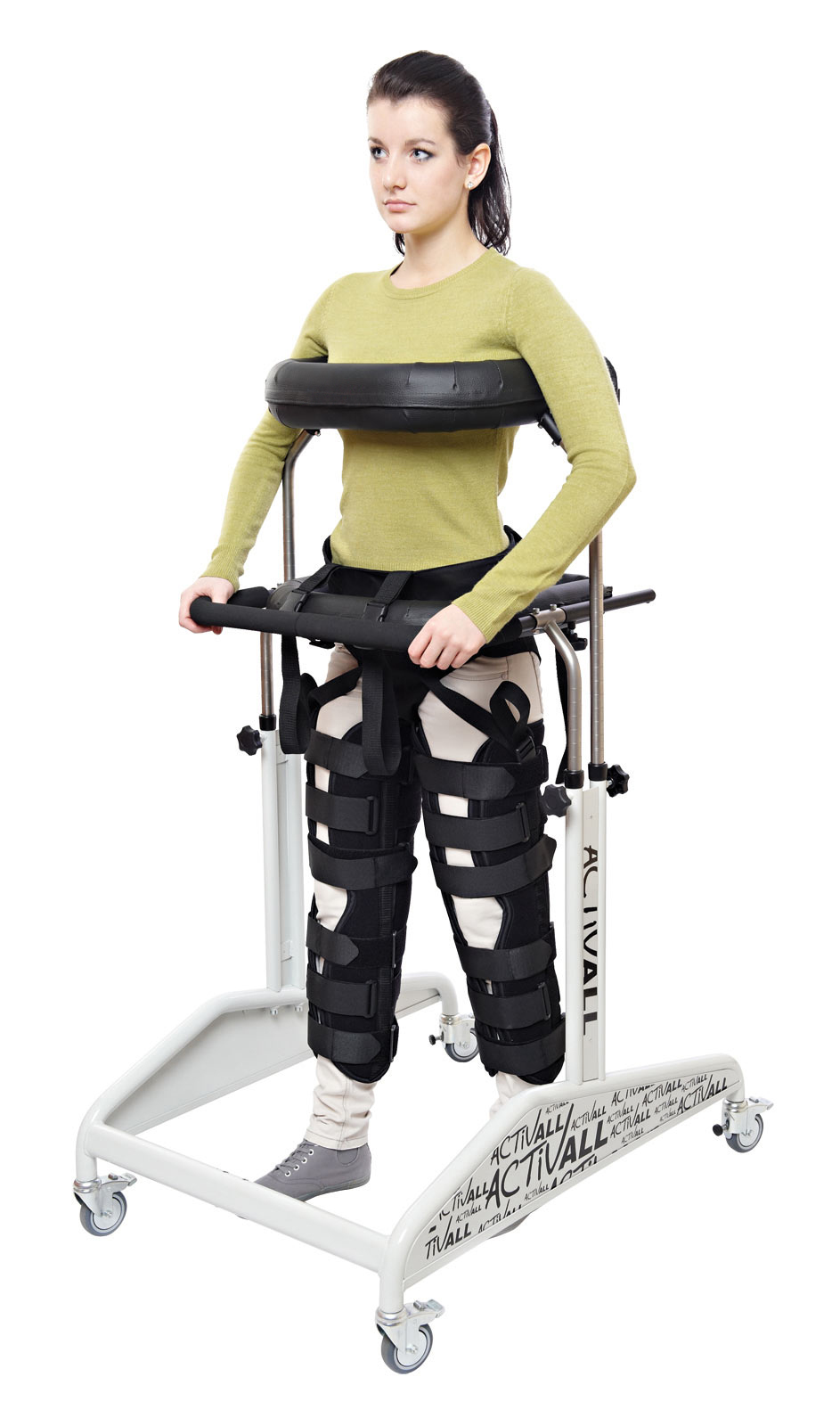

• Stabilizer of the lower limbs

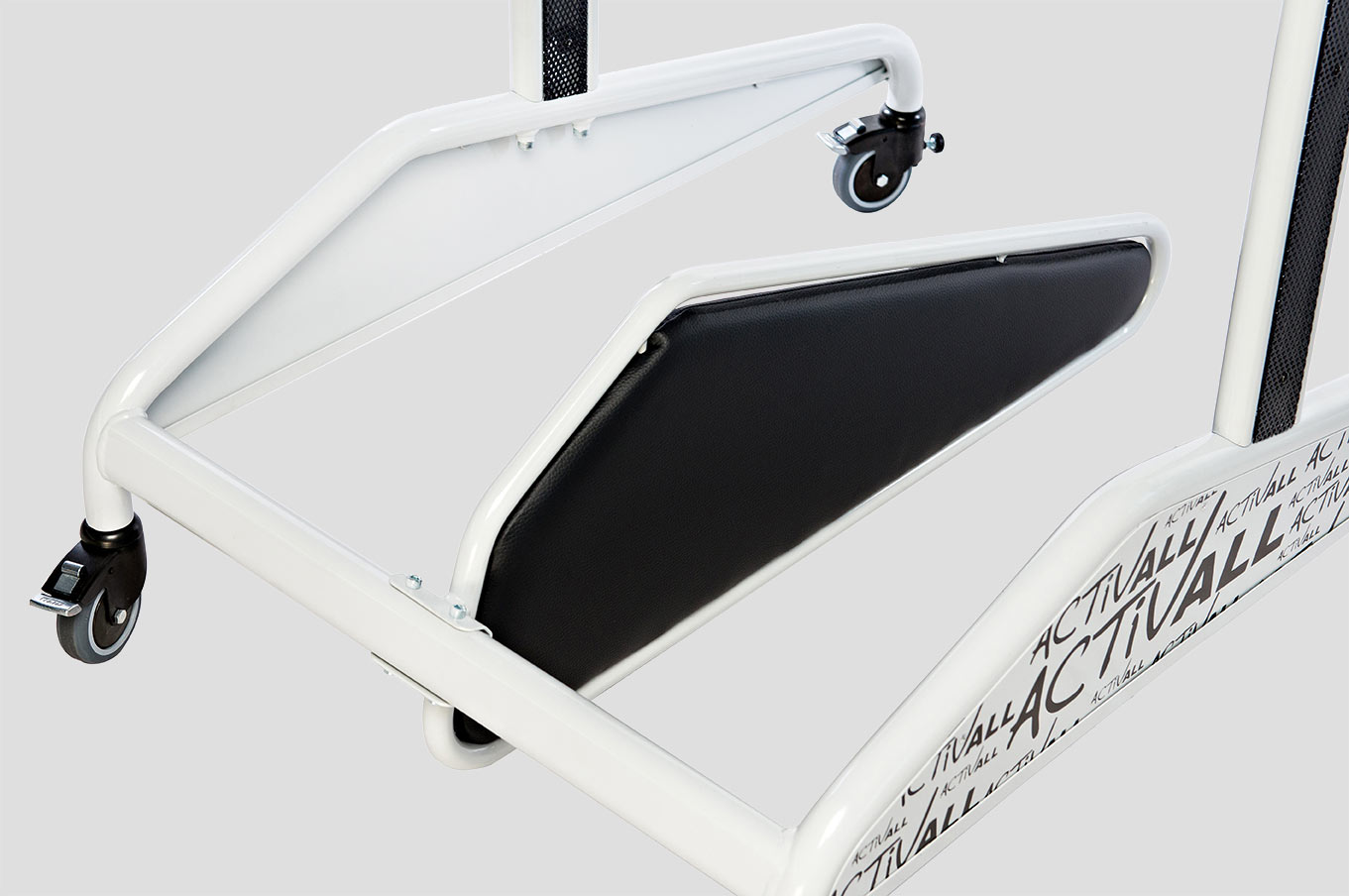

• Frame with castors equipped with brakes

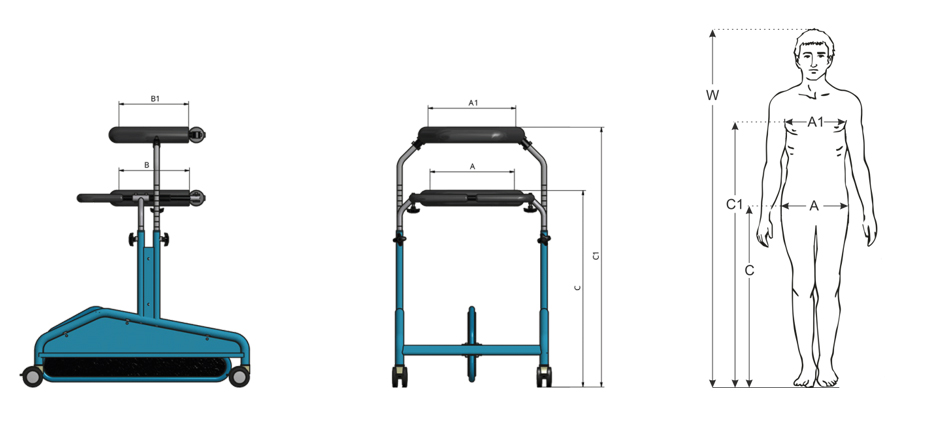

Available sizes:

Symbol	Measurement	Unit	Size 1	Size 2	Size 3	Size 4	Size 5
W	Indicative user height	[cm]	70 – 100	100 – 130	110 – 150	110 – 170	140 – 200
A/A1	Pelvic/chest support width	[cm]	26	28	31	37	42
C	Pelvic support height	[cm]	44 – 60	66 – 82	77 – 102	83 – 112	98 – 120
C1	Chest support height	[cm]	52 – 70	77 – 95	89 – 116	92 – 126	108 – 143
B/B1	Pelvic/chest support depth	[cm]	22	25	27	29	35
	Pelvic/chest support perimeter	[cm]	87	97	106	124	144
	Maximum user weight	[kg]	25	40	60	80	95

Technical specifications:

WEIGHT AND DIMENSIONS

Measurement	Unit	Size 1	Size 2	Size 3	Size 4	Size 5
Width	[cm]	59	60	63	66	74
Length	[cm]	73	84	84	91	98
Height	[cm]	54	79	90	96	112
Weight	[kg]	13,5	16,5	18	20,5	23

Documents:

Brochure

User manual

Assembly manual

Declaration of conformity

Certificate

Spare parts
