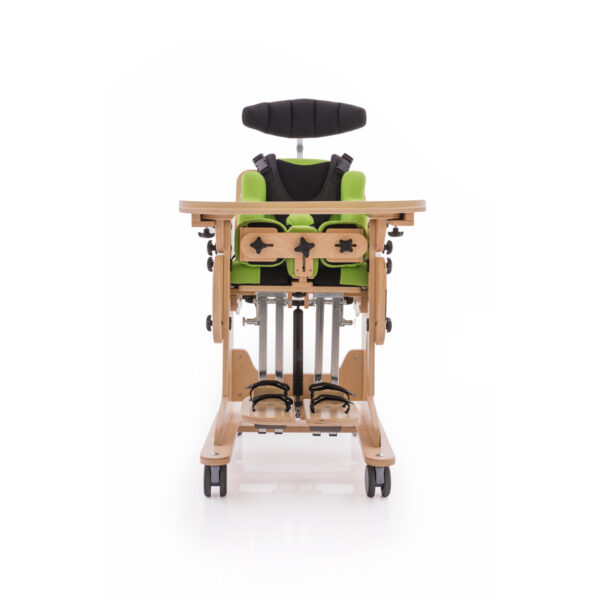

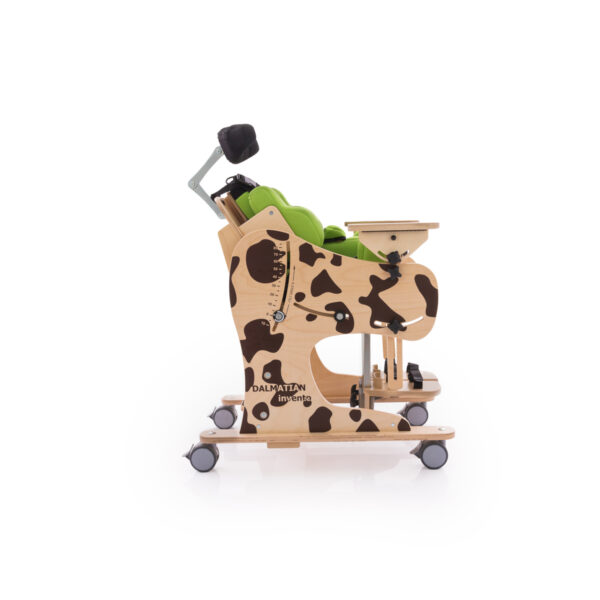

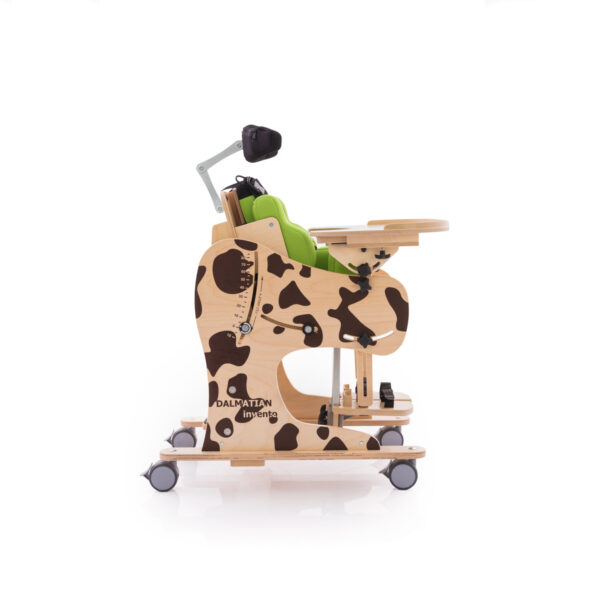

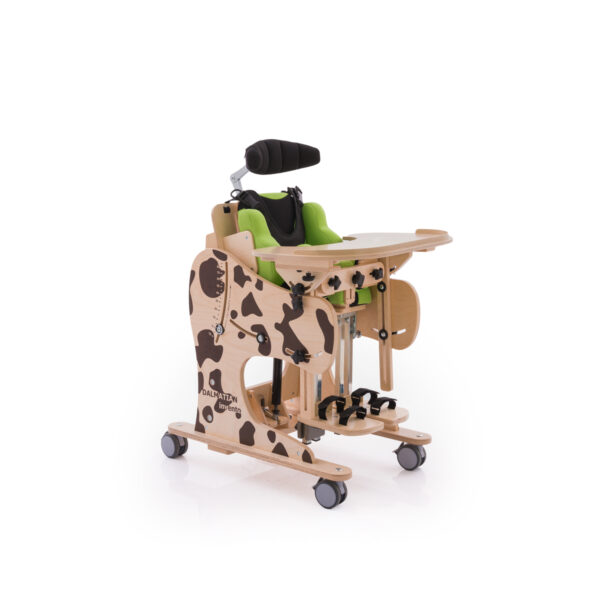

Dalmatian Invento rehabilitation chair Akces-Med

Description

Application:

• Cerebral palsy (CP) – various types and forms.
• Brain and spinal cord injuries of various etiologies with limb paresis, severe balance disturbances, and coordination impairments.
• Demyelinating diseases (multiple sclerosis – MS, amyotrophic lateral sclerosis – ALS, and others).
• Meningocele.
• Muscle diseases with paresis and paralysis (including dystrophy, myasthenia gravis, polymyositis).
• Genetic syndromes with limb paresis.
• Degenerative and metabolic diseases of the nervous system.
• Degenerative and rheumatic joint diseases.
• Other diseases with limb paresis, paralysis, and musculoskeletal impairments.
• After injuries, following traumatic brain injuries or spinal cord injuries with limb paresis and paralysis, particularly with quadriplegia (as part of the rehabilitation process or as permanent orthopedic support).

Features:

• Stable structure – The device ensures adequate stability and safety of user.
• Eco-friendly materials – We use only human and environment friendly materials.
• Pneumatic support – Gas spring helps in proper tilt angle adjustment of the device.
• 3D foot buckles – Footrests with 3D adjustment allow for smooth foot setting in all directions.
• Efficient verticalization – The use in the product of an innovative four-bar linkage, supported with the gas spring, provides efficient lifting of the user into upright standing position.

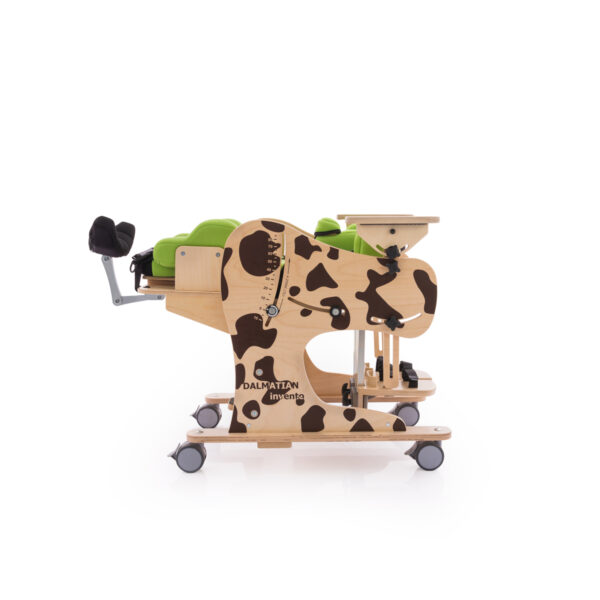

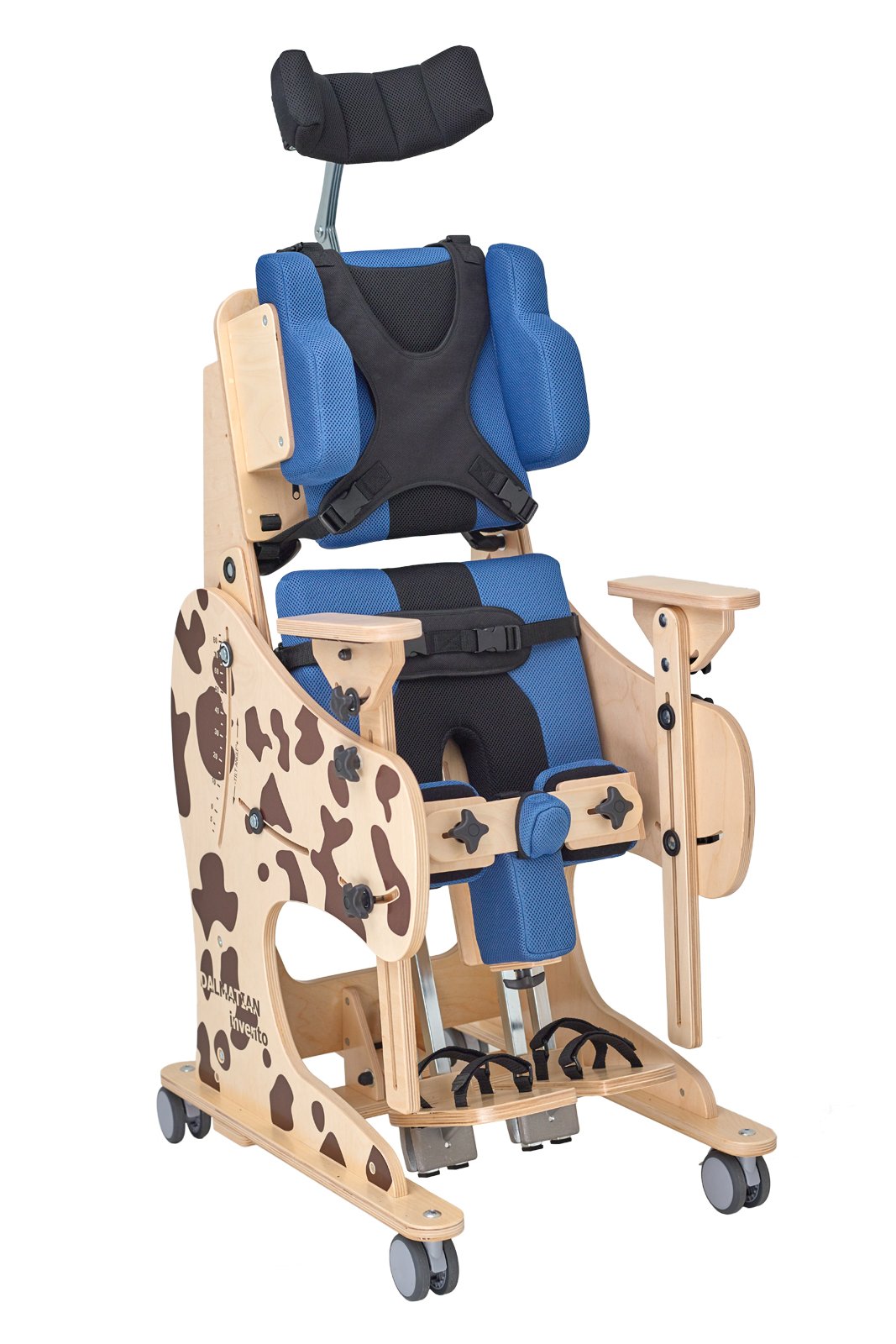

• 3 in 1 – The product has 3 utility functions for use in 1 single device: chair, standing frame and lying function.
• Quiet operation – Using of gas spring or electric actuator in the product ensures quiet operation.
• Spacer upholstery – The device is equipped with breathable, hypoallergenic 3D spacer fabric. Now you can be sure that the skin stays dry for longer!
• Tilt-In-Space – It is possible to change the tilt angle of the seat. Adjustable with a foot and a gas spring, thanks to which the caregiver has free hands during adjustment.
• Easy to use – Intuitive way of adjustment and easy assembly.
• Lightweight construction – The use in the product of an innovative four-bar linkage, supported with the gas spring makes it more lightweight in comparison to similar devices.
• Hold&Pull™ – A special system used in our vests and hip belts. The ergonomic D-shaped grip makes it easy for the user to adjust the product quickly and comfortably. The system is designed also for people with hand dysfunctions.
• 24-month warranty – We offer 24-month warranty on the product. We also provide after sales service.



Standard equipment:

• Innovative quadric mechanism
• Adjustable HexagonPro™ Headrest
• Backrest
• Breathable upholstery ATMO™
• 4 points safety vest (‘Hold & Pull’ system)
• Chest support (size 1, 2)
• Independently adjustable chest and pelvic support (size 3)
• Tray
• Pelvic belt (‘Hold & Pull’ system)
• Forearm supports
• Knee support
• Removable and adjustable abduction block
• Deep adjustable seat
• Gas spring
• Independently adjustable footrest
• Frame with castors and brakes

Accessories:

Thigh abduction belts	Wheel with brake	Side supports (size 1,2)	Foot and ankle stabilizing sandals

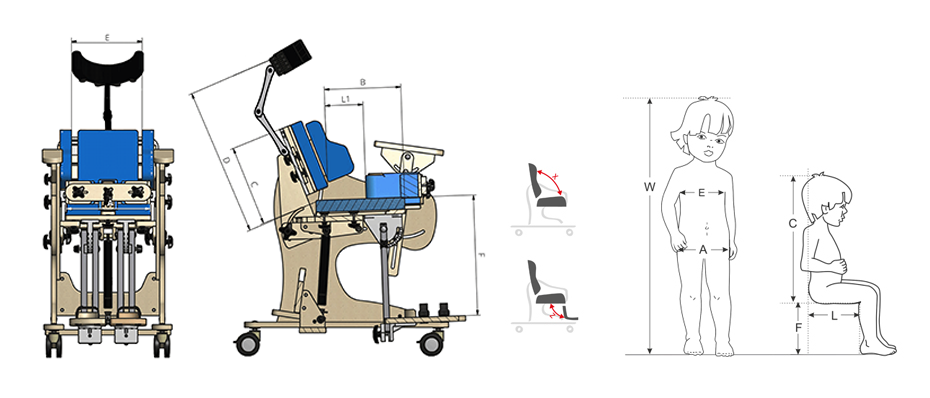

Available sizes:

Symbol	Measurement	Unit	Size 1	Size 2	Size 3
W	Indicative user height	[cm]	< 100	80 – 130	100 – 165
A	Seat width	[cm]	33	36	45
L	Seat depth	[cm]	16 – 25	20 – 31	27 – 42
C	Headrest height	[cm]	37 – 52	42 – 53	49 – 64
C1	Backrest height	[cm]	28	35	40
E	Backrest width	[cm]	13 – 23	18 – 26	18 – 32
F	Footrests length	[cm]	15 – 34	15 – 37	15 – 45
	Knee supports spacing	[cm]	18 – 26	21 – 29	25 – 37
	Knee supports height	[cm]	19 – 46	28 – 51	19 – 58
	Footplate length	[cm]	19	22	25
L1	Abduction block adjustment (from backrest)	[cm]	0 – 17	5 – 25	7 – 30
	Tray height	[cm]	67 – 80	74 – 97	95 – 112,5
	Stander tilt angle	[°]	-10 – +85	-10 – +85	-10 – +85
X	Backrest tilt angle	[°]	90 – 180	90 – 180	90 – 180
Z	Footrests tilt angle	[°]	90 – 180	90 – 180	90 – 180
	Maximum user weight	[kg]	25	45	60

Technical specifications:

WEIGHT AND DIMENSIONS

Measurement	Unit	Size 1	Size 2	Size 3
Width	[cm]	46	50	60
Length – chair function	[cm]	70	81	97
Height – chair function	[cm]	96	118	138
Weight	[kg]	22,5	27,5	43
