Lunar standing frame Akces-Med

Description

Application:

• Cerebral palsy (CP) – various types and forms.
• Brain and spinal cord injuries of various etiologies with limb paresis, severe balance disturbances, and coordination impairments.
• Demyelinating diseases (multiple sclerosis – MS, amyotrophic lateral sclerosis – ALS, and others).
• Meningocele.
• Muscle diseases with paresis and paralysis (including dystrophy, myasthenia gravis, polymyositis).
• Genetic syndromes with limb paresis.
• Degenerative and metabolic diseases of the nervous system.
• Degenerative and rheumatic joint diseases.
• Other diseases with limb paresis, paralysis, and musculoskeletal impairments.
• After injuries, following traumatic brain injuries or spinal cord injuries with limb paresis and paralysis, particularly with quadriplegia (as part of the rehabilitation process or as permanent orthopedic support).

Features:

• Smooth and Stepless Adjustment – The product components work together with reduced resistance.
• Increased Durability – Thanks to the smooth and stepless adjustment, the operation of the components is much smoother, resulting in minimizing undesired micro-movements of regulated elements.
• Quiet Operation – Operation between smoothly adjustable elements is significantly quieter compared to standard solutions.
• Stable – The stable base is equipped with wheels with independent brakes, allowing for easy movement of the standing frame between rooms.

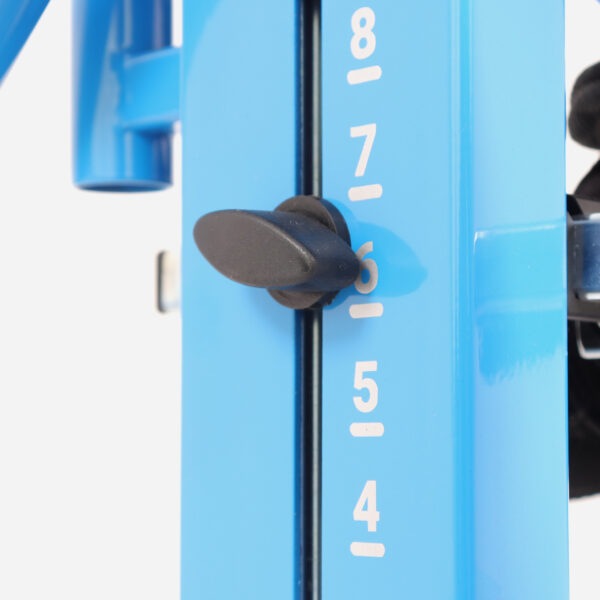

• Ergonomic – The use of ergonomic knobs and position adjuster makes the standing frame extremely simple and intuitive to operate.
• Mobile – The standing frame is lightweight and compact, allowing for use in small spaces.
• 24-month warranty – We offer 24-month warranty on the product. We also provide after sales service.

Standard equipment:

Configuration I

Frame with swivel wheels with brakes

Tilt mechanism

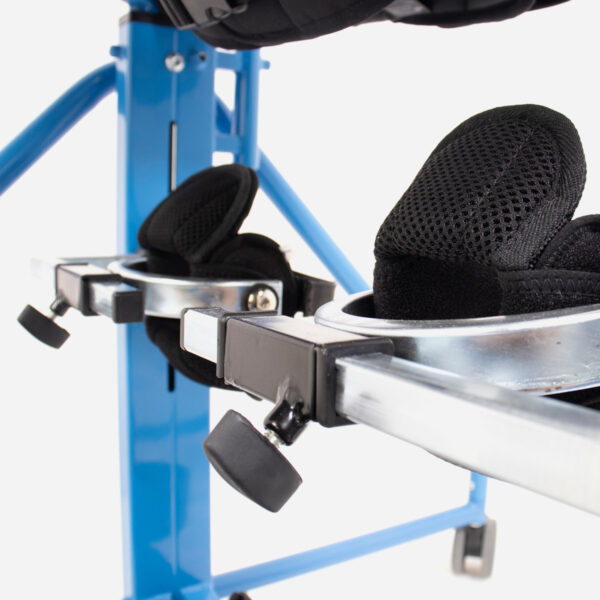

Independently adjustable foot stabilizers with safety straps

Tray

Knee supports with soft knee caps

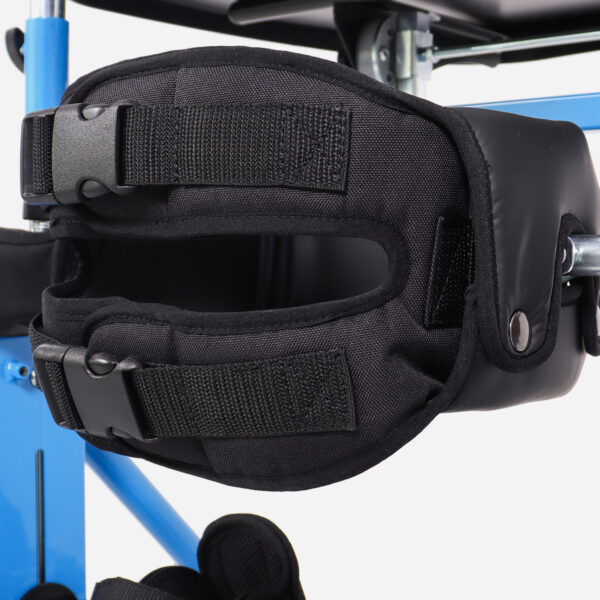

Pelvic belt with pelvic rotation function

Configuration II

Frame with swivel wheels with brakes

Tilt mechanism

Independently adjustable foot stabilizers with safety straps

Tray

Knee supports with soft knee caps

Pelvic belt with pelvic rotation function

Chest belt with chest rotation function

Configuration III

Frame with swivel wheels with brakes

Tilt mechanism

Independently adjustable foot stabilizers with safety straps

Tray

Knee supports with soft knee caps

Pelvic belt with pelvic rotation function

Chest belt with chest rotation function

Frame with VisoPro™ headrest

Accessories:

Castor bumpers                       Hand grip

Available sizes:

Symbol	Measurement	Unit	Size 1	Size 2	Size 3
W	indicative user height	[cm]	75 – 100	95 – 125	120 – 150
A	chest belt height	[cm]	57 – 79	69 – 71	82 – 108
B	pelvic belt height	[cm]	39 – 62	50 – 70	62 – 82
A1/B1	chest / pelvic belt width	[cm]	14 – 22	16 – 22	20 – 26
A2/B2	chest / pelvic belt parimeter	[cm]	55 – 68	60 – 73	67 – 85
C	knee supports width	[cm]	14 – 24	16 – 28	16 – 30
C1	knee supports height	[cm]	12 – 28	24 – 40	32 – 48
D	tray height	[cm]	48 – 75	59 – 87	73 – 104
D1	tray tilt angle	[cm]	-20 – 20	-15 – 15	-10 – 10
E	footer spacing	[cm]	13 – 34	13 – 36	13 – 42
E1	footer length	[cm]	19	23	23
E2	lower limbs spacing	[cm]	for user 75 cm – 50 for user 100 cm – 30	for user 95 cm – 40 for user 125 cm – 30	for user 125 cm – 35 for user 150 cm – 25

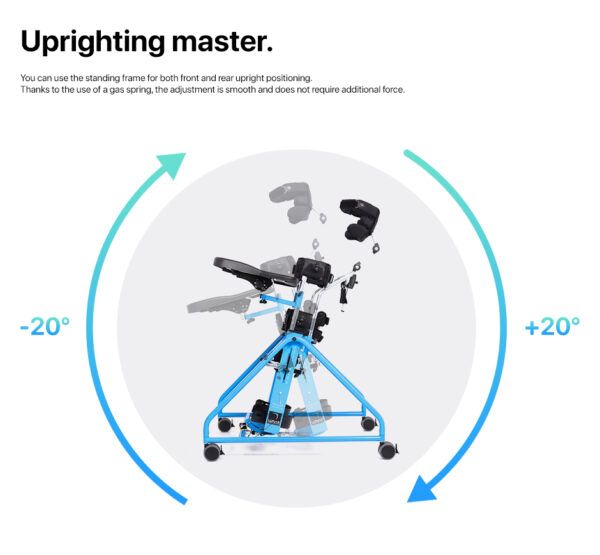

F	tilt angle	[cm]	-20 – 0 0 – 20	-15 – 0 0 – 15	-10 – 0 0 – 10
G	headrest height		70 – 98	86 – 113	105 – 140
	max. user weight	[kg]	35	45	55

Technical specifications:

Documents:

User manual

Declaration of conformity
