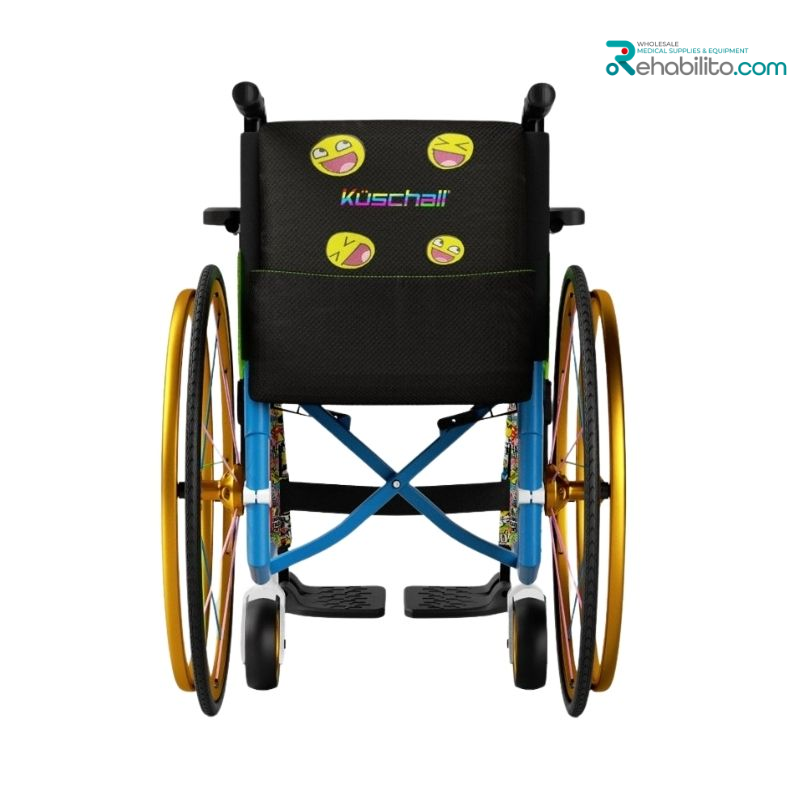

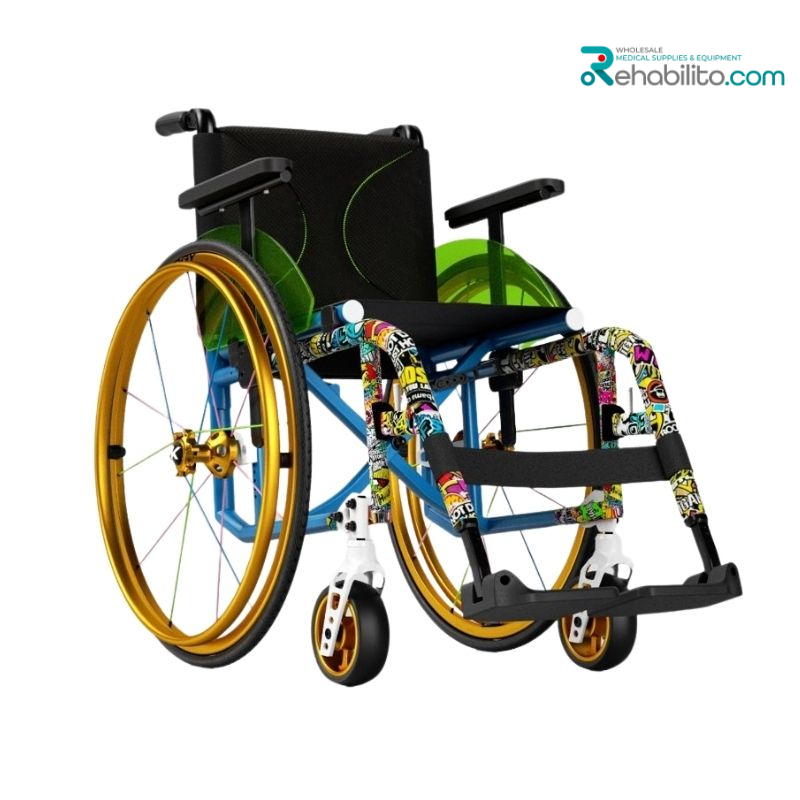

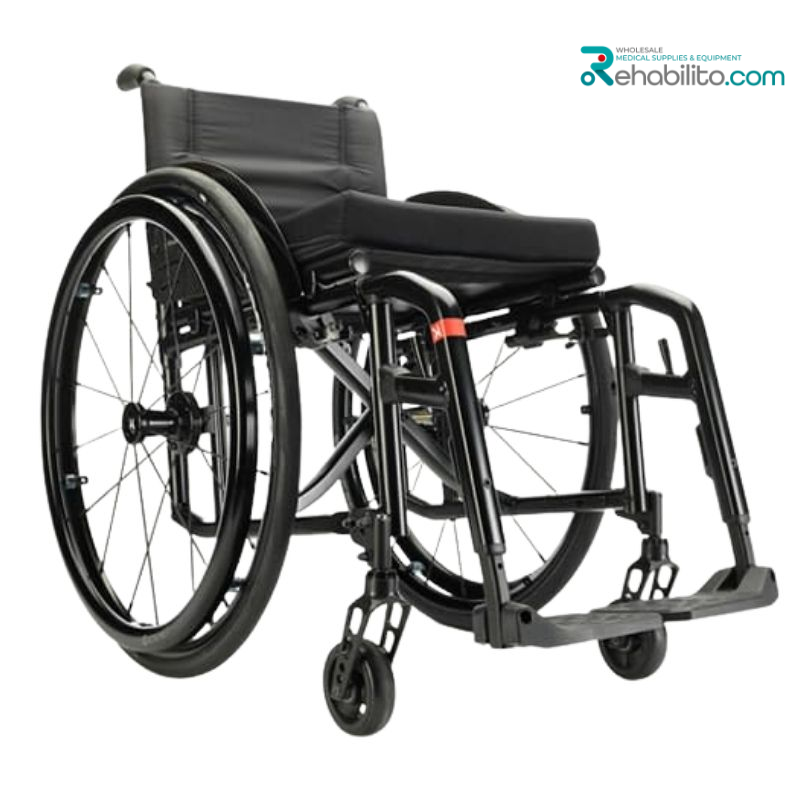

Manual active wheelchair Compact Kuschall
Price range: 2925,00 € through 3115,00 €
Active wheelchair with a folding cross-brace frame, equipped with fixed or removable two-piece footrests.
This is a medical device. Use it according to the instructions for use or the label.
Product Features:

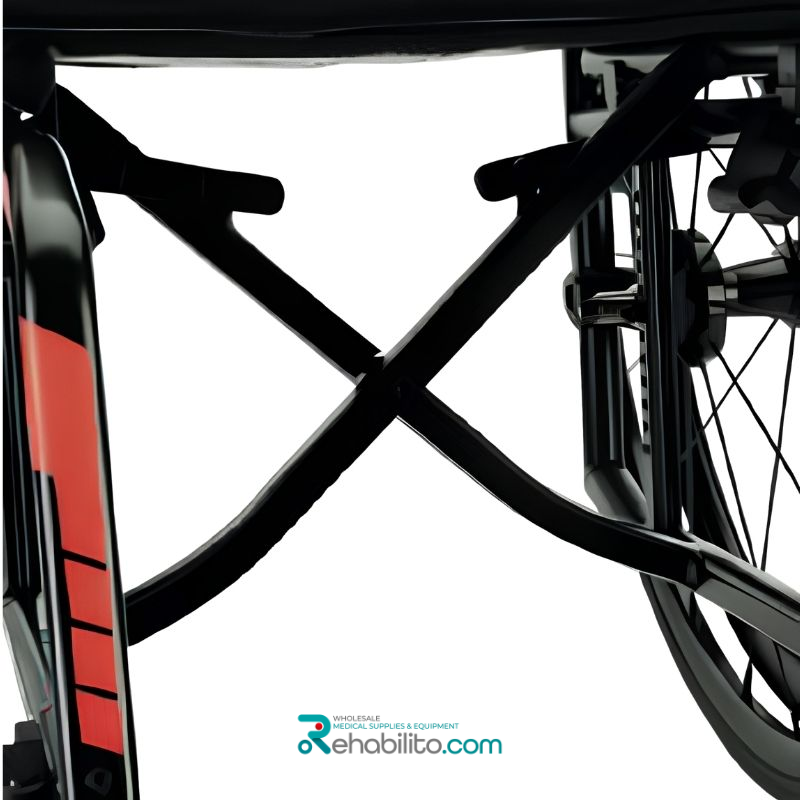

- Cross-brace construction
- One-hand folding mechanism
- Hydroformed, durable frame

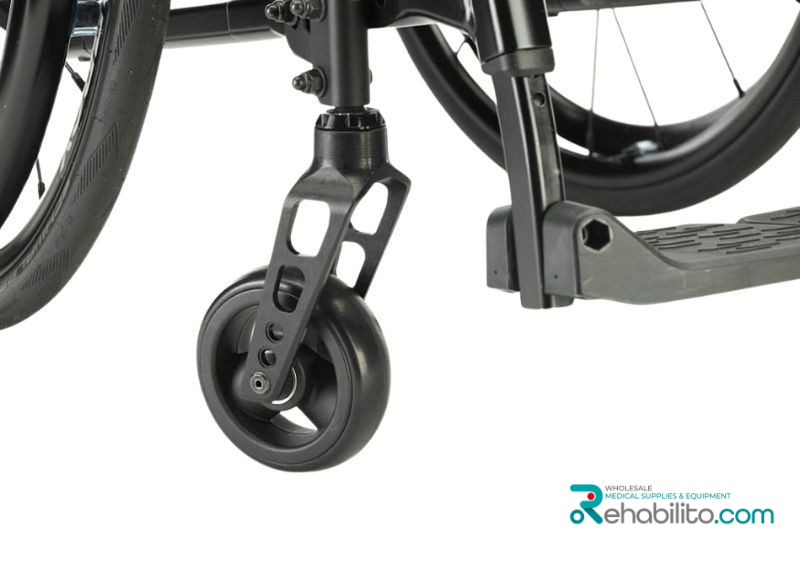

- Intuitive front wheel fork position adjustment
- Ergonomic handle facilitating transfers
- Fixed, swing-away or detachable footrests
- Wide range of adjustment options
- Possibility of configuration for active or stable driving
- Elegant design and easy manoeuvrability

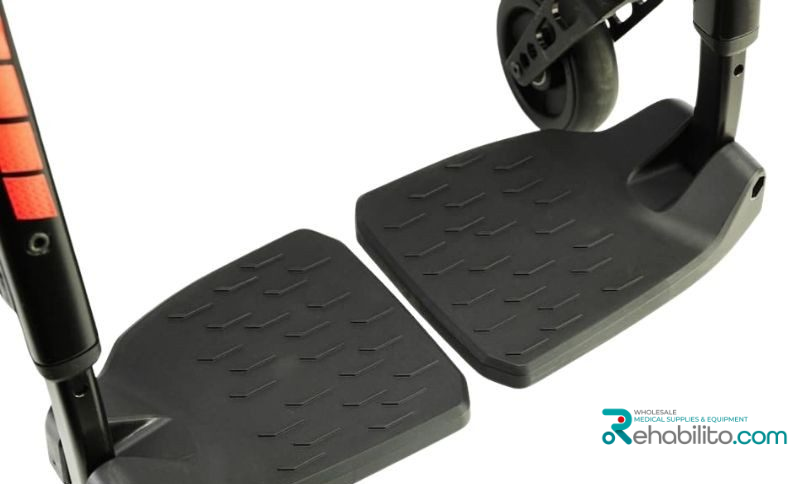

- Non-slip, one-piece footrest plate
Colour Range:
 |
 |
|---|
Indications:
- Paralysis
- Limb injuries or deformities
- Limb loss
- Joint injuries or stiffness
- Other conditions limiting mobility
Standard Equipment:
- Standard swing-away frame
- Fixed active 70° frame
- Standard lightweight backrest upholstery
- Fixed push handles or no push handles
- Standard seat upholstery with one central Velcro strap
- Swing-away footrests
- Folding 2-piece plastic footrest plate
- Calf strap mounted on fork supports
- ECONOMY fixed, straight or removable side guards
- Brakes
Optional Equipment:
- Pressure-relief package
- Lightweight breathable upholstery
- Aero backrest upholstery with strap adjustment
- Height-adjustable push handles
- Folding push handles
- Headrest with lateral adjustment and adjustable side supports
- Removable and swing-away backrest stabilizer
- Standard seat upholstery with two additional side Velcro straps
- Amputation support
- 2-piece carbon footrest plate with angle and depth adjustment
- Calf strap mounted on support
- Heel straps
- Carbon side guards
- Armrests
- One-arm drive system
- Rear wheel extension
- Quick-release axles for tetra users
- Anti-tippers
- Transport set
- Standard seat belt with plastic buckle
- Reflectors mounted on wheels
- Tilt support
- Cane holder
- Transit wheels
- Tray
- Pump
- Tool set
- Wheel bag
- Off-road wheels
- Ramp
Technical Specifications:
| Seat width | 28 – 50 cm (in 2 cm increments) |
| Wheelchair width | Seat width + 18 cm |
| Seat depth | 32 – 50 cm (in 2 cm increments) |
| Front seat-to-floor height | 37 – 53 cm (in 10 cm increments) |
| Rear seat-to-floor height | 36 – 50 cm (in 1 cm increments) |
| Wheelchair height | 66 – 106 cm |
| Folded width | 29 cm |
| Backrest height | 30 – 51 cm (in 1.5 cm increments) |
| Backrest angle | 82 | 86 | 90 | 94 | 98 | 102° |
| Front wheel size | 4 | 5 | 6 | 7″ |
| Rear wheel size | 22 | 24 | 25 | 26″ |
| Wheelchair weight | 10.5 kg (swing-away footrests) 9.6 kg (fixed footrests) |
| Transport weight | 7.8 kg (swing-away footrests) 6.7 kg (fixed footrests) |
| Max. user weight | 130 kg |
*Permissible dimensional tolerance: ±10 mm.
Documents:
The price includes the equipment in the basic version. In case of selecting additional options, please contact our office to determine the details.
| Manufacturer | Invacare |
|---|---|
| Material | Aluminium |
| Front wheels | Solid |
| Rear wheels | Pneumatic |
| Backrest | Fixed, Angle-adjustable, Folding with angle adjustment |
| Product code | 390940 |
