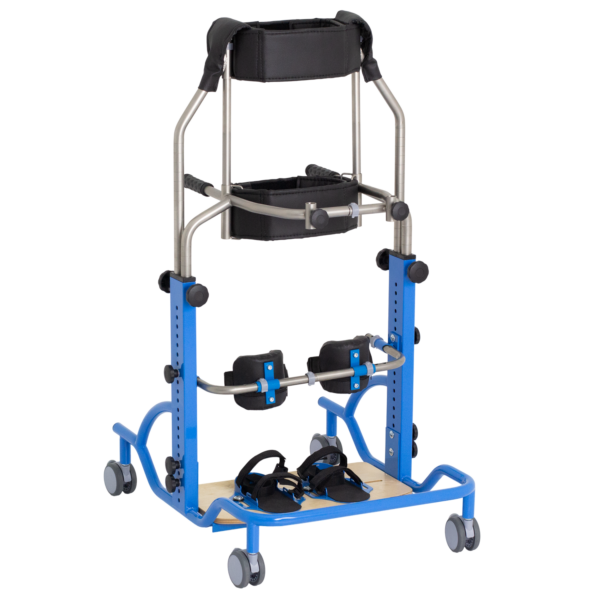

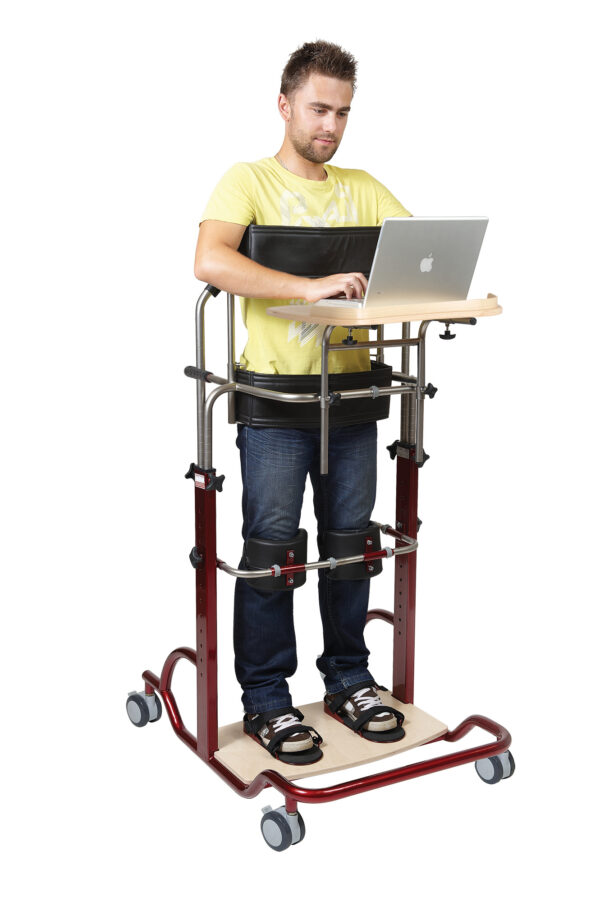

Parapion standing frame Akces-Med

Product code: 855400 ✔ In stock

The PARAPION standing frame is a stable device equipped with belts and stabilizers. This medical device can be used for various daily & rehabilitation activities.

This is a medical device. Use it according to the instructions for use or the label.

Size

Clear

Description Additional information Ask about this product Reviews (0)

Application:

Cerebral palsy (CP) – various types and forms.
Brain and spinal cord injuries of various etiologies with limb paresis, severe balance disturbances, and coordination impairments.
Demyelinating diseases (multiple sclerosis – MS, amyotrophic lateral sclerosis – ALS, and others).
Meningocele.
Muscle diseases with paresis and paralysis (including dystrophy, myasthenia gravis, polymyositis).
Genetic syndromes with limb paresis.
Degenerative and metabolic diseases of the nervous system.
Degenerative and rheumatic joint diseases.
Other diseases with limb paresis, paralysis, and musculoskeletal impairments.
After injuries, following traumatic brain injuries or spinal cord injuries with limb paresis and paralysis, particularly with quadriplegia (as part of the rehabilitation process or as permanent orthopedic support).

Features:

Stable structure – The device ensures adequate stability and safety of user.
Easy to use – Intuitive way of adjustment and easy assembly.
24-month warranty – We offer 24-month warranty on the product. We also provide after sales service.

Standard equipment:

Chest brace with chest belt
Tray with plate (size 1) (In size 2 and 3, the table is available as an above-standard equipment)
Pelvic brace with pelvic belt
Adjustable knee support
Foot plate with foot stabilization

Accessories:

Belt for moving patients	Wheel with brake	Independently adjustable knee supports

Pelvic support	Chest support	Tray

Available sizes:

Symbol	Measurement	Unit	Size 1	Size 2	Size 3
W	Indicative user height	[cm]	90 – 140	110 – 170	140 – 200
A/A₁	Pelvic/chest support width	[cm]	23	31	38
C	Pelvic support height	[cm]	61 – 90	80 – 104	92 – 122
C₁	Chest support height	[cm]	73 – 111	92 – 126	107 – 163
	Pelvic/chest support circumference	[cm]	56 – 76	80 – 102	95 – 124
G	Knee supports width	[cm]	12 – 22	16 – 24	20 – 31
H	Knee supports height	[cm]	18 – 45	24 – 49	31 – 71
I	Footer length	[cm]	23	27	30,5
	Max. user weight	[kg]	30	55	95

Technical specifications:

Measurement	Unit	Size 1	Size 2	Size 3
Width	[cm]	56	56	67
Lenght	[cm]	75	87	93
Height	[cm]	73	92	107
Weight	[kg]	17	21,5	27,5

Documents:

Brochure

User manual

Declaration of conformity

Certificate

Size	1, 2, 3
Colour	Azure, Blue, Red
Manufacturer	Akces-Med
Product code	855400

If you have any questions about this product, please use the contact form below.
