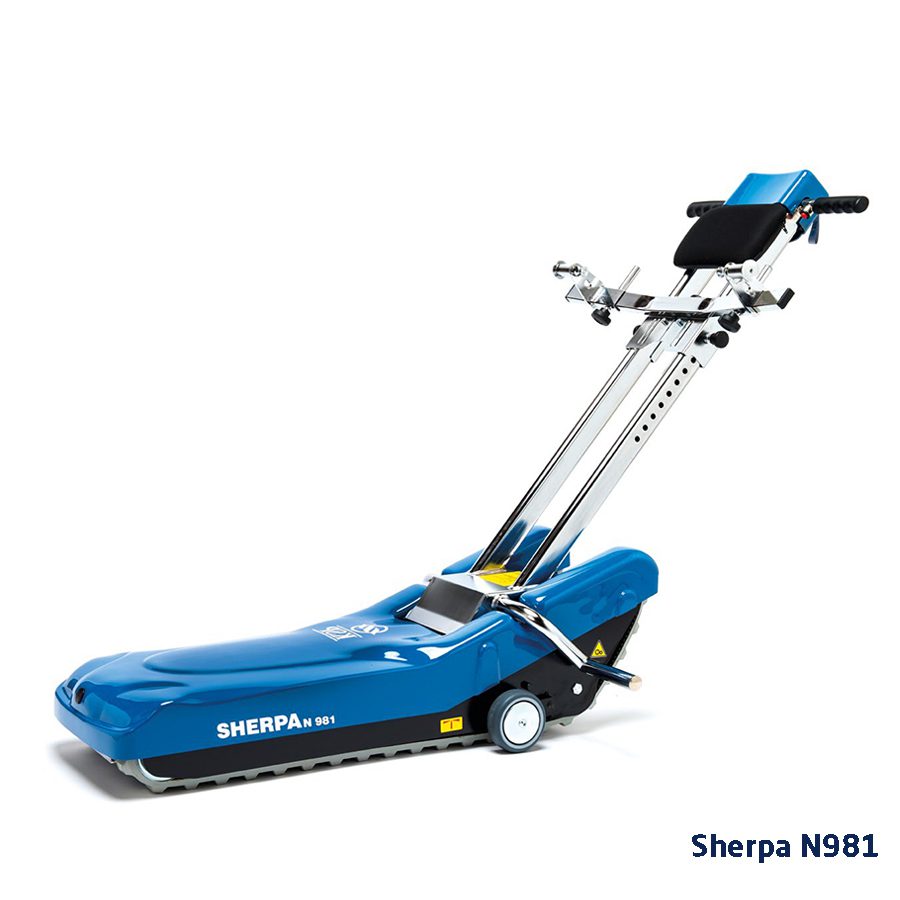

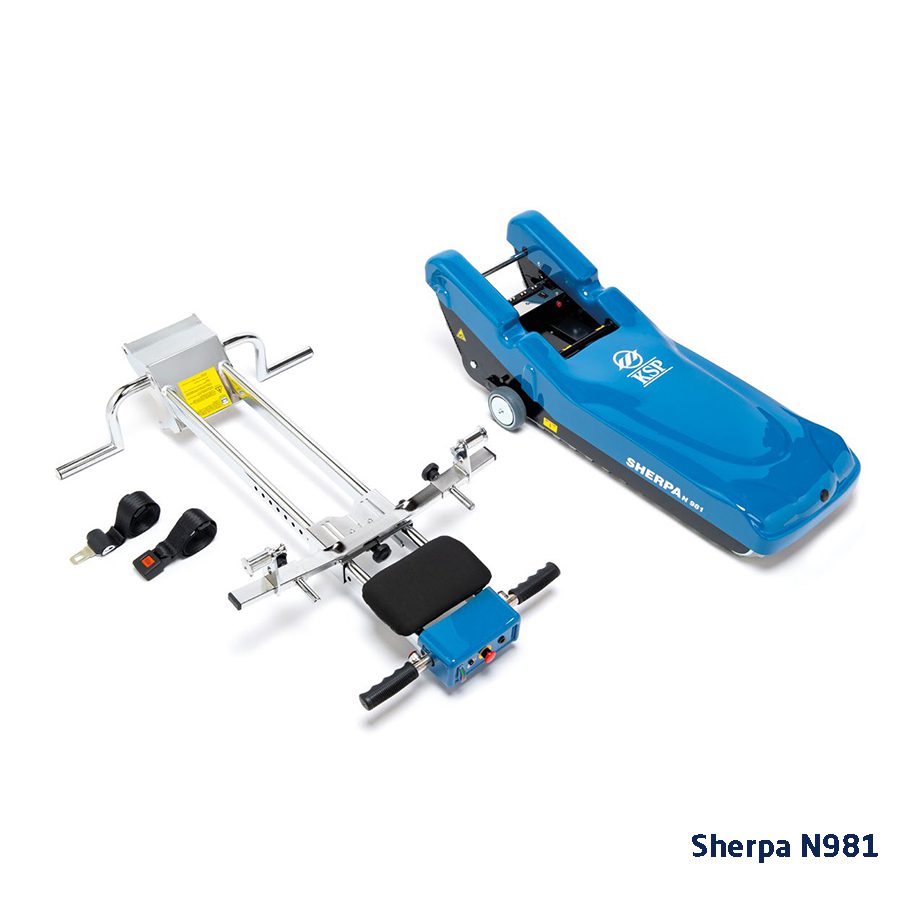

Sherpa Model N981 Wheelchair Tracked Stair Climber Vitea Care
2420,00 €
The entry-level model in the Sherpa stair climber range, featuring a manually tilting attachment arm and a manual tilt function. It has a maximum load capacity of 130 kg.
This is a medical device. Use it according to the instructions for use or the label.
Product Features:
The Sherpa N981 by Vitea Care is a robust and easy-to-use tracked stair climber designed to safely transport wheelchair users up and down stairs. Equipped with a manually tilting attachment arm and a manual tilt function, it offers easy manoeuvrability on flat surfaces. Stair climbers from the Sherpa range are compatible with most standard, manual, transport, and powered wheelchairs.
Standard equipment:
- Audible warning system
- Emergency stop button
- Safety belt
- Front and rear LED lights
- Steering handlebar
- Battery charger
- Intuitive control panel
- Control button on the drive unit for operation when the attachment arm is detached
- Dual locking mechanism for the attachment arm
- Fixed headrest
Optional equipment:
- Additional short ramps (with wheels)
- XL wheelchair adapter
- Loading ramps
- Backrest locking handle
Technical specifications:
| Specification | N981 | N983 | N986 | N988 | N989TM |
|---|---|---|---|---|---|
| Base/drive unit weight | 41 kg | 41,5 kg | 44,5 kg | 45,5 kg | 46,5 kg |
| Steering handle weight | 10 kg | 12 kg | 12 kg | 14 kg | 14,5 kg |
| Ramp weight | – | – | – | – | 13 kg |
| Total weight | 51 kg | 53,5 kg | 56,5 kg | 59,5 kg | 74 kg |
| Compatibility with stroller wheelchairs | – | – | – | – | YES |
| Compatibility with power wheelchairs | – | – | – | – | YES |
| Motor | 220 W | 220 W | 200 W | 220 W | 200 W |
| Battery | 2x12V 12Ah | 2x12V 12Ah | 2x12V 12Ah | 2x12V 12Ah | 2x12V 12Ah |
| Noise level | < 80 dBA | < 80 dBA | < 80 dBA | < 80 dBA | < 80 dBA |
| Power consumption during charging | 75 W | 75 W | 75 W | 75 W | 75 W |
| Rated voltage | 220 V AC | 220 V AC | 220 V AC | 220 V AC | 220 V AC |
| Maximum step height | 24,5 cm | 23 cm | 23 cm | 23 cm | 23 cm |
| Minimum tread depth | max step height x 1,43 | max step height x 1,43 | max step height x 1,43 | max step height x 1,43 | max step height x 1,43 |
| Minimum manoeuvring space | 97 × 97 cm | 97 × 97 cm | 97 × 97 cm | 90 × 95 cm | 120 × 120 cm |
| Minimum staircase width | 72 cm | 72 cm | 72 cm | 72 cm | 120 cm |
| Maximum load capacity | 130 kg | 130 kg | 150 kg | 130 kg | 150 kg |
| Range on a fully charged battery | 45 floors (630 steps) | 45 floors (630 steps) | 35 floors (490 steps) | 40 floors (560 steps) | 35 floors (490 steps) |
| Battery reserve at low charge | 5 floors (70 steps) | 5 floors (70 steps) | 3 floors (21 steps) | 4 floors (56 steps) | 3 floors (42 steps) |
| Speed on flat surface (unloaded) | 5,5 m/min | 5,5 m/min | 5,5 m/min | 5,5 m/min | 5,5 m/min |
| Speed on flat surface (loaded) | 3 m/min | 3 m/min | 3 m/min | 3 m/min | 3 m/min |
| Maximum operating angle | 35° | 35° | 35° | 35° | 35° |
Documents:
To select the appropriate stair climber for your manual wheelchair, please contact our office.
| Colour | Blue |
|---|---|
| Manufacturer | Vitea Care, Mdh |
| Product code | 383380 |
