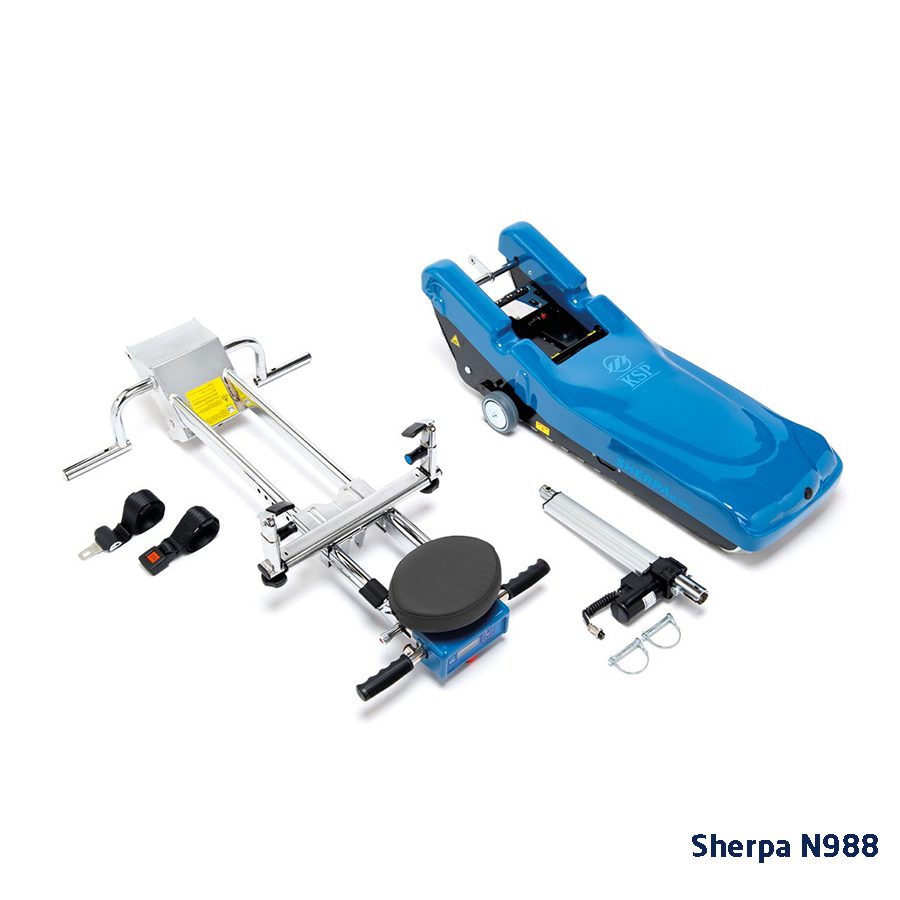

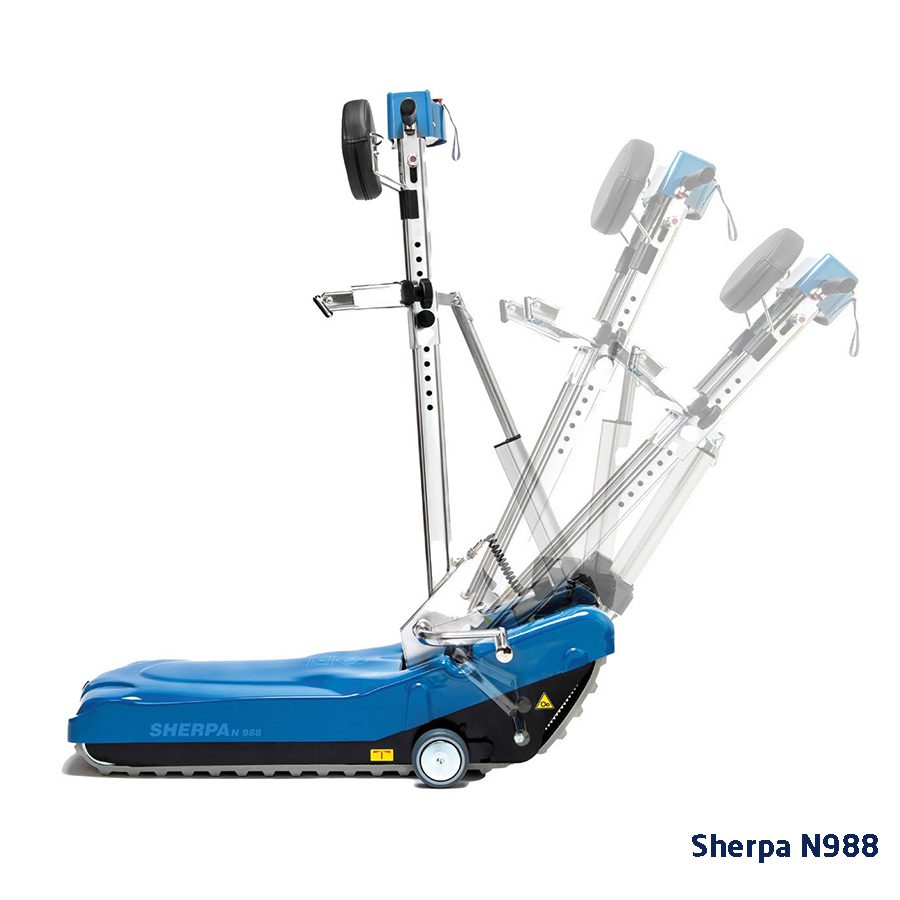

Sherpa Model N988 Wheelchair Tracked Stair Climber Vitea Care
3525,00 €
The Sherpa family tracked stair climber features an electrically operated wheelchair securing arm, an LCD control panel, and an electrically tilting drive base for easier maneuvering. The device has a maximum load capacity of 130 kg.
This is a medical device. Use it according to the instructions for use or the label.
Product Features:
Standard equipment:
- Electrically tilting wheelchair securing arm
- Control panels with display
- Electrically tilting drive base
- Height-adjustable headrest
- Adjustable handles
- Foldable rear wheel locks
- Warning system with audible alarm
- Safety button
- Safety belt
- Front and rear LED lights
- Tiller with handlebar
- Battery charger
- Emergency manual crank
- Intuitive control panel with LCD display
- Control button on the drive base for operation when the arm is detached
- Magnetic key (ignition key/socket)
- Two locking pins for the tiller actuator
- Height-adjustable headrest
- Control buttons
- Tiller actuator
Optional equipment:
- Additional short ramps (with wheels)
- XL wheelchair adapter
- Loading ramps
- Backrest locking bracket
- Telescopic adapter
Technical specifications:
| Specification | N981 | N983 | N986 | N988 | N989TM |
|---|---|---|---|---|---|
| Base/drive unit weight | 41 kg | 41,5 kg | 44,5 kg | 45,5 kg | 46,5 kg |
| Steering handle weight | 10 kg | 12 kg | 12 kg | 14 kg | 14,5 kg |
| Ramp weight | – | – | – | – | 13 kg |
| Total weight | 51 kg | 53,5 kg | 56,5 kg | 59,5 kg | 74 kg |
| Compatibility with stroller wheelchairs | – | – | – | – | YES |
| Compatibility with power wheelchairs | – | – | – | – | YES |
| Motor | 220 W | 220 W | 200 W | 220 W | 200 W |
| Battery | 2x12V 12Ah | 2x12V 12Ah | 2x12V 12Ah | 2x12V 12Ah | 2x12V 12Ah |
| Noise level | < 80 dBA | < 80 dBA | < 80 dBA | < 80 dBA | < 80 dBA |
| Power consumption during charging | 75 W | 75 W | 75 W | 75 W | 75 W |
| Rated voltage | 220 V AC | 220 V AC | 220 V AC | 220 V AC | 220 V AC |

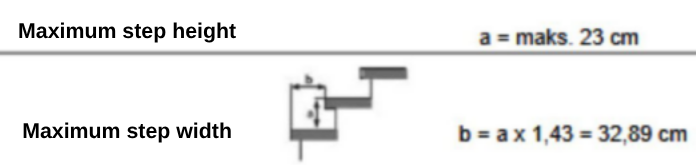

| Maximum step height | 24,5 cm | 23 cm | 23 cm | 23 cm | 23 cm |
| Minimum tread depth | max step height x 1,43 | max step height x 1,43 | max step height x 1,43 | max step height x 1,43 | max step height x 1,43 |
| Minimum manoeuvring space | 97 × 97 cm | 97 × 97 cm | 97 × 97 cm | 90 × 95 cm | 120 × 120 cm |
| Minimum staircase width | 72 cm | 72 cm | 72 cm | 72 cm | 120 cm |
| Maximum load capacity | 130 kg | 130 kg | 150 kg | 130 kg | 150 kg |
| Range on a fully charged battery | 45 floors (630 steps) | 45 floors (630 steps) | 35 floors (490 steps) | 40 floors (560 steps) | 35 floors (490 steps) |
| Battery reserve at low charge | 5 floors (70 steps) | 5 floors (70 steps) | 3 floors (21 steps) | 4 floors (56 steps) | 3 floors (42 steps) |
| Speed on flat surface (unloaded) | 5,5 m/min | 5,5 m/min | 5,5 m/min | 5,5 m/min | 5,5 m/min |
| Speed on flat surface (loaded) | 3 m/min | 3 m/min | 3 m/min | 3 m/min | 3 m/min |
| Maximum operating angle | 35° | 35° | 35° | 35° | 35° |
Documents:
To select the appropriate stair climber for your manual wheelchair, please contact our office.
| Manufacturer | Vitea Care, Mdh |
|---|---|
| Colour | Blue |
| Load capacity | 130 kg |
| Product code | 384040 |
