Yack N971 stair climber with seat Vitea Care
Price range: 3260,00 € through 3790,00 €
The stair climber with seat provides safe stair navigation both upwards and downwards.
- Description
- Additional information
- Reviews (0)
Description
Product Description:

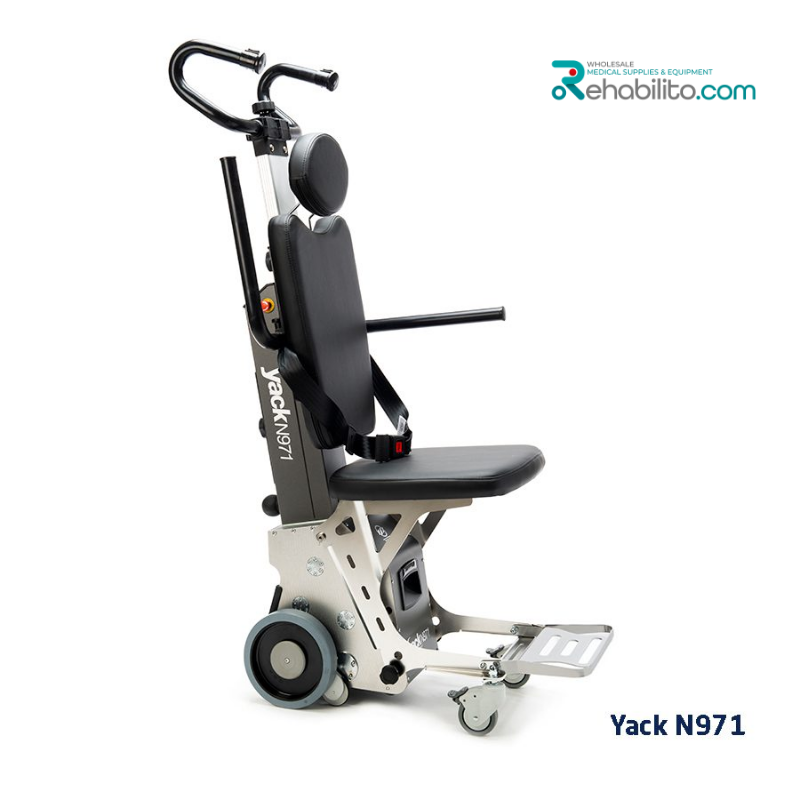

The Vitea Care Yack N971 stair climber with seat is a practical solution for people facing architectural barriers, providing safe stair navigation both upwards and downwards. The device is designed for use in limited maneuvering spaces, as well as on spiral and winding staircases.

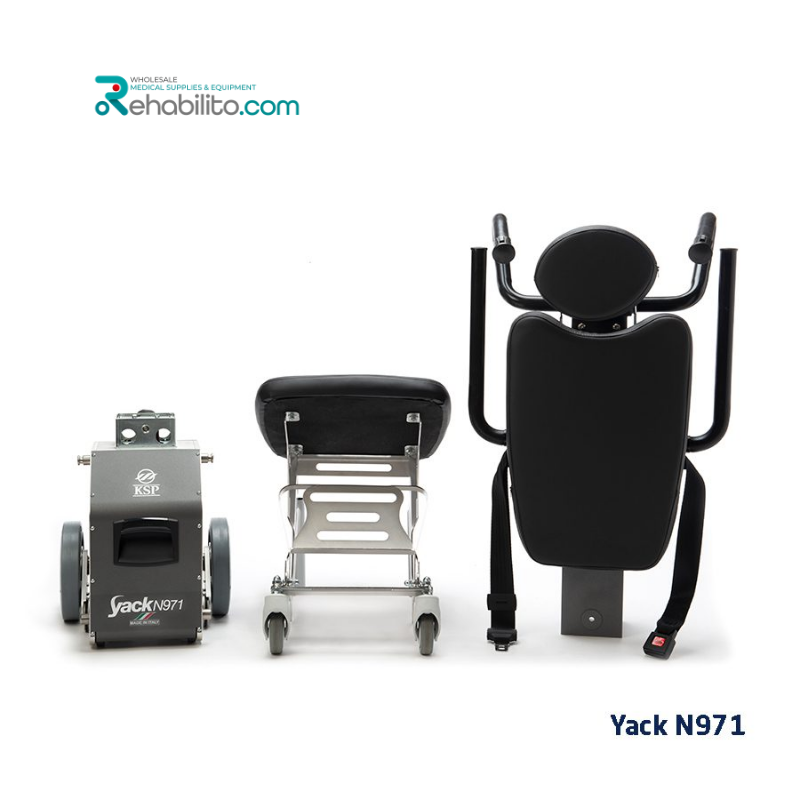

Standard Equipment:
- Height-adjustable seat with armrests
- Height-adjustable and removable headrest
- Seat locking levers
- Support bar with backrest
- Safety belt
- Height- and angle-adjustable handles for the attendant
- Battery set
- Battery charger
- Display indicating the correct tilt angle
- Footrest
- Key
- Safety button
Optional Equipment:
- Guide column
- Loading rails
Control Panel:
- LCD display
- Ignition key slot
- Menu button
- Button for reducing stair climbing/descent speed
- Power and alarm LED indicator
- Button for increasing stair climbing/descent speed
- Button for switching between step-by-step and continuous operation modes
- Emergency stop button
Versions:
| N971 | N972 | N973 |
|---|---|---|
 |
 |
 |
Technical Specifications – N971 Model Variants:
| Specification | N971H1* | N971H* |
|---|---|---|
| Machine body weight [kg] | 23.5 | 25 |
| Tiller weight [kg] | 7.5 | |
| Seat weight including footrest [kg] | 5.7 | 6 |
| Rear backrest weight [kg] | 3.5 | |
| Ramp weight [kg] | – | |
| Total weight with/without batteries [kg] | 45/40.5 | 46/41.5 |
| Depth [cm] | 57** | |
| Width [cm] | 51 | |
| Minimum height (with lowered tiller) [cm] | 121 | 124 |
| Maximum height (with raised tiller) [cm] | 163 | 166 |
| Minimum maneuvering space [cm] | 70 × 70 | |
| Minimum stair width [cm] | 80 | |
| Maximum step height [cm] | 24 | 26 |

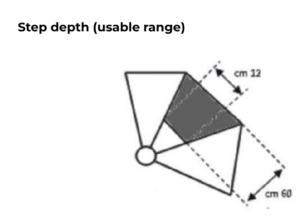

| Minimum step depth | 12 | |
| Maximum load capacity [kg] | 130 | 120 |
| Battery capacity (after full charge) [steps] | 400 | 300 |
| Noise level [dB(A)] | < 80 | |
| Motor | 220 W | |
| Battery | 2 × 12 V 5 Ah | |
| Rated voltage | 220 V AC | |
| Power consumption during charging | 50 W | |
*Models N971H1 and N971H are available upon request – please contact our office before purchase for detailed information.
Technical Specifications – Basic Models:
| Specification | N971 | N972 | N973 |
|---|---|---|---|
| Machine body weight [kg] | 22.5 | ||
| Tiller weight [kg] | 7.5 | ||
| Seat weight including footrest [kg] | 5.5 | – | – |
| Rear backrest weight [kg] | 3.5 | – | – |
| Ramp weight [kg] | – | 4 | – |
| Total weight with/without batteries [kg] | 44/39.5 | 41.5/37 | 35.2/30.7 |
| Depth [cm] | 57** | 41 | 34 |
| Width [cm] | 51 | 53–70 | 33 |
| Minimum height (with lowered tiller) [cm] | 118 | ||
| Maximum height (with raised tiller) [cm] | 160 | ||
| Minimum maneuvering space [cm] | 70 × 70 | 80 × 80 | 80 × 80 |
| Minimum stair width [cm] | 80 | 90 | 90 |
| Maximum step height [cm] | 21 | ||
| Minimum step depth | 12 | ||
| Maximum load capacity [kg] | 130 | ||
| Battery capacity (after full charge) [steps] | 500 | ||
| Noise level [dB(A)] | < 80 | ||
| Motor | 220 W | ||
| Battery | 2 × 12 V 5 Ah | ||
| Rated voltage | 220 V AC | ||
| Power consumption during charging | 50 W | ||
**Depth with the footrest unfolded – 76 cm
Documents:
Additional information
| Colour | Black, Grey |
|---|---|
| Manufacturer | |
| Model | N971, N971H1, N971H |
