Yack N973 stair climber with seat Vitea Care
Price range: 3685,00 € through 4000,00 €
Stair climber with attachment points and a support bar holding the wheelchair together with the user. The device enables safe transportation on stairs both upwards and downwards.
- Description
- Additional information
- Reviews (0)
Description
Product Description:

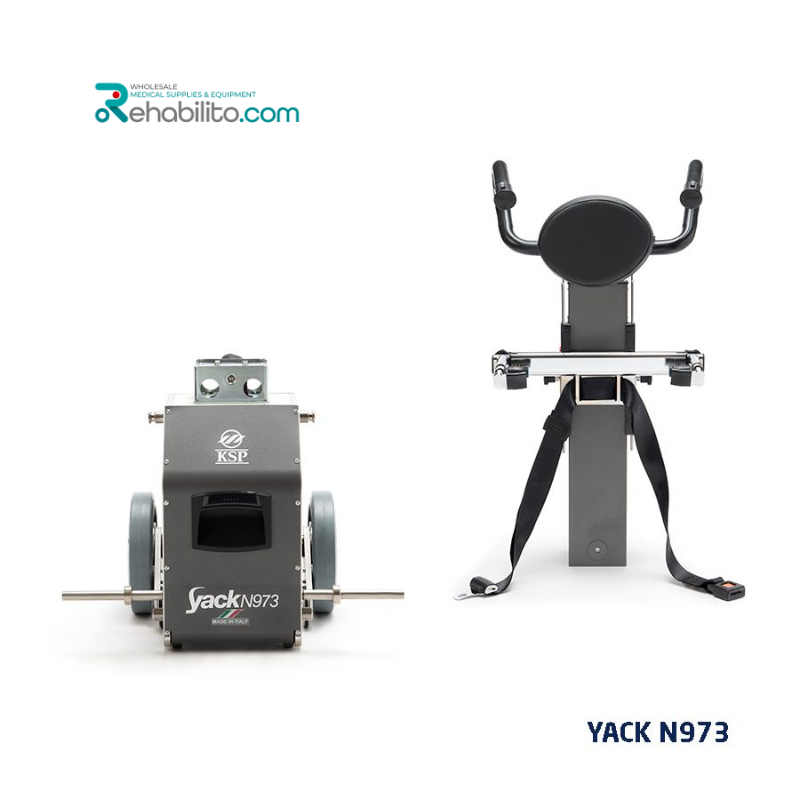

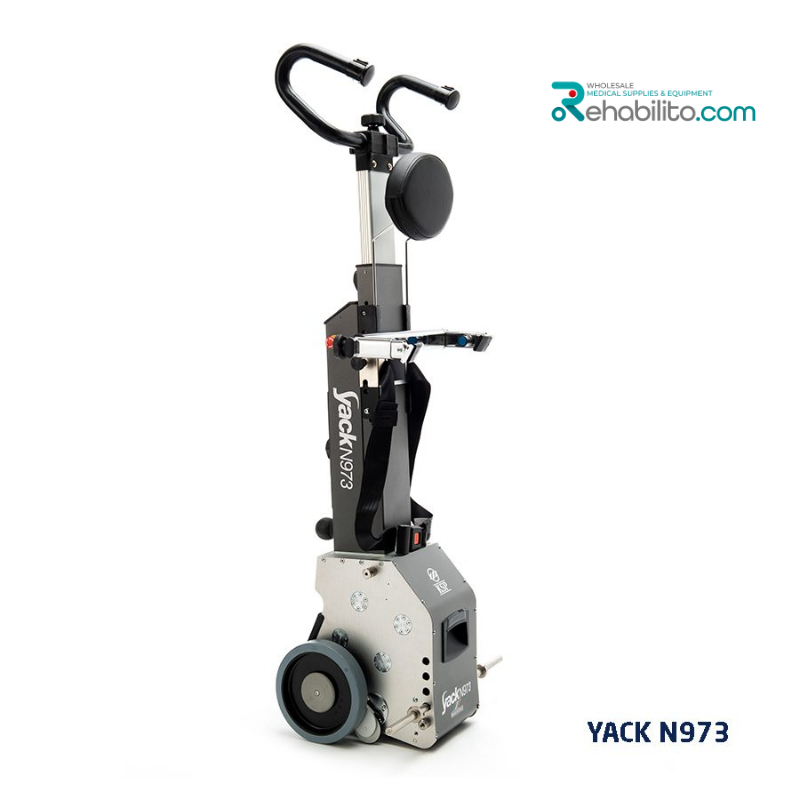

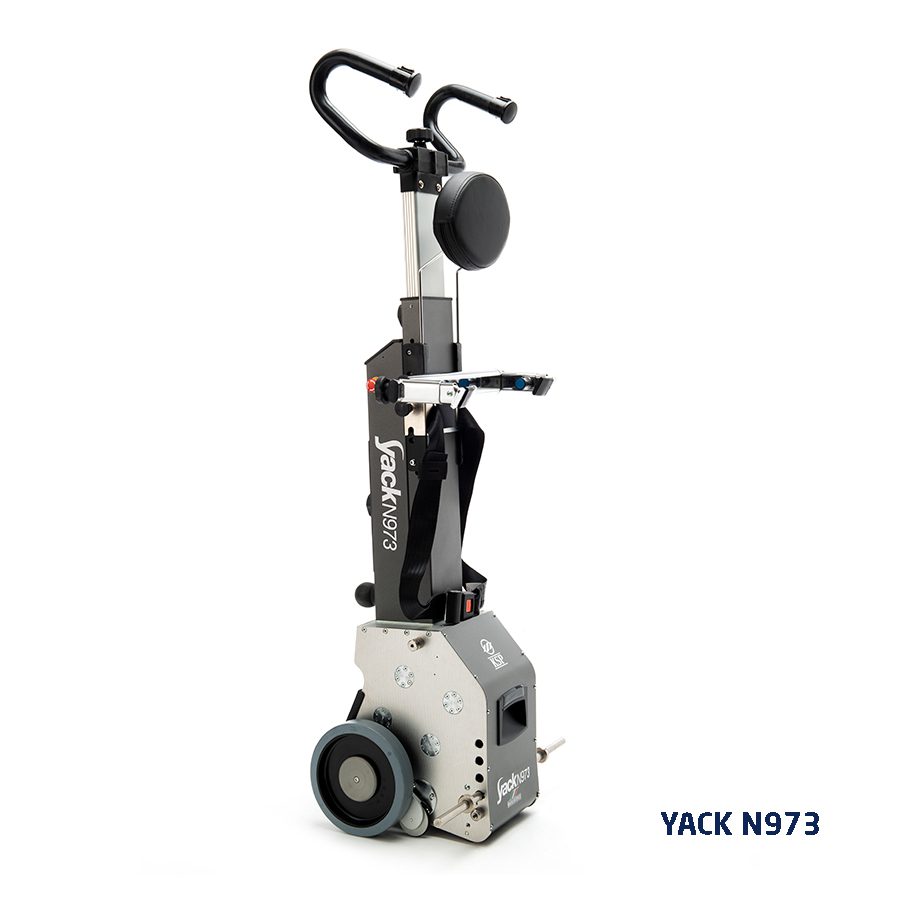

The Vitea Care Yack N973 stair climber is equipped with a wheelchair securing system that attaches the wheelchair to the upper part of the tiller and supports it with a support bar. The device is designed for use in limited maneuvering spaces, as well as on spiral and winding staircases.
Standard Equipment:
- Tiller with locking handles
- Wheelchair attachment system with adjustable grips
- Safety button
- Height-adjustable and removable headrest
- Battery set
- Safety belt
- Height- and angle-adjustable handles for the attendant
- Key
- Display indicating the correct tilt angle
- Battery charger
Optional Equipment:
- Guide column
- Loading rails
Control Panel:
- LCD display
- Ignition key slot
- Menu button
- Button for reducing stair climbing/descent speed
- Power and alarm LED indicator
- Button for increasing stair climbing/descent speed
- Button for switching between step-by-step and continuous operation modes
- Emergency stop button
Versions:

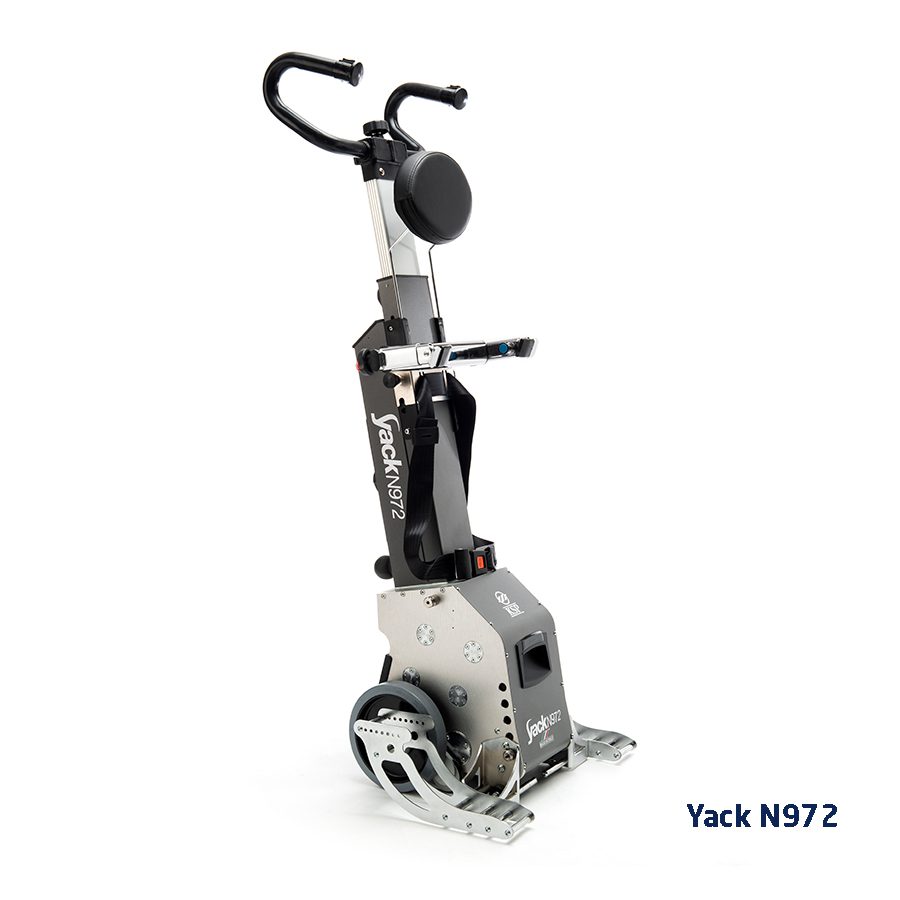

| N971 | N972 | N973 |
|---|---|---|
 |
 |
 |
Technical Specifications – N971 Model Variants:
| Specification | N971H1* | N971H* |
|---|---|---|
| Machine body weight [kg] | 23.5 | 25 |
| Tiller weight [kg] | 7.5 | |
| Seat weight including footrest [kg] | 5.7 | 6 |
| Rear backrest weight [kg] | 3.5 | |
| Ramp weight [kg] | – | |
| Total weight with/without batteries [kg] | 45/40.5 | 46/41.5 |
| Depth [cm] | 57** | |
| Width [cm] | 51 | |
| Minimum height (with lowered tiller) [cm] | 121 | 124 |
| Maximum height (with raised tiller) [cm] | 163 | 166 |
| Minimum maneuvering space [cm] | 70 × 70 | |
| Minimum stair width [cm] | 80 | |
| Maximum step height [cm] | 24 | 26 |
| Minimum step depth | 12 | |
| Maximum load capacity [kg] | 130 | 120 |
| Battery capacity (after full charge) [steps] | 400 | 300 |
| Noise level [dB(A)] | < 80 | |
| Motor | 220 W | |
| Battery | 2 × 12 V 5 Ah | |
| Rated voltage | 220 V AC | |
| Power consumption during charging | 50 W | |
*Models N971H1 and N971H are available upon request – please contact our office before purchase for detailed information.
Technical Specifications – Basic Models:
| Specification | N971 | N972 | N973 |
|---|---|---|---|
| Machine body weight [kg] | 22.5 | ||
| Tiller weight [kg] | 7.5 | ||
| Seat weight including footrest [kg] | 5.5 | – | – |
| Rear backrest weight [kg] | 3.5 | – | – |
| Ramp weight [kg] | – | 4 | – |
| Total weight with/without batteries [kg] | 44/39.5 | 41.5/37 | 35.2/30.7 |
| Depth [cm] | 57** | 41 | 34 |
| Width [cm] | 51 | 53–70 | 33 |
| Minimum height (with lowered tiller) [cm] | 118 | ||
| Maximum height (with raised tiller) [cm] | 160 | ||
| Minimum maneuvering space [cm] | 70 × 70 | 80 × 80 | 80 × 80 |
| Minimum stair width [cm] | 80 | 90 | 90 |
| Maximum step height [cm] | 21 | ||
| Minimum step depth | 12 | ||
| Maximum load capacity [kg] | 130 | ||
| Battery capacity (after full charge) [steps] | 500 | ||
| Noise level [dB(A)] | < 80 | ||
| Motor | 220 W | ||
| Battery | 2 × 12 V 5 Ah | ||
| Rated voltage | 220 V AC | ||
| Power consumption during charging | 50 W | ||
**Depth with the footrest unfolded – 76 cm
Documents:
Additional information
| Colour | Black, Grey |
|---|---|
| Manufacturer | |
| Model | N973, N973H1, N973H |
Only logged in customers who have purchased this product may leave a review.
Related Products

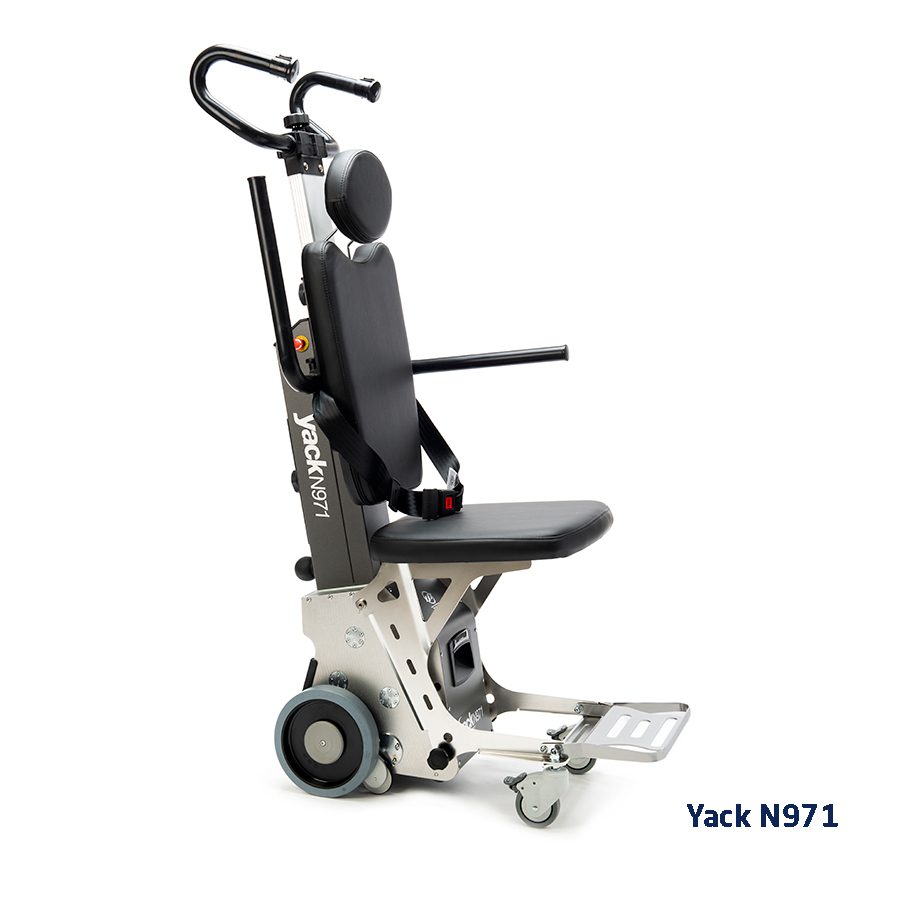

Yack N971 stair climber with seat Vitea Care
